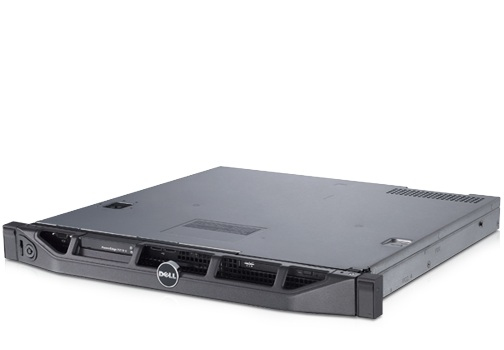

Dell R210 II
Model R210 IIPart no. R210II-BUNEAN 5397063427673
102 specifications
- ProcessorIntel® Xeon® E3 V2 Family
- Memory8 GB
- Storage1 TB
- Processor manufacturerIntel
- Maximum storage capacity6 TB
- On-board graphics card modelNot available
Overview
- Processor
- Intel® Xeon® E3 V2 Family
- Memory
- 8 GB
- Storage
- 1 TB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 6 TB
- On-board graphics card model
- Not available
- Brand
- Dell
- Category
- Server
- Model
- R210 II
- Part numbers
- R210II-BUN, R210-8763, 54356213, 54358493, R210-7150, 56192459 +21 more
- EAN / UPC
- 5397063427673, 5397063652334, 5397063421893, 5397063421886 +6 more
- Also known as
- DELL PowerEdge R210 II server 1 TB Rack Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 8 GB DDR3-SDRAM 250 W
Specifications
102 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1220V2 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C202 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 69 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| Processor code | SR0PH |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Stepping | E1 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 6 TB |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA, Serial ATA II |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | No |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5716 |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 65734 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 42.4 mm |
| Height | 394.3 mm |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200eW |
| Graphics card family | Matrox |
| Supported data transfer rates | 10/100/1000 Mbps |
