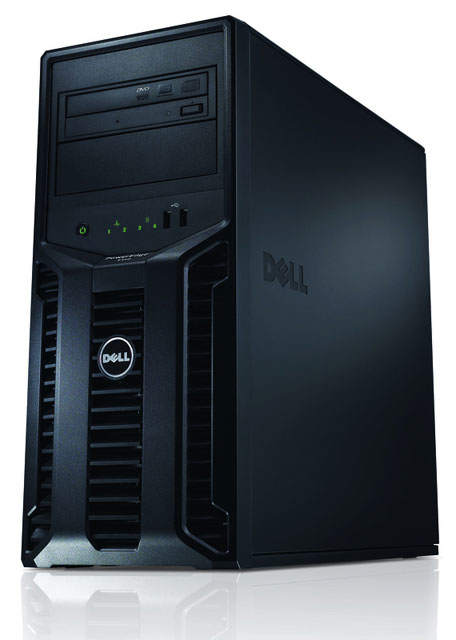

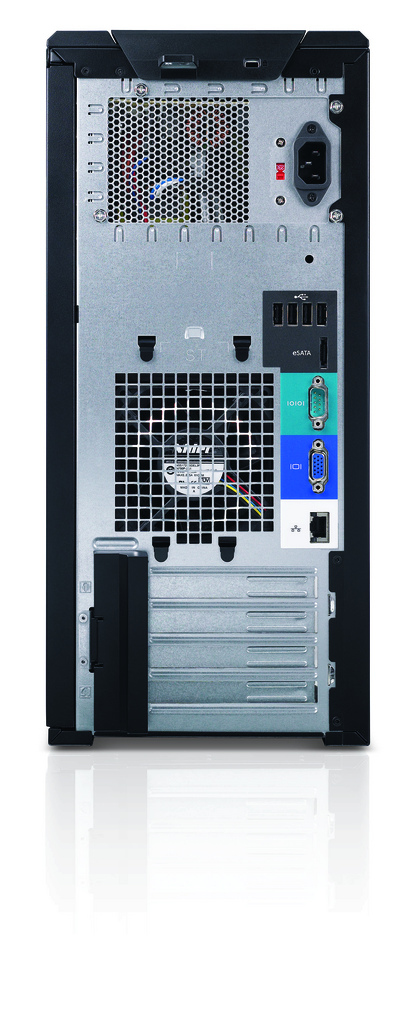

Dell PowerEdge T110
Model PowerEdge T110Part no. 1011024241115
104 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory8 GB
- Storage146 GB
- Processor manufacturerIntel
- Network readyYes
- Ethernet LAN (RJ-45) ports0
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 8 GB
- Storage
- 146 GB
- Processor manufacturer
- Intel
- Network ready
- Yes
- Ethernet LAN (RJ-45) ports
- 0
- Brand
- Dell
- Category
- Server
- Model
- PowerEdge T110
- Part numbers
- 1011024241115, PE-T110-M211, PE-T110-E211, PET110SR17, PET110SR34, PET110SR45 +8 more
- Also known as
- DELL PowerEdge T110 server 146 GB Tower Intel® Xeon® 3000 Sequence X3450 2.66 GHz 8 GB DDR3-SDRAM 305 W
Specifications
104 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | X3450 |
| Processor frequency | 2.66 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 3420 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 2.5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 20 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of Processing Die Transistors | 774 M |
| PCI Express configurations | 1x16, 2x8, 4x4 |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processing Die size | 296 mm² |
| Processor code | SLBLD |
| Processor codename | Lynnfield |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3400 Series |
| Processor socket | LGA 1156 (Socket H) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 72.7 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 4 x 2 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 146 GB |
| Number of HDDs installed | 1 |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Optical drive type | DVD-ROM |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Ethernet LAN | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Small Business Server 2008, Essential Business Server 2008, Server 2008 Foundation R2, Server 2008 SP2, x86/x64, Server 2008 R2, x64, HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux |
| Bundled software | PE T110 Electronic System Documentation OpenManage DVD |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 42929 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 305 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 188.6 mm |
| Depth | 463.8 mm |
| Height | 418.6 mm |
Other features
| Specification | Value |
|---|---|
| CD read speed | 16x |
| Dimensions (WxDxH) | 188.64 x 463.8 x 418.55 mm |
| Graphics card | G200eW |
| I/O ports | 1x eSATA |
