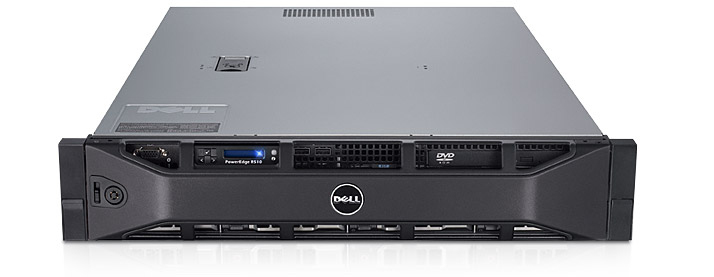

Dell PowerEdge R510

Model PowerEdge R510Part no. 1009566658886

103 specifications

Overview

Brand: Dell
Category: Server
Model: PowerEdge R510
Part numbers: 1009566658886, 13668053, R510-E111
Also known as: DELL PowerEdge R510 server 900 GB Rack (2U) Intel® Xeon® 5000 Sequence E5540 2.53 GHz 4 GB DDR3-SDRAM

103 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5540
Processor frequency	2.53 GHz
Processor boost frequency	2.8 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5500
Memory channels supported by processor	Triple
Number of processors installed	2
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	19
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	144 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	731 M
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Physical Address Extension (PAE)	Yes
Processing Die size	263 mm²
Processor code	SLBF6
Processor codename	Nehalem EP
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	42.5 x 45 mm
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor system type	DP
Processor threads	8
Stepping	D0
Tcase	76 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	8 MB

Specification	Value
Network ready	Yes

Specification	Value
PCI Express x4 slots	3
PCI Express x8 slots	1

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Noise level	42 dB

Specification	Value
Compatible operating systems	Microsoft Windows Small Business Server 2008/2003/ Novell SUSE Linux Enterprise Server 11/10 SP2 Linux Red Hat Enterprise 5.3/4.7 VMware vSphere Version 4.0 VMware ESX v3.5 / ESXi v3.5

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	37104

Specification	Value
Redundant power supply (RPS) support	Yes
Power consumption (typical)	1100 W

Specification	Value
Weight	13.5 kg
