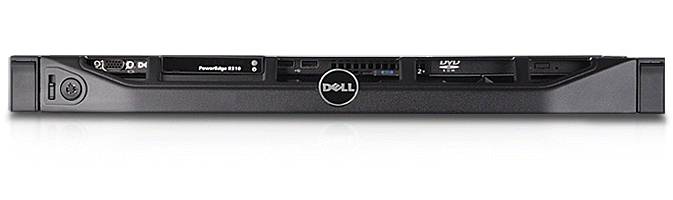

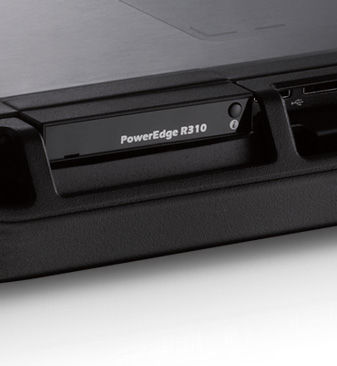

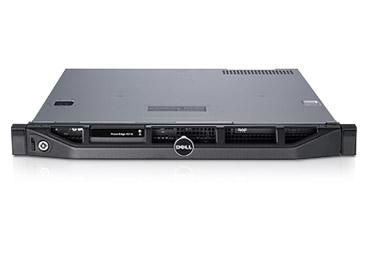

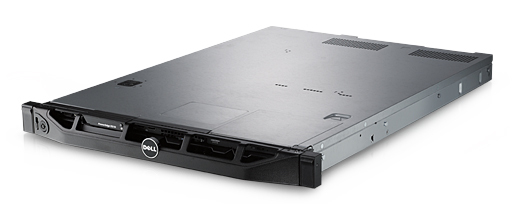

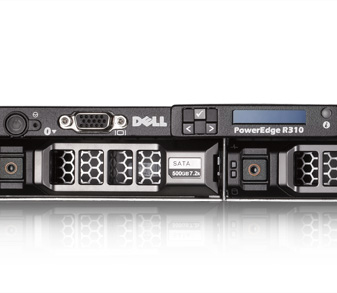

Dell PowerEdge R310

Model PowerEdge R310Part no. PER310SR39

106 specifications

Overview

Brand: Dell
Category: Server
Model: PowerEdge R310
Part numbers: PER310SR39, PER310SR42, 13668043
Also known as: DELL PowerEdge R310 server 1.5 TB Rack (1U) Intel® Xeon® 3000 Sequence X3450 2.66 GHz 8 GB DDR3-SDRAM 350 W

106 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	X3450
Processor frequency	2.66 GHz
Processor boost frequency	3.2 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 3420
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	20
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of Processing Die Transistors	774 M
PCI Express configurations	1x16, 2x8, 4x4
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processing Die size	296 mm²
Processor code	SLBLD
Processor codename	Lynnfield
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 3400 Series
Processor socket	LGA 1156 (Socket H)
Processor threads	8
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	72.7 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Chassis type	Rack (1U)

Specification	Value
Compatible operating systems	Windows Server Novell Linux Solaris10

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	42929

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	1
Power supply	350 W
