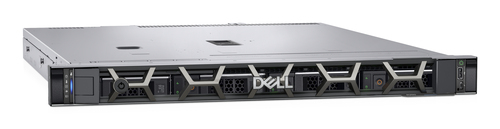

PowerEdge R250
Model PowerEdge R250Part no. R250-FY25Q3-MXEAN 884116465881
62 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage2 TB
- OSNo
- Weight12.5 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- No
- Weight
- 12.5 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- PowerEdge R250
- Part number
- R250-FY25Q3-MX
- EAN / UPC
- 884116465881
- Also known as
- DELL PowerEdge R250 server 2 TB Rack (2U) Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 450 W
Specifications
62 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2336 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory slots | 4x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H355 |
| Hot-Plug support | Yes |
| Internal drive bays | 4 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Basic 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Citrix® Hypervisor Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 450 W |
| Power cable connector 1 | NEMA 5-15P |
| Power cable connector 2 | C13 coupler |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 17 |
| Carbon emissions, energy usage (kg of CO2e) | 1470 |
| Carbon emissions, logistics (kg of CO2e) | 110 |
| Carbon emissions, manufacturing (kg of CO2e) | 505 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 935 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 632 |
| Total carbon footprint (kg of CO2e) | 2100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
| Weight | 12.5 kg |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 3.5" |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512n |
| Data transfer rate | 6 Gbit/s |
