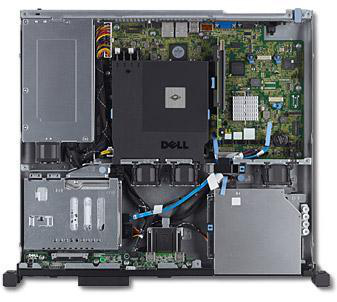

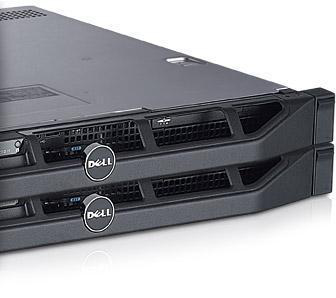

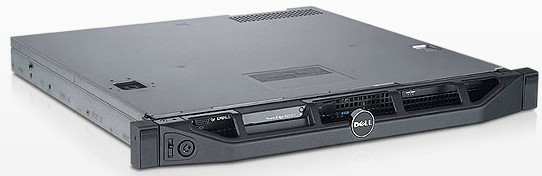

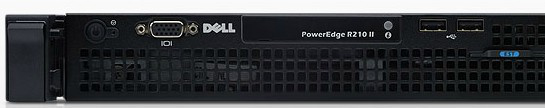

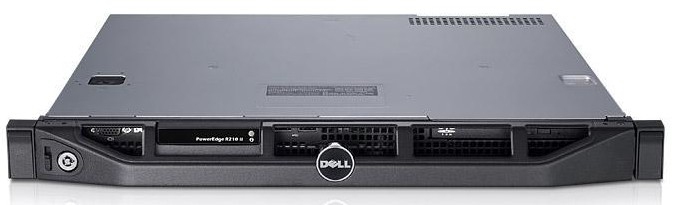

Dell PowerEdge R210 II

Model PowerEdge R210 IIPart no. R210II-E111

109 specifications

Overview

Brand: Dell
Category: Server
Model: PowerEdge R210 II
Part number: R210II-E111
Also known as: DELL PowerEdge R210 II server 292 GB Rack Intel® Xeon® E3 Family E3-1230 3.2 GHz 8 GB DDR3-SDRAM 250 W

109 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1230
Processor frequency	3.2 GHz
Processor boost frequency	3.6 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C202
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	32
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	20
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Processor code	SR00H
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Stepping	D2
Supported instruction sets	AVX, SSE4.1, SSE4.2
Tcase	69.1 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
PCI Express slots version	2.0

Specification	Value
Chassis type	Rack

Specification	Value
Compatible operating systems	Windows Small Business Server 2011 Windows Small Business Server 2008 Microsoft Windows Server 2008 R2 Foundation SP1 Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V) Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Ente

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52271

Specification	Value
Number of power supply units	1
Power supply	250 W

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
