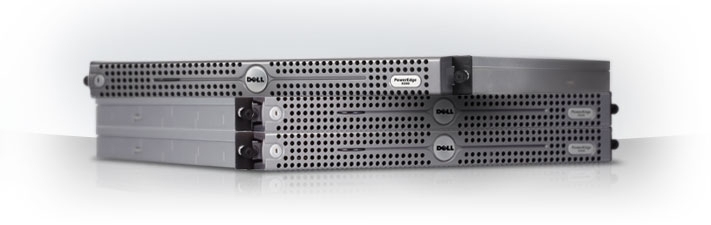

Dell PowerEdge R200
Model PowerEdge R200Part no. PER200-FW-E01
89 specifications
- ProcessorIntel® Xeon®
- Memory2 GB
- Storage1.5 TB
- Processor manufacturerIntel
- Maximum graphics card memory32 MB
- Ethernet LAN (RJ-45) ports0
Overview
- Processor
- Intel® Xeon®
- Memory
- 2 GB
- Storage
- 1.5 TB
- Processor manufacturer
- Intel
- Maximum graphics card memory
- 32 MB
- Ethernet LAN (RJ-45) ports
- 0
- Brand
- Dell
- Category
- Server
- Model
- PowerEdge R200
- Part number
- PER200-FW-E01
- Also known as
- DELL PowerEdge R200 server 1.5 TB Rack (1U) Intel® Xeon® E3110 3 GHz 2 GB DDR2-SDRAM
Specifications
89 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | E3110 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 6 MB |
| Motherboard chipset | Intel® 3200 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 9 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| Processor code | SLAPM |
| Processor codename | Wolfdale |
| Processor core voltage (AC) | 1.225 - 0.956 V |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 3100 Series |
| Processor socket | LGA 775 (Socket T) |
| Processor system type | Up |
| Processor threads | 2 |
| Stepping | C0 |
| Tcase | 72.4 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 1 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.5 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 750 GB |
| HDD interface | Serial ATA |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 32 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI-X slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Bundled software | OpenManage |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 34694 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 4470 mm |
| Depth | 5431 mm |
| Height | 427 mm |
Other features
| Specification | Value |
|---|---|
| Graphics card | ES1000 |
| Drive bays | 2 x 3.5” SATA/SAS |
What people say
Reviews & ratings
Dell PowerEdge R200
No reviews yet
Be the first to tell others how Dell PowerEdge R200 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerEdge R200

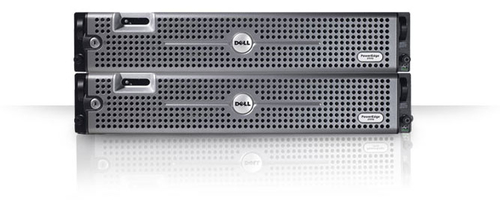

All server comparisons- Dell PowerEdge R200 vsDell PowerEdge 2950Compare specs

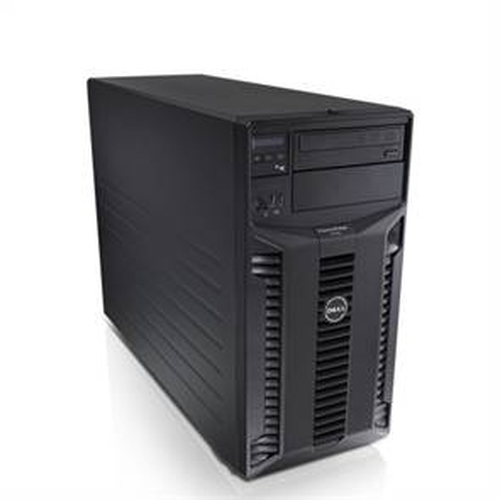

- Dell PowerEdge R200 vsDell PowerEdge T410Compare specs

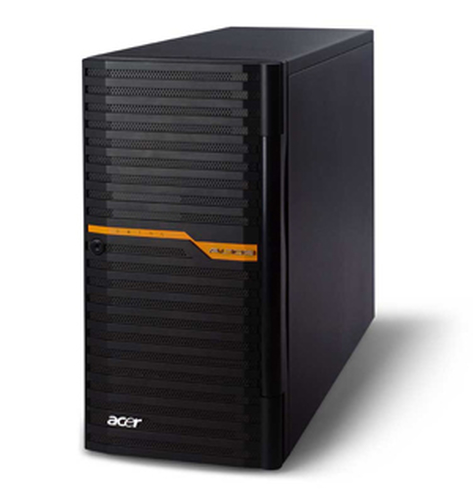

- Dell PowerEdge R200 vsAcer Altos G540 M2Compare specs

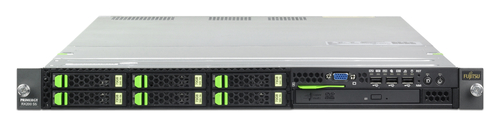

- Dell PowerEdge R200 vsFujitsu Primergy RX200 S5Compare specs
