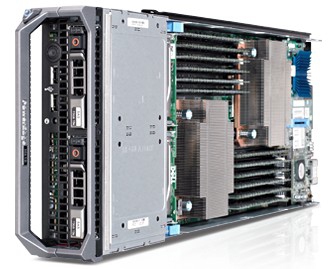

Dell PowerEdge M610
Model PowerEdge M610Part no. M610-9563EAN 5397063109609
99 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory6 GB
- Storage146 GB
- Weight5.2 kg
- Processor manufacturerIntel
- Maximum storage capacity1.2 TB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 6 GB
- Storage
- 146 GB
- Weight
- 5.2 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 1.2 TB
- Brand
- Dell
- Category
- Server
- Model
- PowerEdge M610
- Part numbers
- M610-9563, M610-9586, M610-9609
- EAN / UPC
- 5397063109609, 5397063109593, 5397063109586
- Also known as
- DELL PowerEdge M610 server 146 GB Blade Intel® Xeon® 5000 Sequence X5650 2.66 GHz 6 GB DDR3-SDRAM
Specifications
99 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5650 |
| Processor frequency | 2.66 GHz |
| Processor boost frequency | 3.06 GHz |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5520 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 95 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 20 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV3 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor system type | DP |
| Processor threads | 12 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 81.3 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 3 x 2 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 1.2 TB |
| Total storage capacity | 146 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 146 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 2 |
| RAID support | Yes |
| Hot-swap | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V) Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Oracle Solaris |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47922 |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 486 mm |
| Height | 189 mm |
| Weight | 5.2 kg |
Other features
| Specification | Value |
|---|---|
| Disk array controller | SAS 6/iR |
| Graphics card | G200 |
| Graphics card family | Matrox |
