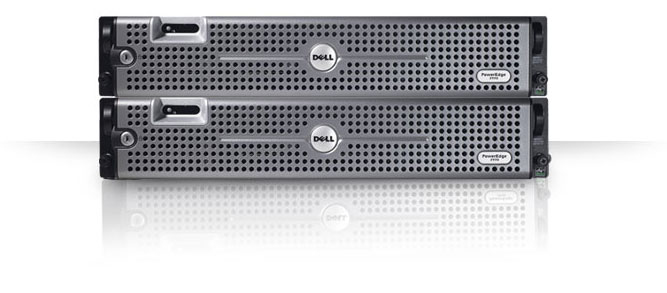

Dell PowerEdge 2950

Model PowerEdge 2950Part no. PE2950-FW-F01

98 specifications

Overview

Brand: Dell
Category: Server
Model: PowerEdge 2950
Part numbers: PE2950-FW-F01, PE2950-FW-E01
Also known as: DELL PowerEdge 2950 server 4.32 TB Rack (2U) Intel® Xeon® 5000 Sequence E5405 2 GHz 8 GB DDR2-SDRAM

98 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5405
Processor frequency	2 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel® 5000X
Number of processors installed	2
Thermal Design Power (TDP)	80 W
Processor cache type	L2
Bus type	FSB
CPU multiplier (bus/core ratio)	6
ECC supported by processor	No
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	Yes
Idle States	No
Number of Processing Die Transistors	820 M
Processing Die size	214 mm²
Processor code	SLBBP
Processor codename	Harpertown
Processor front side bus	1333 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon 5400 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Stepping	E0
Tcase	67 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
Network ready	Yes
Supported network protocols	TOE (TCP/IP)
Other network protocols supported	iSCSI Boot
Networking features	Broadcom NetXtreme IITM 5708 Gigabit5 Ethernet NIC

Specification	Value
PCI Express x4 slots	1
PCI Express x8 slots	2

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Compatible operating systems	Microsoft Windows Server 2008, Microsoft Windows Server 2003 Red Hat Linux Enterprise SUSE Linux Enterprise Server 10 x86-64 VMware ESX 3.5
Bundled software	Symantec Backup ExecTM 12.5 Symantec Backup ExecTM System Recovery 8.5 CommVault 7.0 Vizioncore

Specification	Value
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33079

Specification	Value
Redundant power supply (RPS) support	Yes

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

Specification	Value
Certification	FCC (U.S. only) Class A ICES (Canada) Class B CE Mark (EN 55022 Class B, EN55024, EN61000-3-2, EN61000-3-3) VCCI (Japan) Class B BSMI (Taiwan) Class A C-Tick (Australia/New Zealand) Class B SABS (South Africa) Class B CCC (China) Class B MIC (Korea) Class B UL 60950 CAN/CSA C22.2 No. 60950 EN 60950

Specification	Value
Disk array controller	C2 PERC6/i
Graphics card	ES1000
