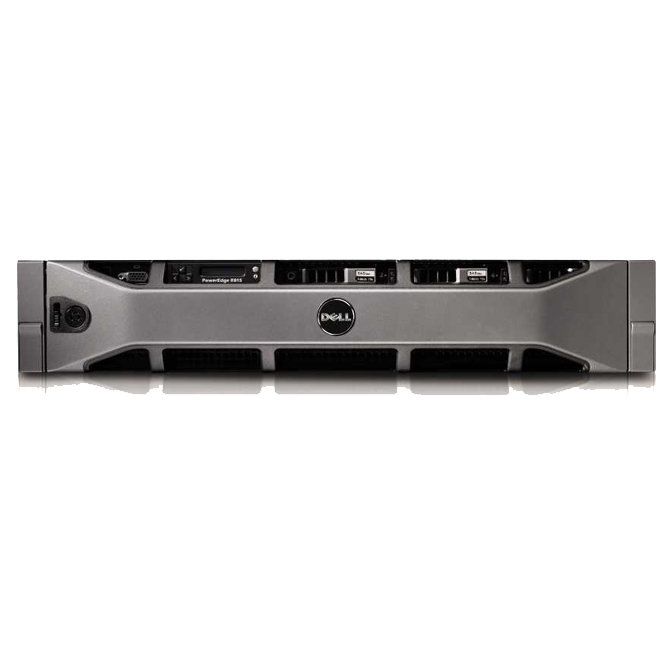

Dell PowerEdge per810 server
146 GB Rack (2U) Intel® Xeon® E7 Family E7-4820 2 GHz 32 GB DDR3-SDRAM 1100 W
Model per810Part no. PER810
102 specifications
- ProcessorIntel® Xeon® E7 Family
- Memory32 GB
- Storage146 GB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity6 TB
Overview
- Processor
- Intel® Xeon® E7 Family
- Memory
- 32 GB
- Storage
- 146 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 6 TB
- Brand
- Dell
- Category
- Server
- Model
- per810
- Part number
- PER810
- Also known as
- DELL PowerEdge per810 server 146 GB Rack (2U) Intel® Xeon® E7 Family E7-4820 2 GHz 32 GB DDR3-SDRAM 1100 W
Specifications
102 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E7 Family |
| Processor model | E7-4820 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.27 GHz |
| Processor cores | 8 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel E7510 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 15 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Maximum internal memory supported by processor | 2 TB |
| Maximum number of SMP processors | 2 |
| Memory clock speeds supported by processor | 800,978,1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor code | SLC3G |
| Processor codename | Westmere EX |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 49.17 x 56.47 mm |
| Processor series | Intel Xeon E7-4800 |
| Processor socket | LGA 1567 (Socket LS) |
| Processor threads | 16 |
| Scalability | S4S |
| Stepping | A2 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Tcase | 64 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1066 MHz |
| Memory layout (slots x size) | 16 x 2 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 6 TB |
| Total storage capacity | 146 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 146 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 6 |
| RAID support | Yes |
| Hot-swap | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5709C |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 2 |
| PCI Express x8 slots | 5 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 SP2 x86/x64 Windows Server 2008 R2 x64 Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 53675 |
Power
| Specification | Value |
|---|---|
| Power supply | 1100 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 443.1 mm |
| Depth | 720.6 mm |
| Height | 86.4 mm |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200eW |
| Graphics card family | Matrox |
