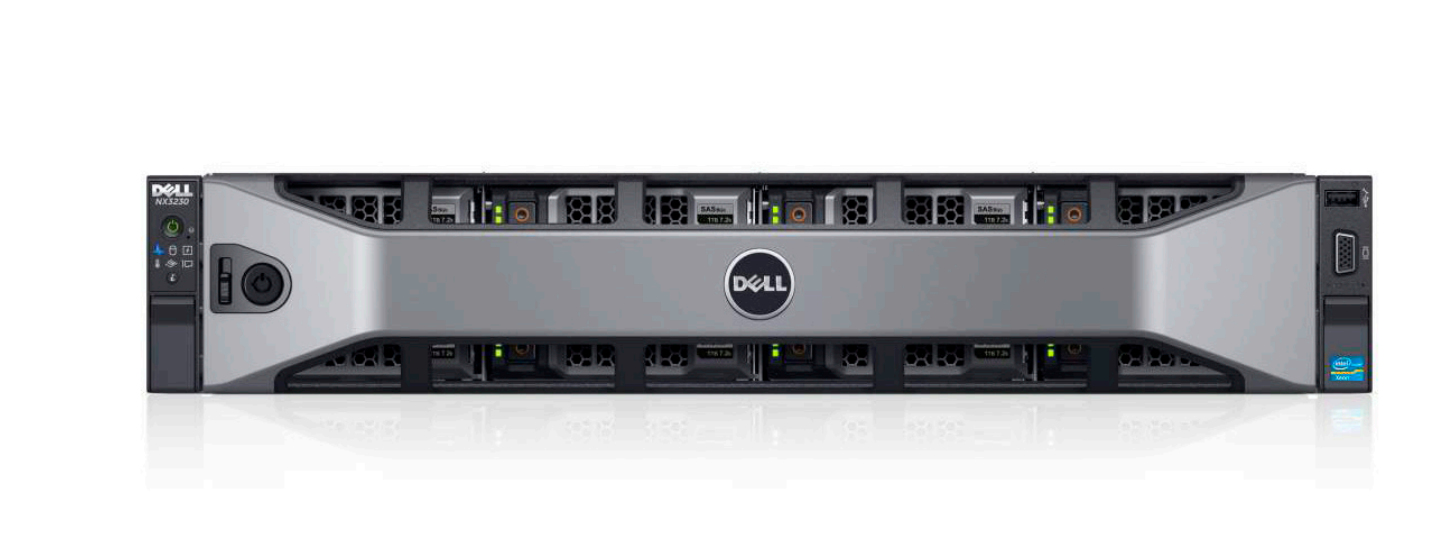

Dell NX3230 server

18.6 TB Rack (2U) Intel Xeon E5 v3 E5-2630V3 2.4 GHz 32 GB DDR4-SDRAM 750 W Windows Server 2012 R2 Standard

Model NX3230Part no. X3230-0947EAN 5397063830947

87 specifications

Overview

Brand: Dell
Category: Server
Model: NX3230
Part numbers: X3230-0947, X3230-1268
EAN / UPC: 5397063830947, 7330381920325, 5397184061268
Also known as: DELL NX3230 server 18.6 TB Rack (2U) Intel Xeon E5 v3 E5-2630V3 2.4 GHz 32 GB DDR4-SDRAM 750 W Windows Server 2012 R2 Standard

87 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E5 v3
Processor model	E5-2630V3
Processor frequency	2.4 GHz
Processor boost frequency	3.2 GHz
Processor cores	8
Processor cache	20 MB
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	768 GB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	59 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR206
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45 mm
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	16
Scalability	2S
Stepping	R2
Supported instruction sets	AVX
Tcase	72.1 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	4

Specification	Value
Chassis type	Rack (2U)

Specification	Value
Operating system installed	Windows Server 2012 R2 Standard
Compatible operating systems	Windows Storage Server 2012 R2 Standard Edition

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	83356

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	750 W

Specification	Value
Dell E-Value Code	PVNX3230_OPT
