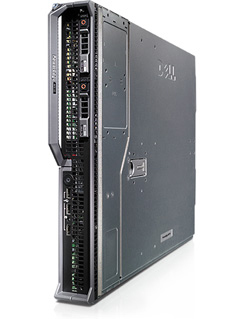

Dell PowerEdge M910 server
146 GB Blade Intel® Xeon® 6000 Sequence E6510 1.73 GHz 16 GB DDR3-SDRAM
Model M910Part no. PEM910
81 specifications
- ProcessorIntel® Xeon® 6000 Sequence
- Memory16 GB
- Storage146 GB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity2 TB
Overview
- Processor
- Intel® Xeon® 6000 Sequence
- Memory
- 16 GB
- Storage
- 146 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 2 TB
- Brand
- Dell
- Category
- Server
- Model
- M910
- Part number
- PEM910
- Also known as
- DELL PowerEdge M910 server 146 GB Blade Intel® Xeon® 6000 Sequence E6510 1.73 GHz 16 GB DDR3-SDRAM
Specifications
81 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 6000 Sequence |
| Processor model | E6510 |
| Processor frequency | 1.73 GHz |
| Processor boost frequency | 1.73 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 7500 |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | L3 |
| System bus rate | 4.8 GT/s |
| Bus type | QPI |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Processor codename | Nehalem EX |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 6500 Series |
| Processor socket | LGA 1567 (Socket LS) |
| Processor threads | 8 |
| Tcase | 64 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 2 TB |
| Total storage capacity | 146 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 146 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| RAID support | No |
| Hot-swap | No |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 46488 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -16 - 10600 m |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Graphics card | G200eW |
| Graphics card family | Matrox |
