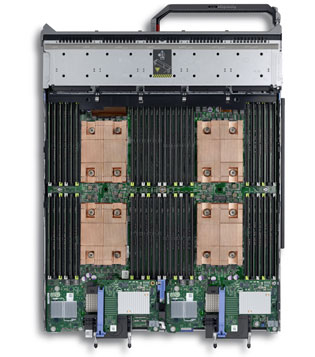

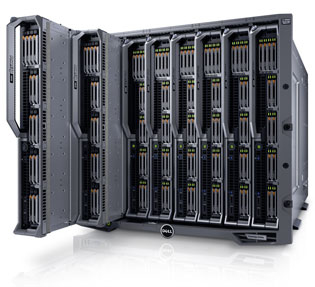

Dell PowerEdge M830 server

600 GB Blade Intel® Xeon® E5 Family E5-4650 2.7 GHz 16 GB DDR4-SDRAM

Model M830Part no. M830-9445EAN 5397063769445

100 specifications

Overview

Brand: Dell
Category: Server
Model: M830
Part numbers: M830-9445, PEM83001, PEM830SAMPLE, PE_M830_11638CA
EAN / UPC: 5397063769445
Also known as: DELL PowerEdge M830 server 600 GB Blade Intel® Xeon® E5 Family E5-4650 2.7 GHz 16 GB DDR4-SDRAM

100 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-4650
Processor frequency	2.7 GHz
Processor boost frequency	3.3 GHz
Processor cores	8
Processor cache	20 MB
Motherboard chipset	Intel C610
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	130 W
Processor cache type	Smart Cache
System bus rate	8 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	1.5 TB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	51.2 GB/s
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Processor code	SR0QR
Processor codename	Sandy Bridge EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor series	Intel Xeon E5-4600
Processor socket	LGA 2011 (Socket R)
Processor threads	16
Scalability	S4S
Stepping	C2
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Maximum graphics card memory	16 MB

Specification	Value
Ethernet LAN (RJ-45) ports	2

Specification	Value
PCI Express slots version	3.0

Specification	Value
Chassis type	Blade

Specification	Value
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX

Specification	Value
CPU configuration (max)	4
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64622

Specification	Value
Graphics card	G200
Graphics card family	Matrox
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
