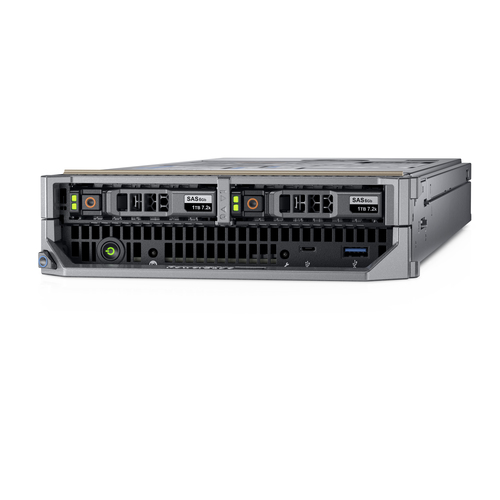

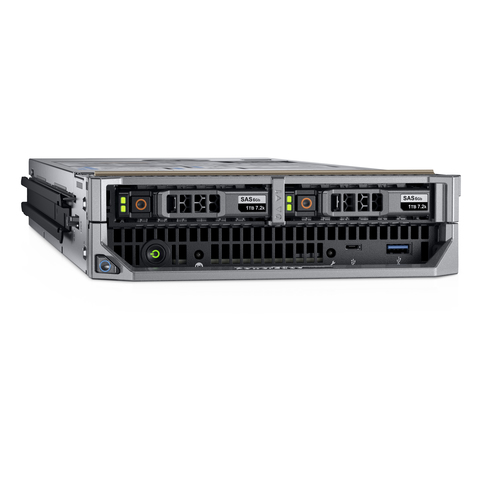

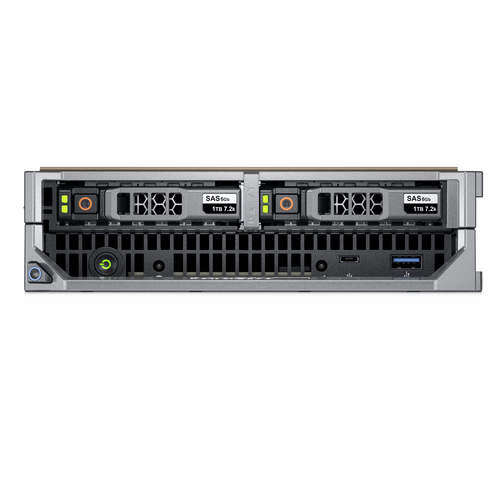

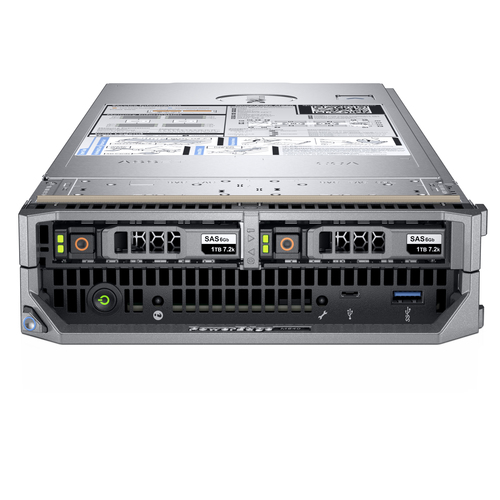

PowerEdge M640P server
1.2 TB Rack (1U) Intel® Xeon® Gold 6230 2.1 GHz 32 GB DDR4-SDRAM
Model M640PPart no. EMEA_M640P_VI_VP
65 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage1.2 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 1.2 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- M640P
- Part number
- EMEA_M640P_VI_VP
- Also known as
- DELL PowerEdge M640P server 1.2 TB Rack (1U) Intel® Xeon® Gold 6230 2.1 GHz 32 GB DDR4-SDRAM
Specifications
65 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 6230 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 20 |
| Processor cache | 27.5 MB |
| Thermal Design Power (TDP) | 125 W |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 40 |
| Scalability | 4S |
| Supported instruction sets | AVX-512 |
| Tcase | 87 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory ranking | 2 |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.2 TB |
| HDD size | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| Supported RAID controllers | H330 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X710 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Citrix Xen Server - Ubuntu Canonical - Ubuntu Server LTS - RedHat Enterprise Linux Server - SUSE Linux Enterprise Server - Microsoft Windows Server - Microsoft Windows Server with Hyper-V - VMware vSphere - VMware vSphere ESXi |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 192437 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 565 mm |
| Height | 198 mm |
