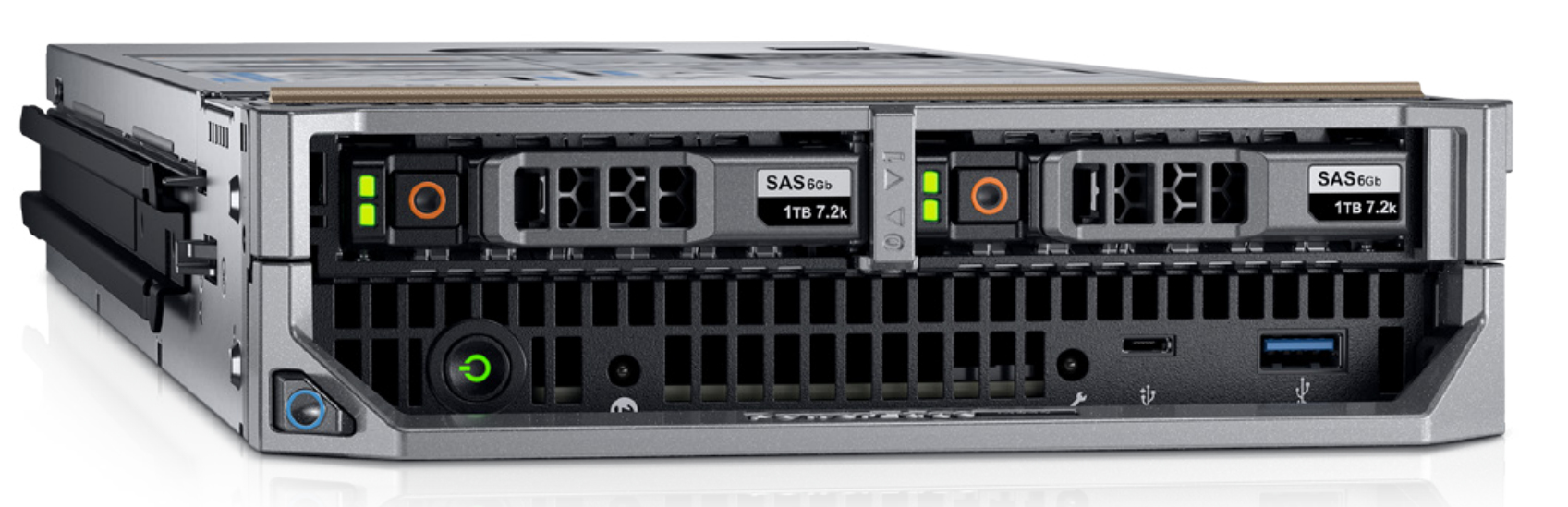

Dell PowerEdge M640 server
400 GB Rack (1U) Intel® Xeon® 4114 2.2 GHz 32 GB DDR4-SDRAM
Model M640Part no. M640-3988EAN 5397184073988
76 specifications
- ProcessorIntel® Xeon®
- Memory32 GB
- Storage400 GB
- OSNo
- Processor manufacturerIntel
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon®
- Memory
- 32 GB
- Storage
- 400 GB
- OS
- No
- Processor manufacturer
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Dell
- Category
- Server
- Model
- M640
- Part numbers
- M640-3988, PE_M640P_12345, PEM6401A, PE_M640_12331, EMEA_M640_VI_VP
- EAN / UPC
- 5397184073988
- Also known as
- DELL PowerEdge M640 server 400 GB Rack (1U) Intel® Xeon® 4114 2.2 GHz 32 GB DDR4-SDRAM
Specifications
76 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4114 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Bus type | UPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GK |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 20 |
| Scalability | 2S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 78 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory slots | 24x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 400 GB |
| Number of HDDs installed | 0 |
| Number of SSDs installed | 1 |
| SSD capacity | 400 GB |
| RAID support | Yes |
| Supported RAID controllers | H730P |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 123550 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.4 mm |
| Height | 197.9 mm |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | PERM640P01 |
