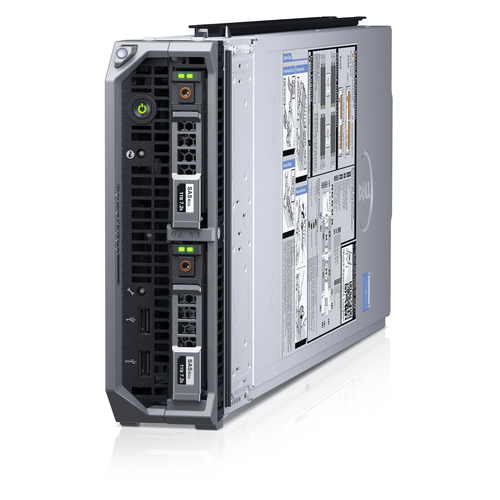

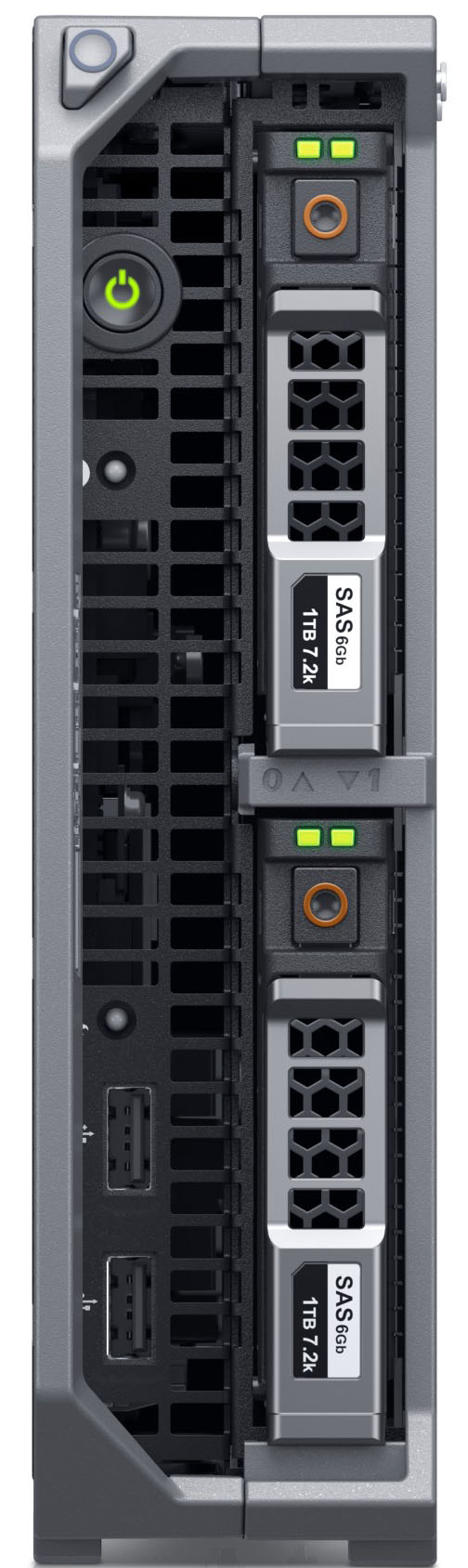

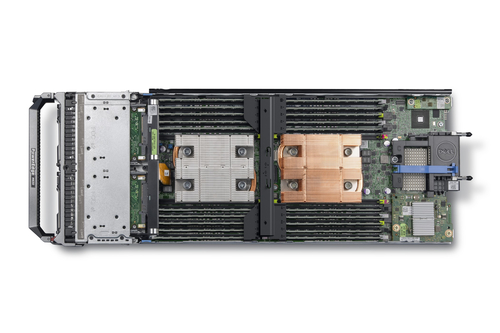

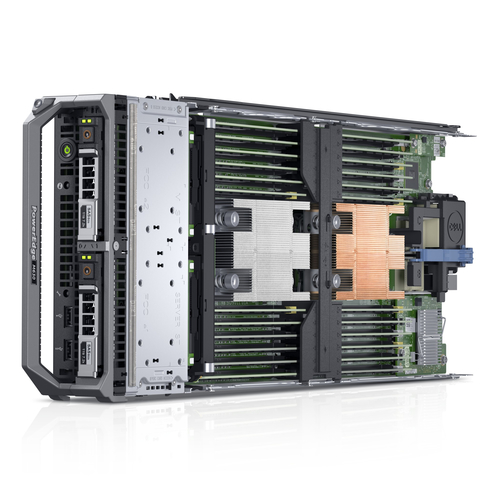

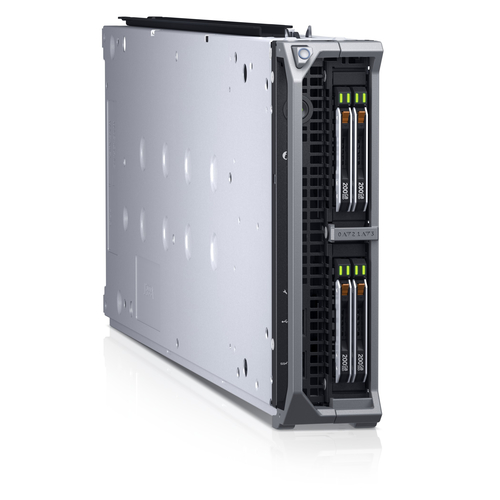

Dell PowerEdge M630 server Blade Intel Xeon E5 v3 E5-2640V3
2.6 GHz 32 GB DDR4-SDRAM
Model M630Part no. M630-5621EAN 5397063734078
117 specifications
- ProcessorIntel Xeon E5 v3
- Memory32 GB
- Weight6.8 kg
- Processor manufacturerIntel
- Number of HDDs installed0
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E5 v3
- Memory
- 32 GB
- Weight
- 6.8 kg
- Processor manufacturer
- Intel
- Number of HDDs installed
- 0
- On-board graphics card
- Yes
- Brand
- Dell
- Category
- Server
- Model
- M630
- Part numbers
- M630-5621, ASPEM630, PEM63001, ASPEM630P, PE_M630_1372, PE_M630_1372CA +1 more
- EAN / UPC
- 5397063734078, 5397063835621
- Also known as
- DELL PowerEdge M630 server Blade Intel Xeon E5 v3 E5-2640V3 2.6 GHz 32 GB DDR4-SDRAM
Specifications
117 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-2640V3 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 8 |
| Processor cache | 20 MB |
| Motherboard chipset | Intel C610 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 90 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR205 |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 16 |
| Scalability | 2S |
| Stepping | R2 |
| Supported instruction sets | AVX |
| Tcase | 74.3 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD size | 2.5" |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Blade |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008/2012 R2 Windows Server 2012 Windows Server 2008/2012 Datacenter Windows Server 2008 R2 SP1 Windows Server 2008 R2 SP2 x64/x86 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 83359 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.4 mm |
| Depth | 544.3 mm |
| Height | 197.9 mm |
| Weight | 6.8 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200 |
| Graphics card family | Matrox |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
