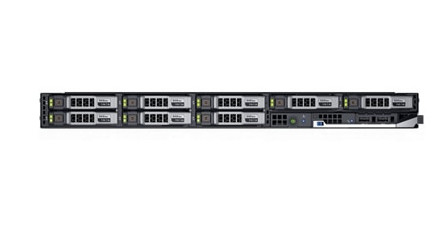

PowerEdge FC830 server
300 GB Rack (1U) Intel® Xeon® E5 v4 E5-4650V4 2.2 GHz 8 GB DDR4-SDRAM
Model FC830Part no. PE_FC830_11637
75 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory8 GB
- Storage300 GB
- OSNo
- Processor manufacturerIntel
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 8 GB
- Storage
- 300 GB
- OS
- No
- Processor manufacturer
- Intel
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Dell
- Category
- Server
- Model
- FC830
- Part number
- PE_FC830_11637
- Also known as
- DELL PowerEdge FC830 server 300 GB Rack (1U) Intel® Xeon® E5 v4 E5-4650V4 2.2 GHz 8 GB DDR4-SDRAM
Specifications
75 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-4650V4 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.8 GHz |
| Processor cores | 14 |
| Processor cache | 35 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | Smart Cache |
| System bus rate | 9.6 GT/s |
| Bus type | QPI |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Physical Address Extension (PAE) | 46 bit |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor socket | LGA 2011-v3 |
| Processor threads | 28 |
| Scalability | 4S |
| Stepping | M0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 80 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 48 |
| Memory data transfer rate | 2666 MT/s |
| Maximum internal memory | 1.53 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 300 GB |
| Number of HDDs installed | 1 |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| RAID support | Yes |
| RAID levels | 1 |
| Hot-swap | Yes |
| Optical drive type | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 93809 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 488 mm |
| Depth | 376 mm |
| Height | 51 mm |
