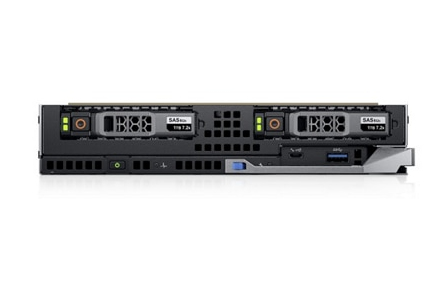

PowerEdge FC640 server
960 GB Rack (1U) Intel Xeon Bronze 3204 1.9 GHz 8 GB DDR4-SDRAM
Model FC640Part no. PE_FC640_12338
59 specifications
- ProcessorIntel Xeon Bronze
- Memory8 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Bronze
- Memory
- 8 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- FC640
- Part numbers
- PE_FC640_12338, EMEA_FC640_VI_VP
- Also known as
- DELL PowerEdge FC640 server 960 GB Rack (1U) Intel Xeon Bronze 3204 1.9 GHz 8 GB DDR4-SDRAM
Specifications
59 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Bronze |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 3204 |
| Processor frequency | 1.9 GHz |
| Processor boost frequency | 1.9 GHz |
| Processor cores | 28 |
| Processor cache | 8.25 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 165 W |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 2 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 56 |
| Scalability | S8S |
| Supported instruction sets | AVX-512 |
| Tcase | 89 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom BCM5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 192471 |
