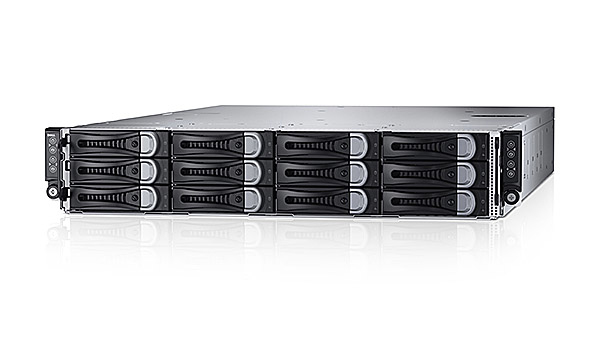

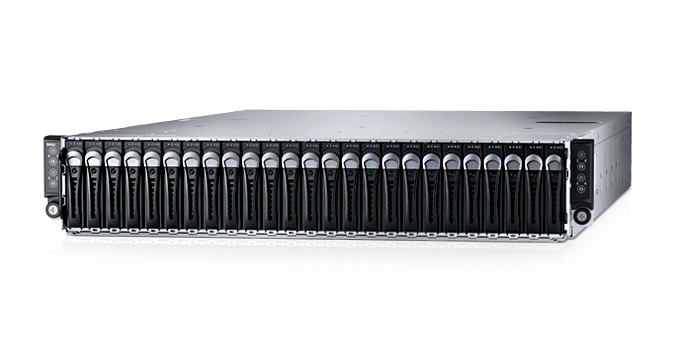

Dell PowerEdge C6320 server

256 GB Rack (2U) Intel® Xeon® E5 v4 E5-2667V4 3.2 GHz DDR4-SDRAM

Model C6320Part no. 730191366

99 specifications

Overview

Brand: Dell
Category: Server
Model: C6320
Part number: 730191366
Also known as: DELL PowerEdge C6320 server 256 GB Rack (2U) Intel® Xeon® E5 v4 E5-2667V4 3.2 GHz DDR4-SDRAM

99 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2667V4
Processor frequency	3.2 GHz
Processor boost frequency	3.6 GHz
Processor cores	8
Processor cache	25 MB
Motherboard chipset	Intel® C612
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	135 W
Processor cache type	Smart Cache
System bus rate	9.6 GT/s
Bus type	QPI
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	1.53 TB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	76.8 GB/s
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR2P5
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	45 x 52.5 mm
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	16
Scalability	2S
Stepping	R0
Supported instruction sets	AVX 2.0
Tcase	78 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes
Intelligent Platform Management Interface (IPMI) support	Yes

Specification	Value
Maximum storage capacity	72 TB
Total storage capacity	256 GB
HDD interface	Serial ATA III, Serial Attached SCSI (SAS)
HDD size	2.5"
Supported HDD sizes	2.5"
SSD capacity	256 GB
RAID support	Yes
RAID levels	0, 1, 5, 10
Supported RAID controllers	Intel C612
Optical drive type	No
Supported storage drive interfaces	SAS, Serial ATA III

Specification	Value
Chassis type	Rack (2U)
Redundant fans support	Yes

Specification	Value
Compatible operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	92979

Specification	Value
Redundant power supply (RPS) support	Yes
Number of redundant power supplies supported	2

Specification	Value
Number of 2.5" bays	24
Number of 3.5" bays	12
