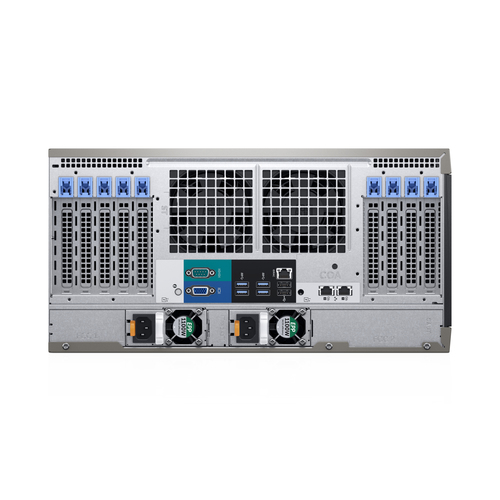

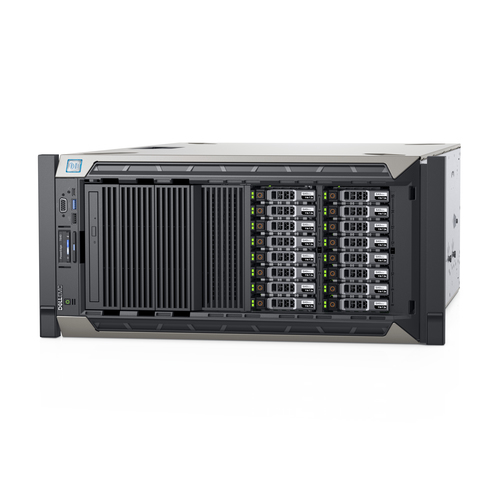

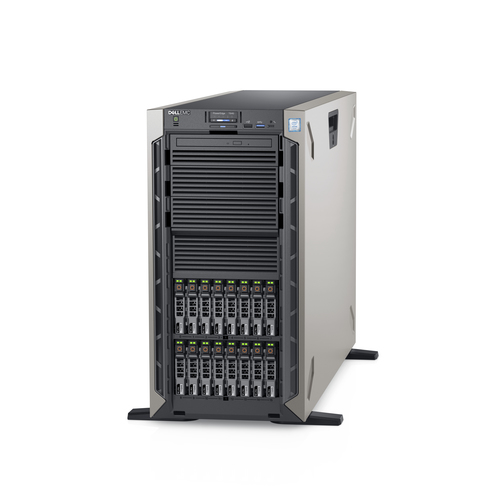

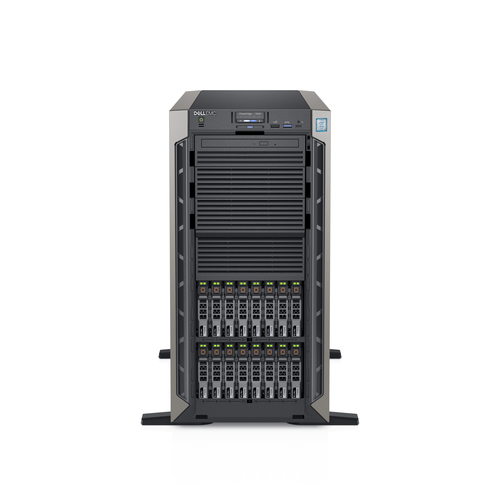

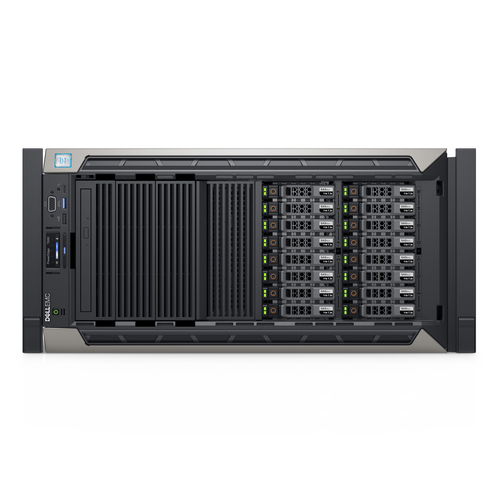

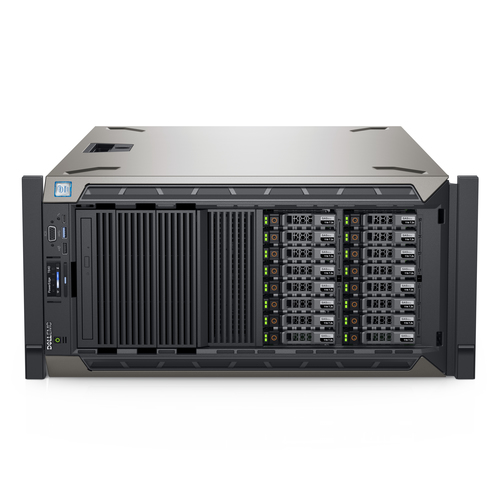

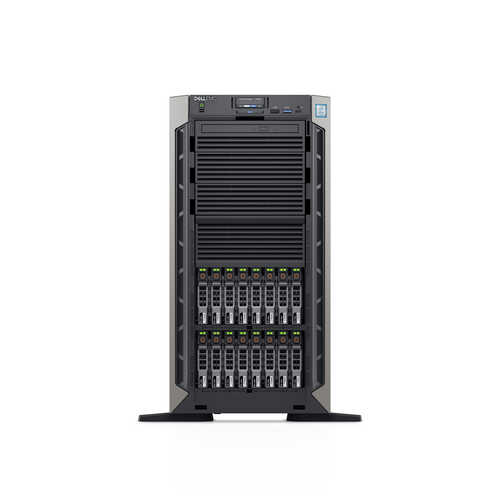

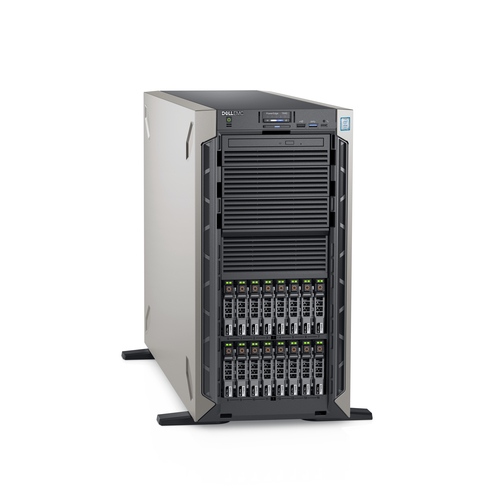

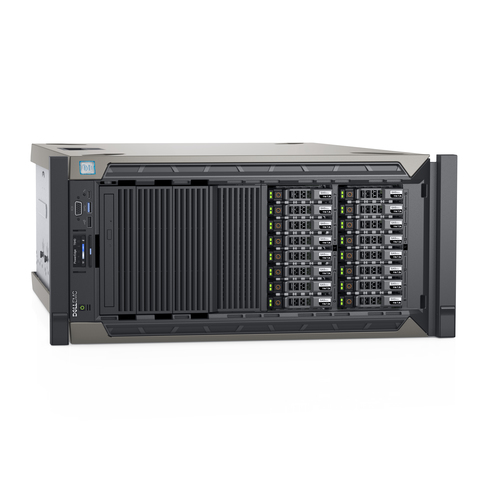

PowerEdge 5CJH1 server
240 GB Tower (5U) Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM 750 W
Model 5CJH1EAN 884116343523
88 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage240 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 240 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- 5CJH1
- Part numbers
- 5CJH1, D49H6, F28X5
- EAN / UPC
- 884116343523, 884116336112, 884116343516
- Also known as
- DELL PowerEdge 5CJH1 server 240 GB Tower (5U) Intel® Xeon® 4110 2.1 GHz 16 GB DDR4-SDRAM 750 W
Specifications
88 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4110 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | LPDDR4-SDRAM |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 16 |
| Scalability | 2S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 77 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 24x DIMM |
| Memory data transfer rate | 2666 MT/s |
| Maximum internal memory | 384 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 240 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| SSD interface | SATA III |
| Supported RAID controllers | PERC H730P |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
| Product colour | Black |
| Rack rails | No |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
| Performance management | OpenManage Enterprise Advanced |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Canonical Ubuntu LTS - Citrix Hypervisor - Microsoft Windows Server LTSC with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 123547 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.5 mm |
| Depth | 692.8 mm |
| Height | 443.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
