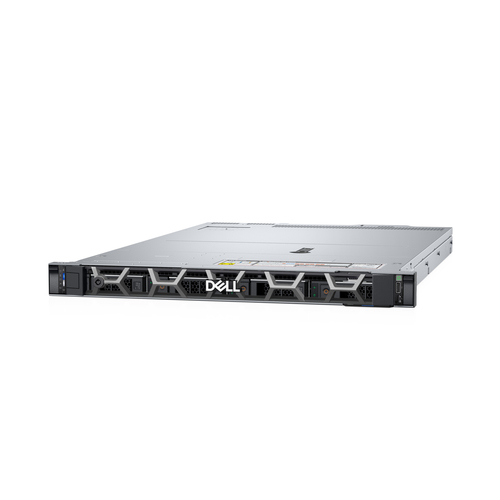

PowerEdge 210-BHRM-XK1G server
960 GB Rack (1U) Intel® Xeon® Gold 5418Y 2 GHz 64 GB DDR5-SDRAM 800 W
Model 210-BHRM-XK1G
70 specifications
- ProcessorIntel® Xeon® Gold
- Memory64 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 64 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- 210-BHRM-XK1G
- Part number
- 210-BHRM-XK1G
- Also known as
- DELL PowerEdge 210-BHRM-XK1G server 960 GB Rack (1U) Intel® Xeon® Gold 5418Y 2 GHz 64 GB DDR5-SDRAM 800 W
Specifications
70 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor model | 5418Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 24 |
| Processor cache | 45 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 185 W |
| System bus rate | 16 GT/s |
| Memory clock speeds supported by processor | 4400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 48 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 1.5 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 16G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server. VMware ESXi Canonical Ubuntu Server LTS |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | PCIe Riser Config 5 1 xOCP 3.0 + 1 x16LP (Gen4) + 1 x8 LP (Gen5) |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (rear) | 2,5" |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
| Open Compute Project (OCP) | NIC 3.0 |
