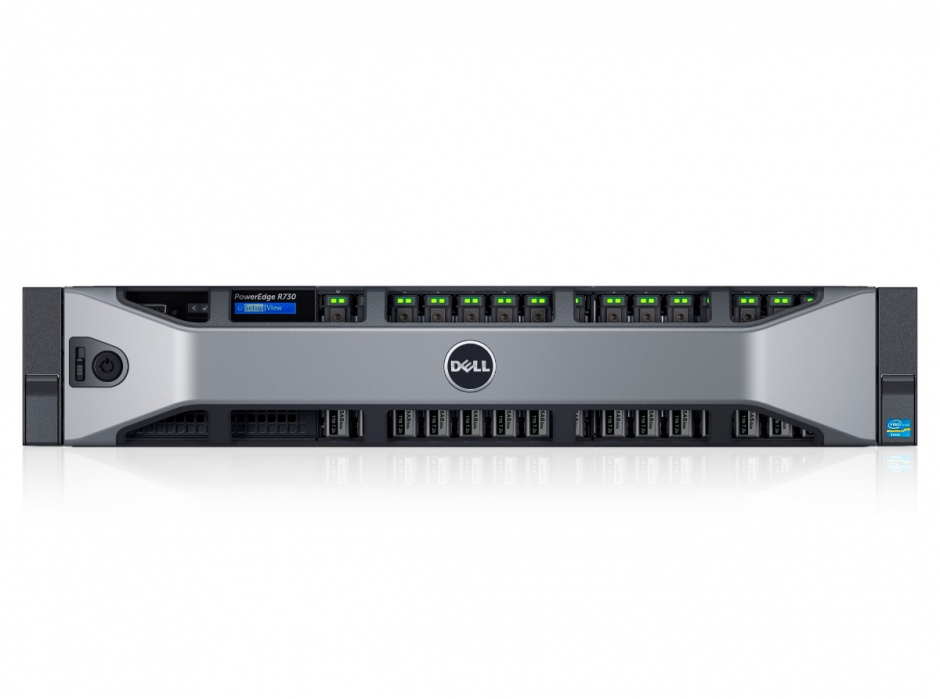

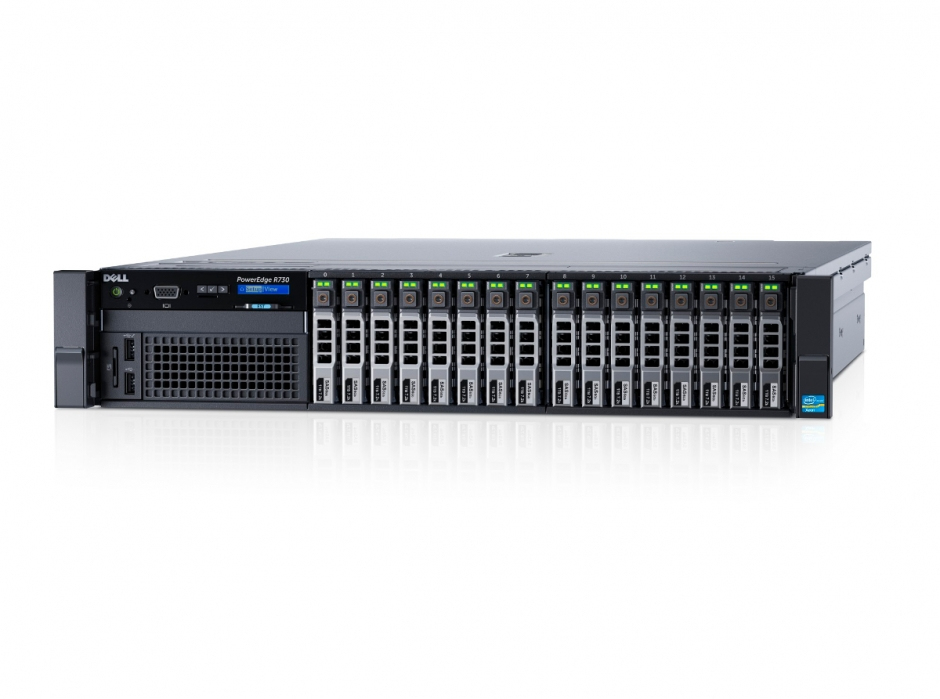

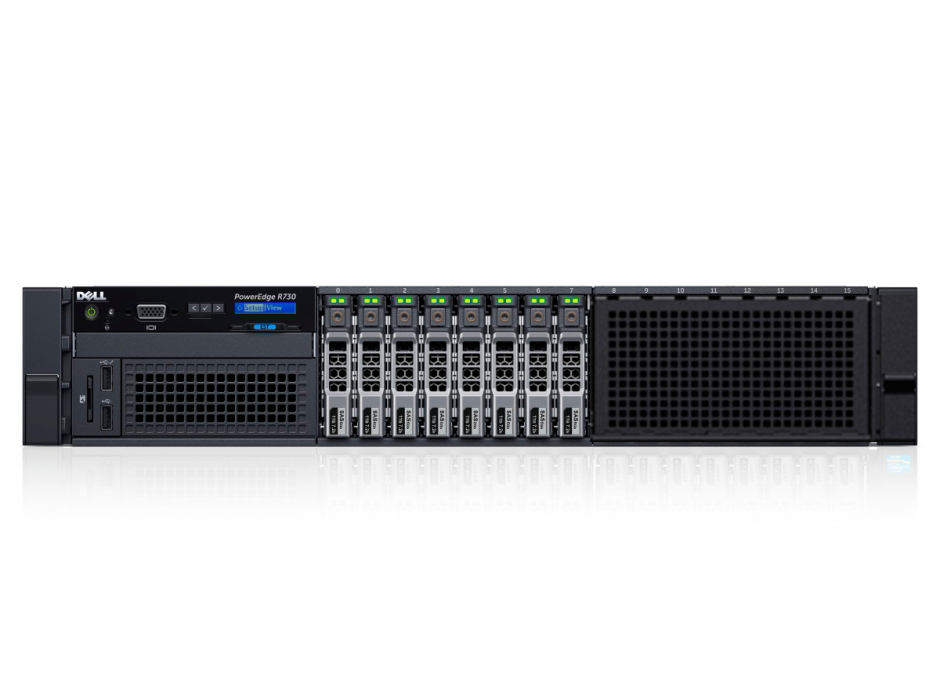

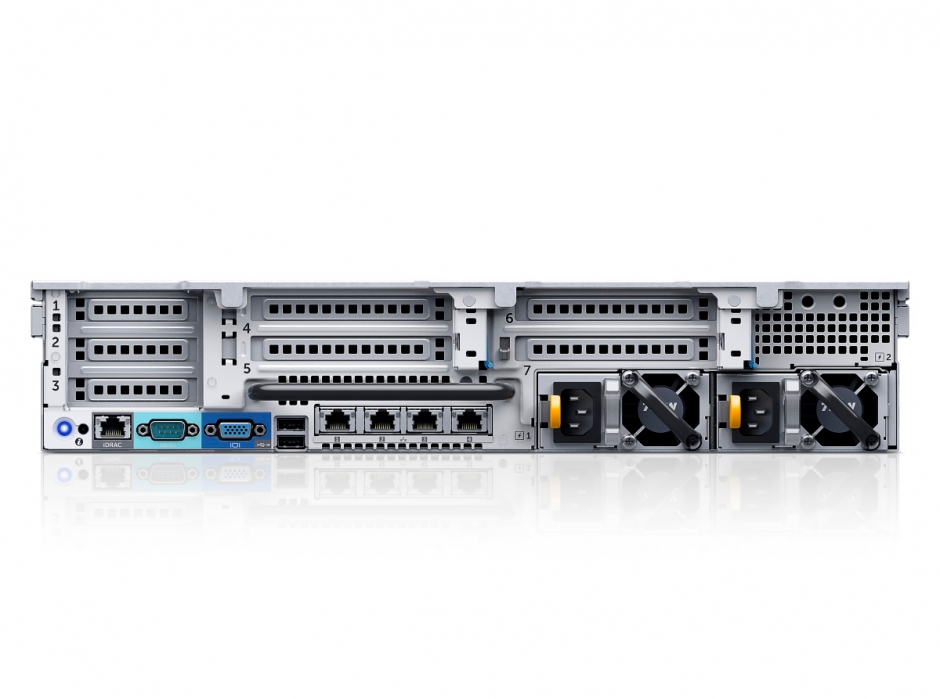

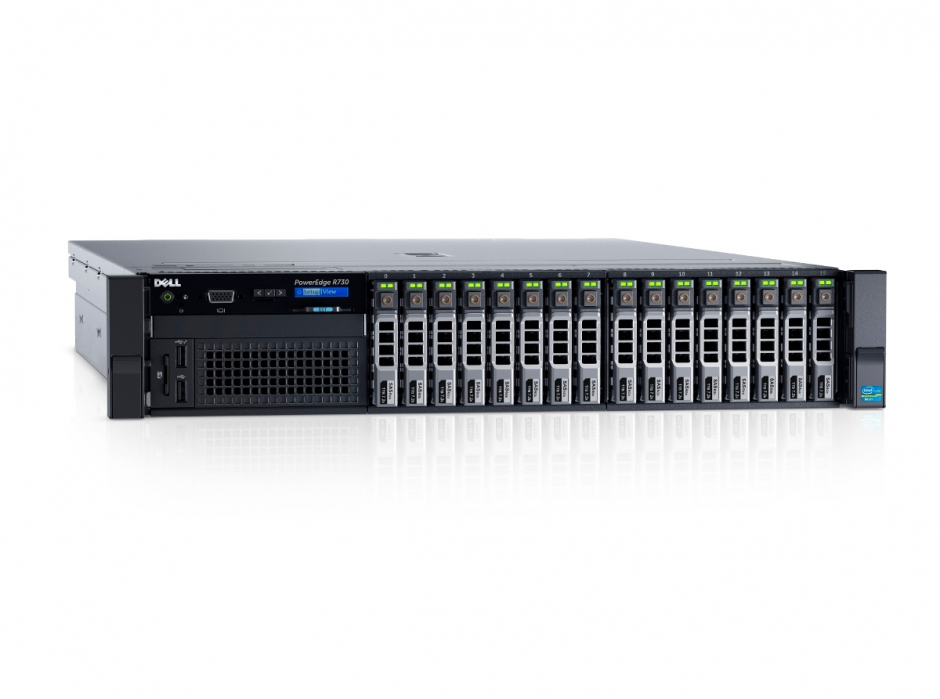

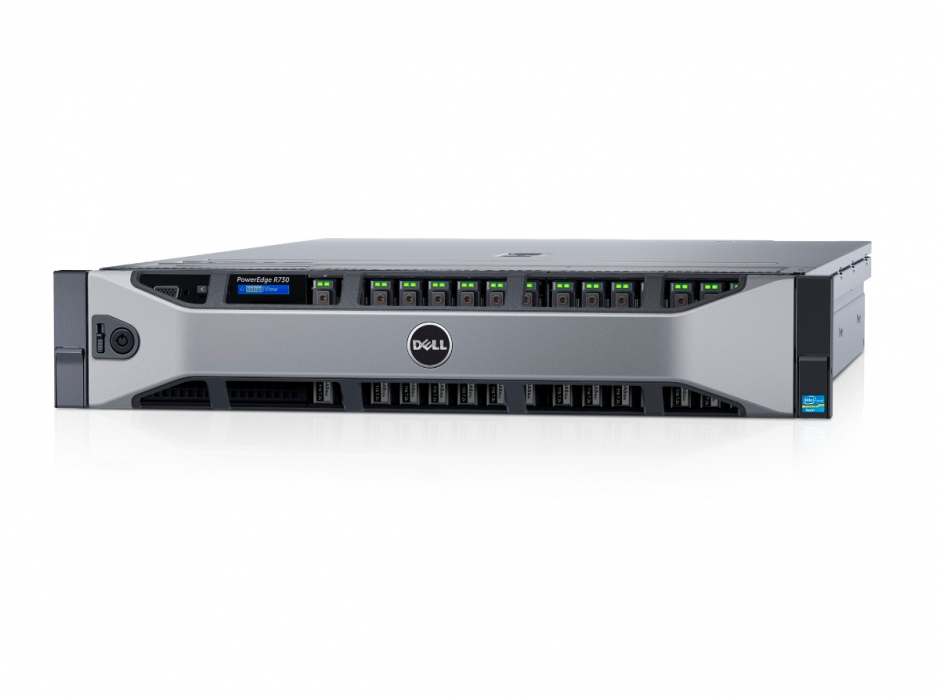

Dell Wyse PowerEdge R730 server
300 GB Rack (2U) Intel® Xeon® E5 v4 E5-2630V4 2.2 GHz 16 GB DDR4-SDRAM
Model R730Part no. R730-0787EAN 5397063830787
122 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Storage300 GB
- OSNo
- Weight18.9 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Storage
- 300 GB
- OS
- No
- Weight
- 18.9 kg
- Processor manufacturer
- Intel
- Brand
- Dell Wyse
- Category
- Server
- Model
- R730
- Part number
- R730-0787
- EAN / UPC
- 5397063830787
- Also known as
- Dell Wyse PowerEdge R730 server 300 GB Rack (2U) Intel® Xeon® E5 v4 E5-2630V4 2.2 GHz 16 GB DDR4-SDRAM
Specifications
122 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2630V4 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 10 |
| Processor cache | 25 MB |
| Motherboard chipset | Intel C610 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR2R7 |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Scalability | 2S |
| Stepping | R0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 74 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory slots | 24 |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 14 TB |
| Total storage capacity | 300 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 300 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-Plug support | Yes |
| Optical drive type | DVD-RW |
| Supported storage drive interfaces | SAS, Serial ATA |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008 SP2 (32/64-bit) Windows Server 2012 SP2 (32/64-bit) Windows Server 2008/2012 R2 (64-bit) Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 92981 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 1 |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 684 mm |
| Height | 87.3 mm |
| Weight | 18.9 kg |
Other features
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Dell E-Value Code | PER73004a |
| Display | LCD |
| Graphics card | G200eR2 |
| Graphics card family | Matrox |
