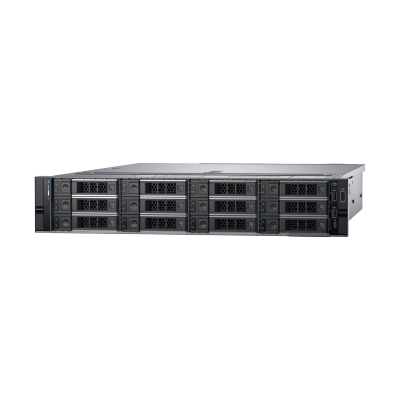

IVS-F7500-2P server
48.48 TB Rack (2U) Intel® Xeon® 5000 Sequence 5120 1.86 GHz 512 GB DDR4-SDRAM 750 W Linux
Model IVS-F7500-2P
68 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory512 GB
- Storage48.48 TB
- OSLinux
- Weight30 kg
- ColourBlack, Grey
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 512 GB
- Storage
- 48.48 TB
- OS
- Linux
- Weight
- 30 kg
- Colour
- Black, Grey
- Brand
- Dahua Technology
- Category
- Server
- Model
- IVS-F7500-2P
- Part number
- IVS-F7500-2P
- Also known as
- Dahua Technology IVS-F7500-2P server 48.48 TB Rack (2U) Intel® Xeon® 5000 Sequence 5120 1.86 GHz 512 GB DDR4-SDRAM 750 W Linux
Specifications
68 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5120 |
| Processor frequency | 1.86 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 120 TB |
| Total storage capacity | 48.48 TB |
| Number of HDDs installed | 12 |
| HDD capacity | 4 TB |
| HDD interface | Serial ATA III |
| Number of SSDs installed | 2 |
| SSD capacity | 240 GB |
| RAID support | Yes |
| RAID levels | 1 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| RS-232 ports | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 27215 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 681.7 mm |
| Height | 86.8 mm |
| Weight | 30 kg |
