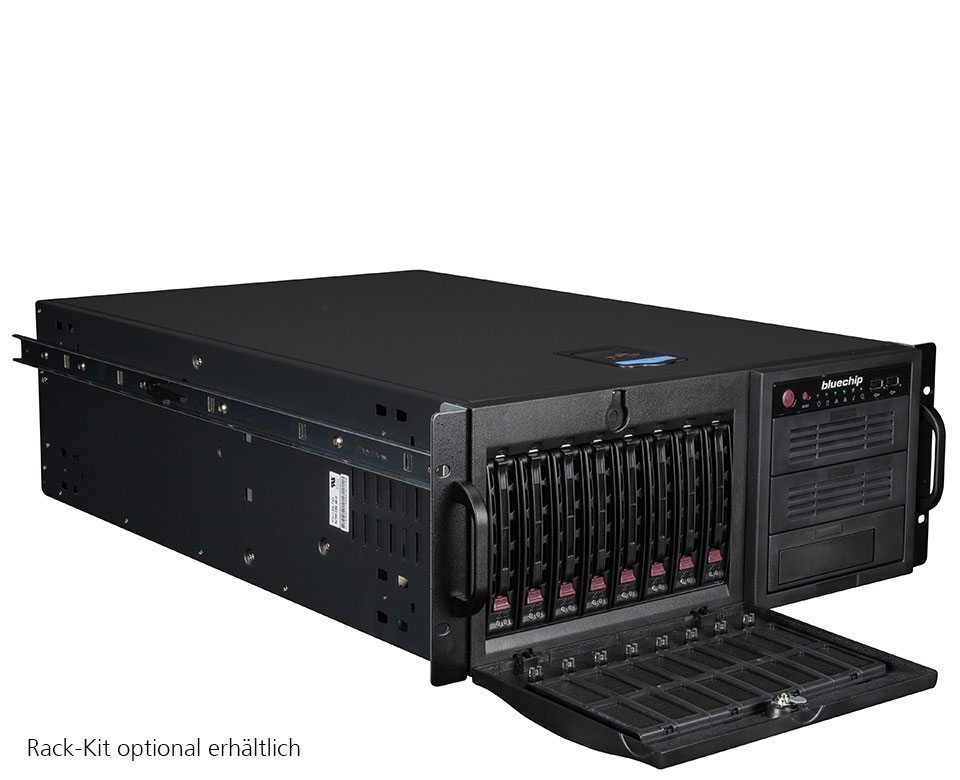

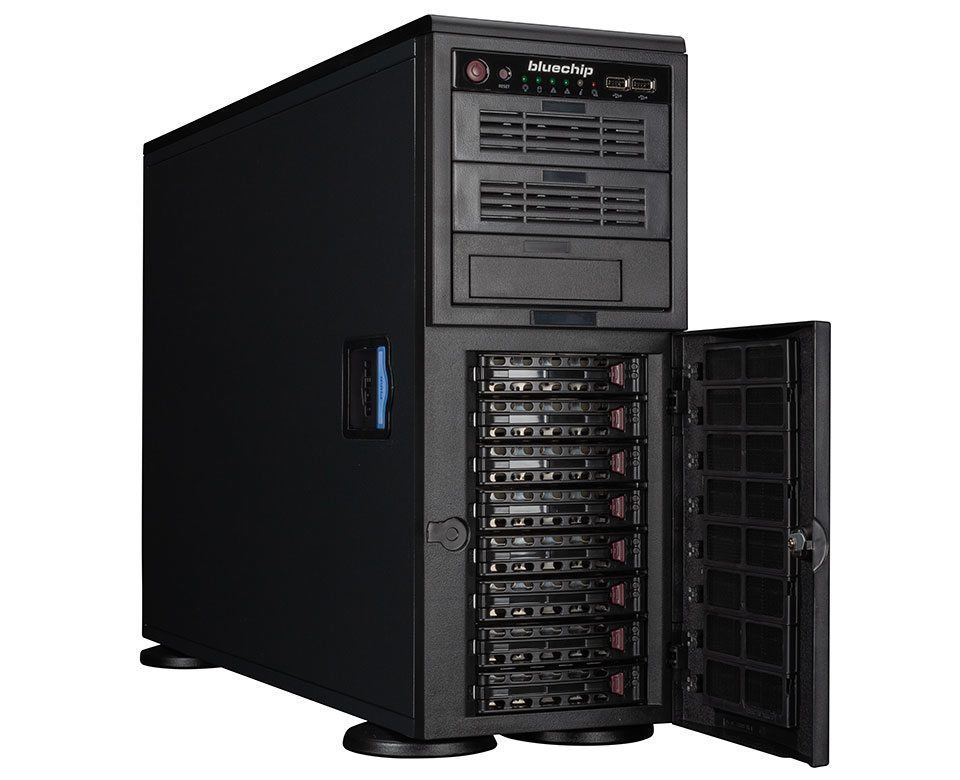

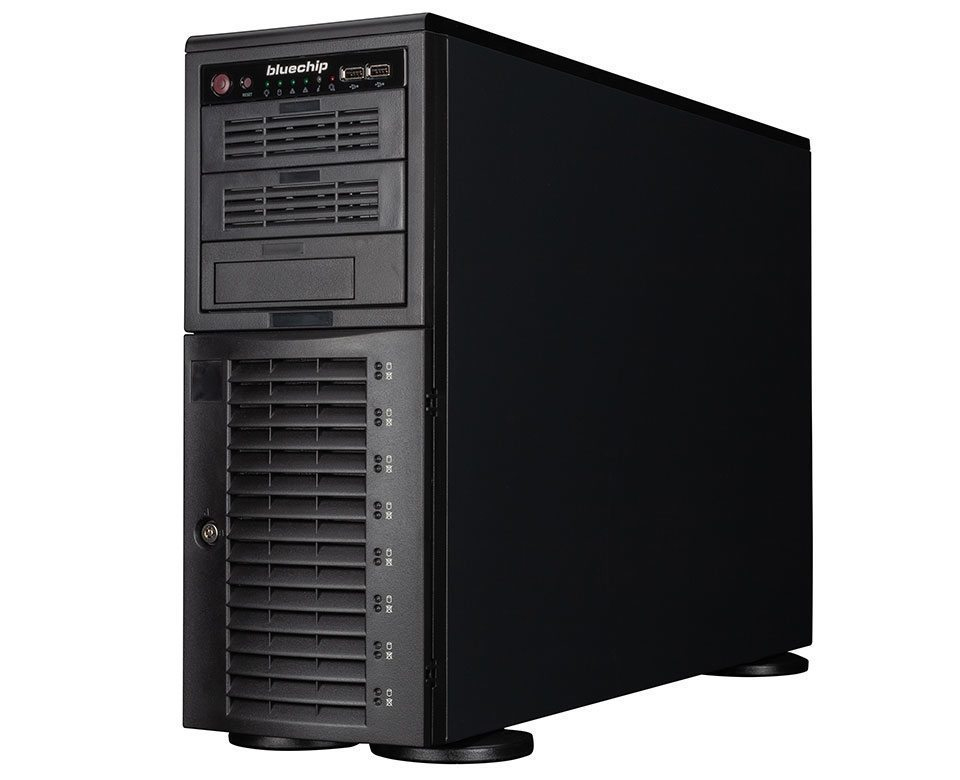

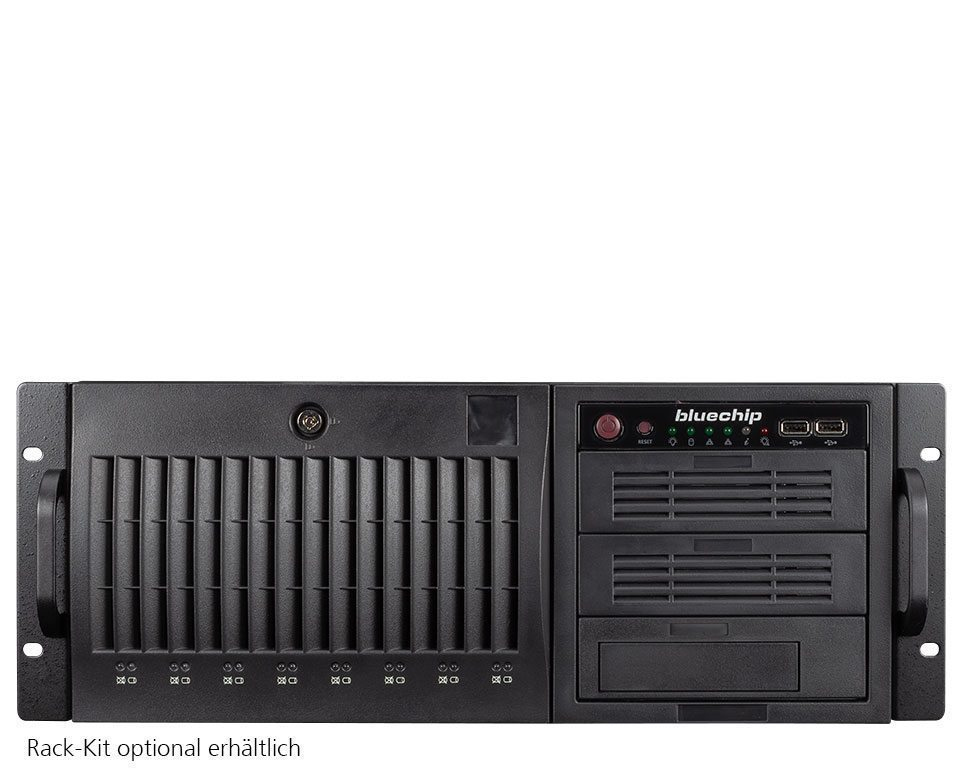

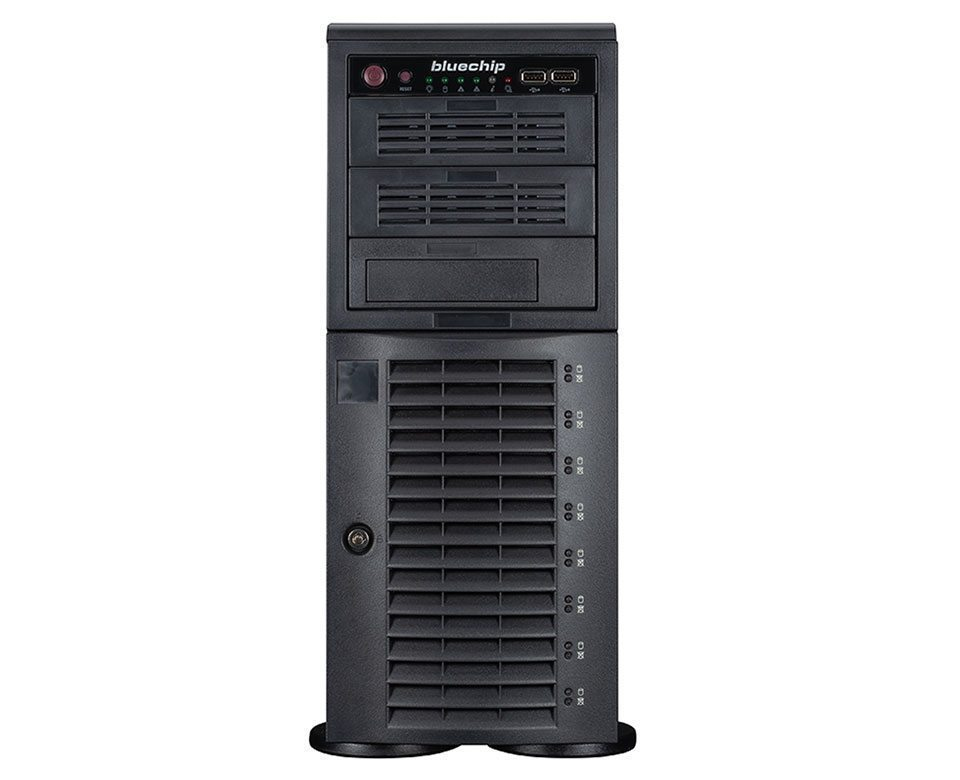

SERVERline T50306s
Model SERVERline T50306sPart no. 850623EAN 4250749710050
52 specifications
- ProcessorAMD EPYC
- Memory64 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 64 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T50306s
- Part number
- 850623
- EAN / UPC
- 4250749710050
- Also known as
- bluechip SERVERline T50306s Tower, 2 × AMD EPYC™ 7313 Prozessor / bis zu 3.70 GHz, 64 GB DDR4, 2 x 480 GB SSD, Avago 9560-8i, 2 x 10 Gigabit Ethernet
Specifications
52 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7313 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 128 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 2 |
| Processor socket | Socket SP3 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 4 x 16 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 4 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported RAID controllers | Avago 9560-8i |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom BCM57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 1280 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 647 mm |
| Height | 452 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5"/3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro H12DSi-NT6 |
