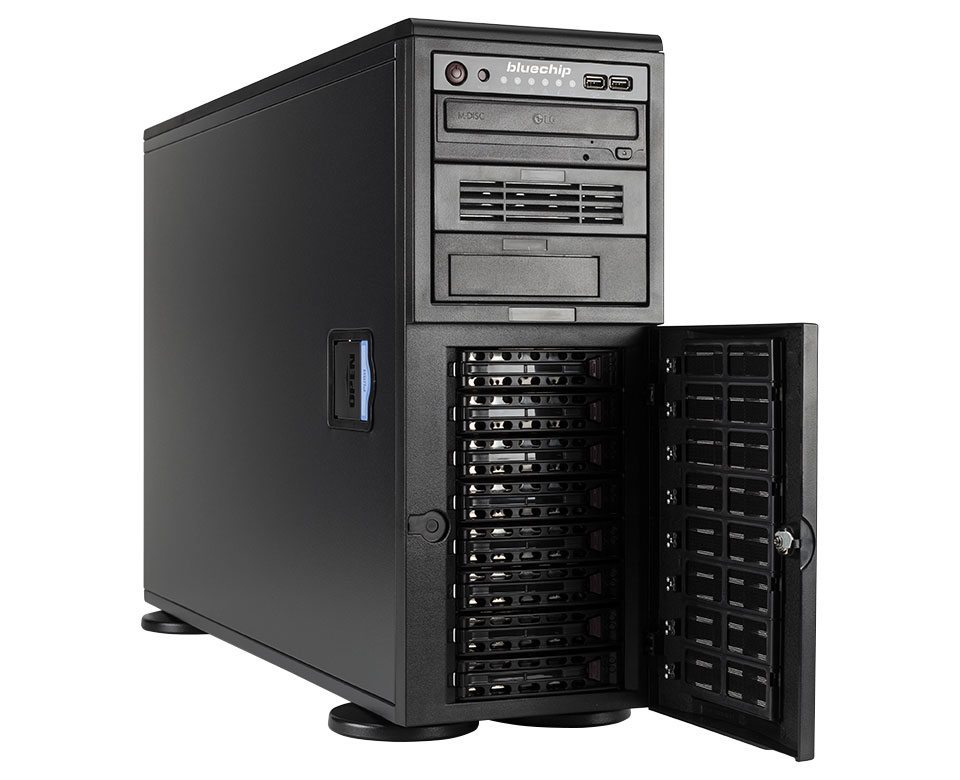

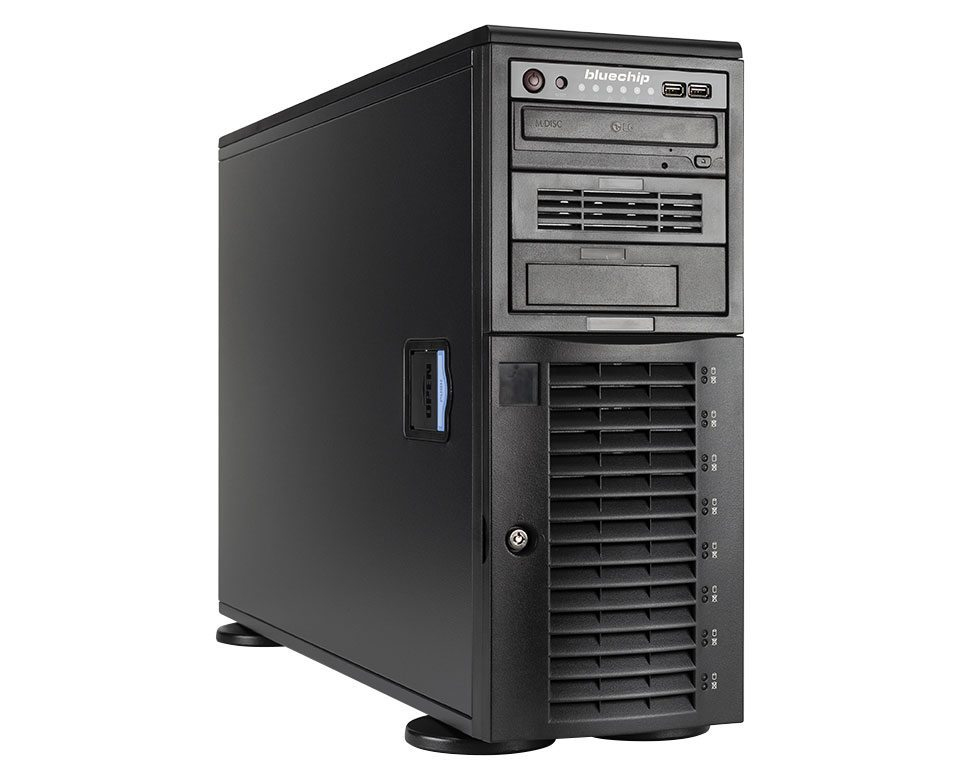

SERVERline T50305s
Model SERVERline T50305sPart no. 850380EAN 4250749703052
50 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage480 GB
- OSNo
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T50305s
- Part numbers
- 850380, 850409
- EAN / UPC
- 4250749703052, 4250749704080
- Also known as
- bluechip SERVERline T50305s
Specifications
50 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7352 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 2 |
| Maximum number of SMP processors | 2 |
| Supported processor sockets | Socket SP3 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 16x DIMM |
| Maximum internal memory | 4 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50 |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel i350-AM21 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
| Product colour | Black |

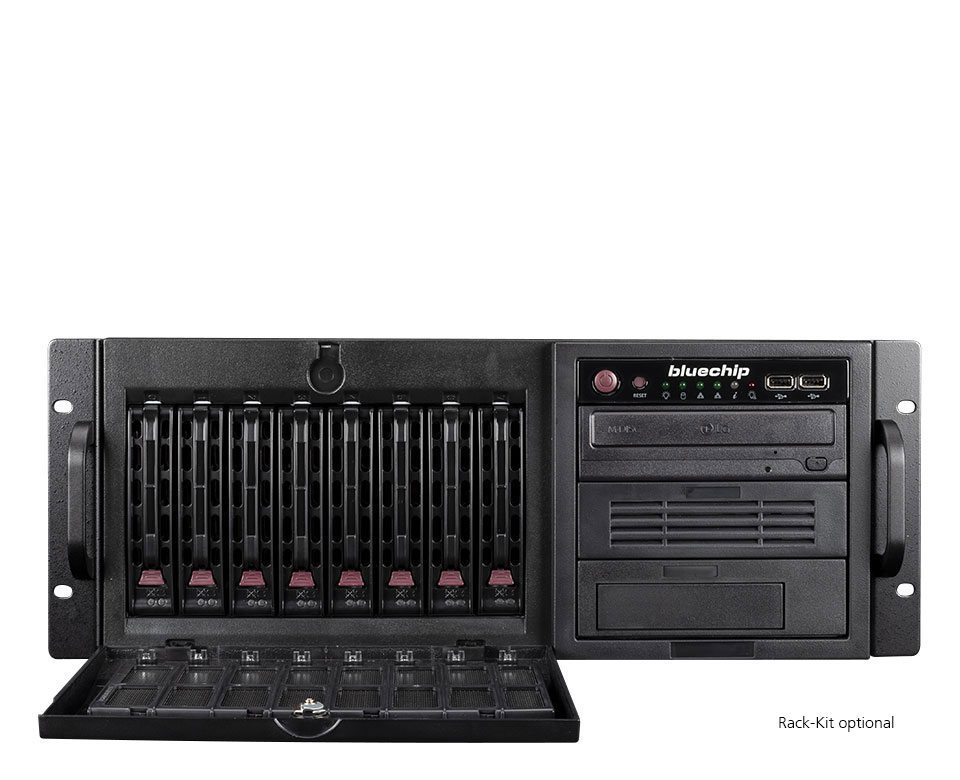

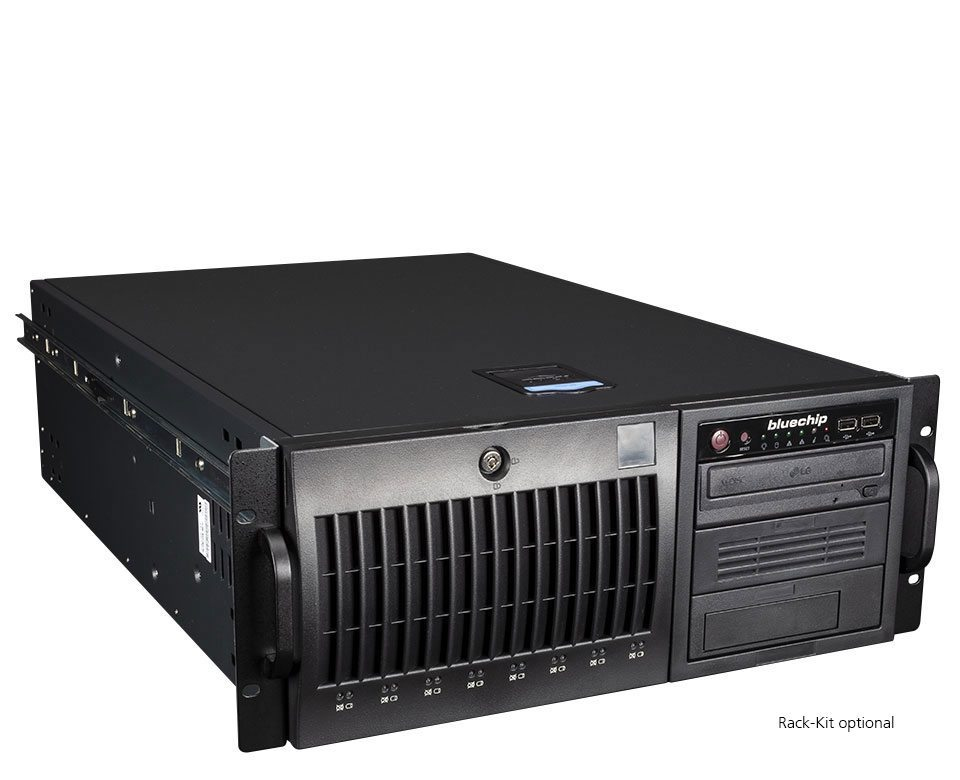

| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
Certificates
| Specification | Value |
|---|---|
| Certification | 80Plus Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 647 mm |
| Height | 452 mm |
Technical details
| Specification | Value |
|---|---|
| Number of storage drives supported | 8 |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Avago 9440-8i |
| Motherboard manufacturer | Supermicro |
