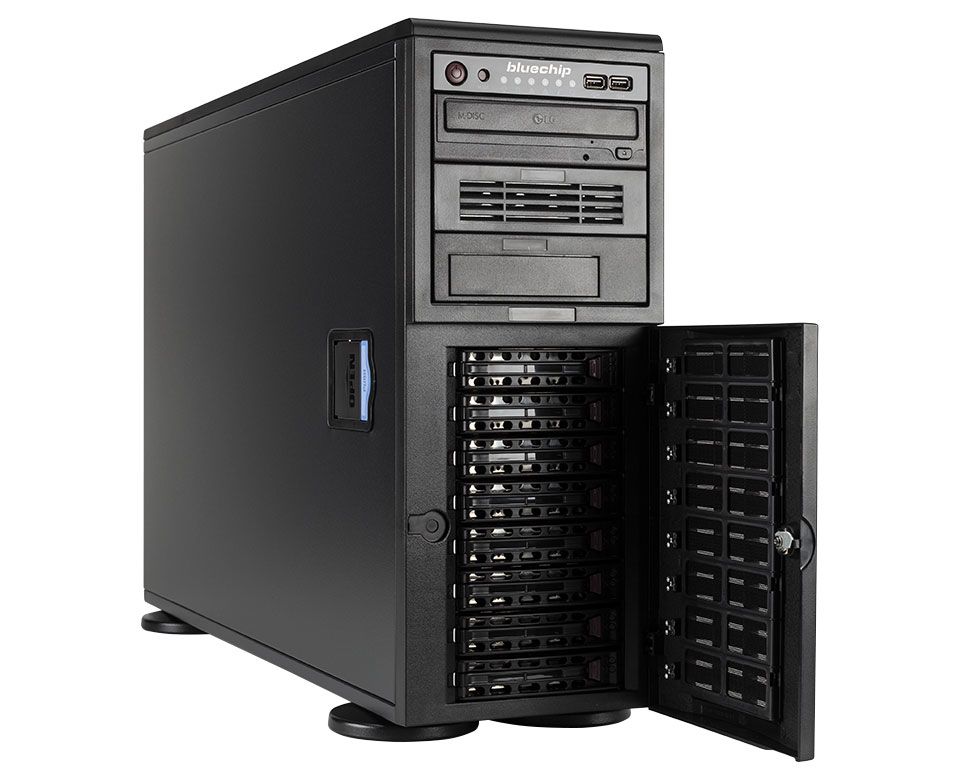

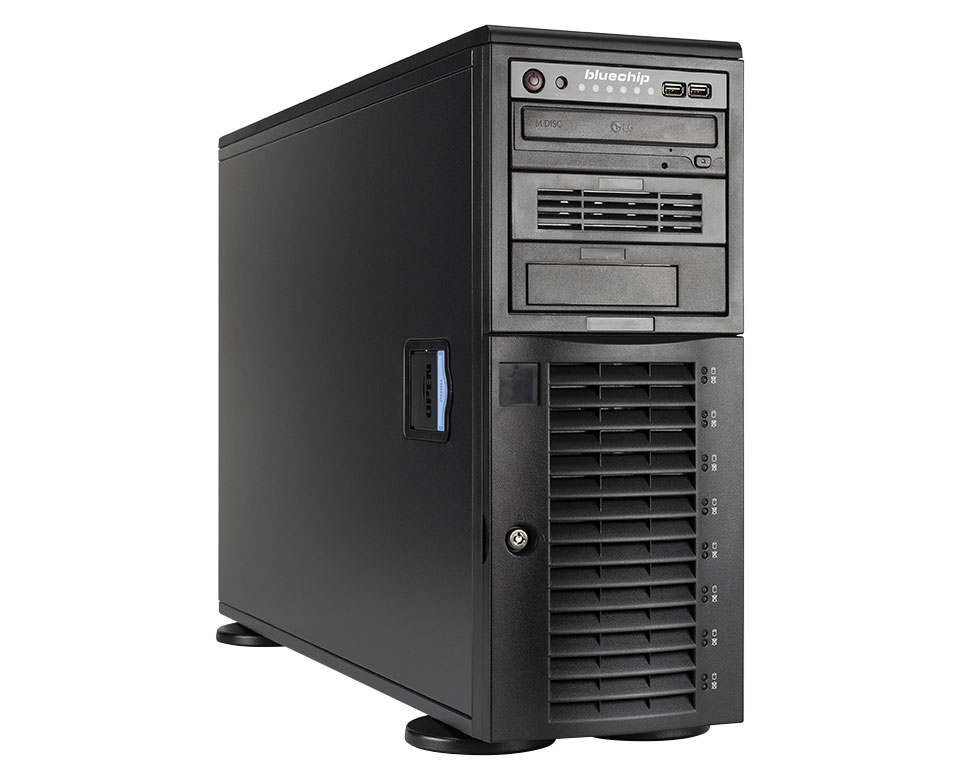

SERVERline T50303s
Model SERVERline T50303sPart no. 850235EAN 4250749700297
84 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage2 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T50303s
- Part numbers
- 850235, 850438
- EAN / UPC
- 4250749700297, 4250749705551
- Also known as
- bluechip SERVERline T50303s
Specifications
84 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4210 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Motherboard chipset | Intel® C621 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Maximum number of SMP processors | 2 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 20 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 78 °C |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 16x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4U) |
| Product colour | Black |

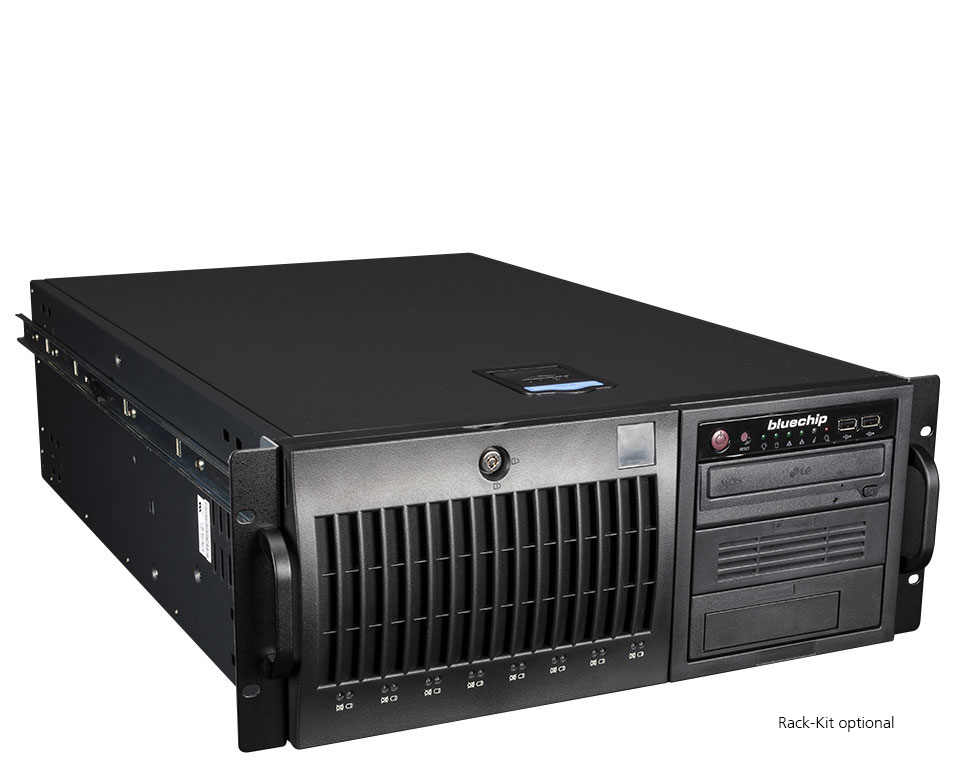

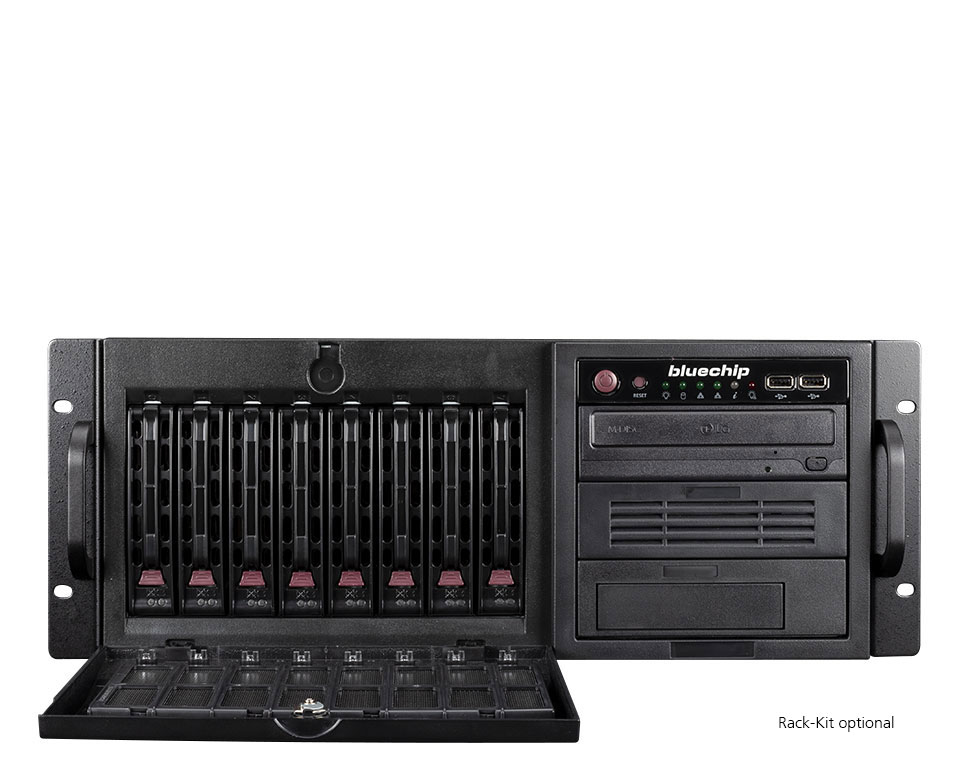

| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193384 |
Power
| Specification | Value |
|---|---|
| Power supply | 1280 W |
Certificates
| Specification | Value |
|---|---|
| Certification | 80Plus Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 647 mm |
| Height | 452 mm |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Intel RSTe |
| Motherboard manufacturer | Supermicro |
