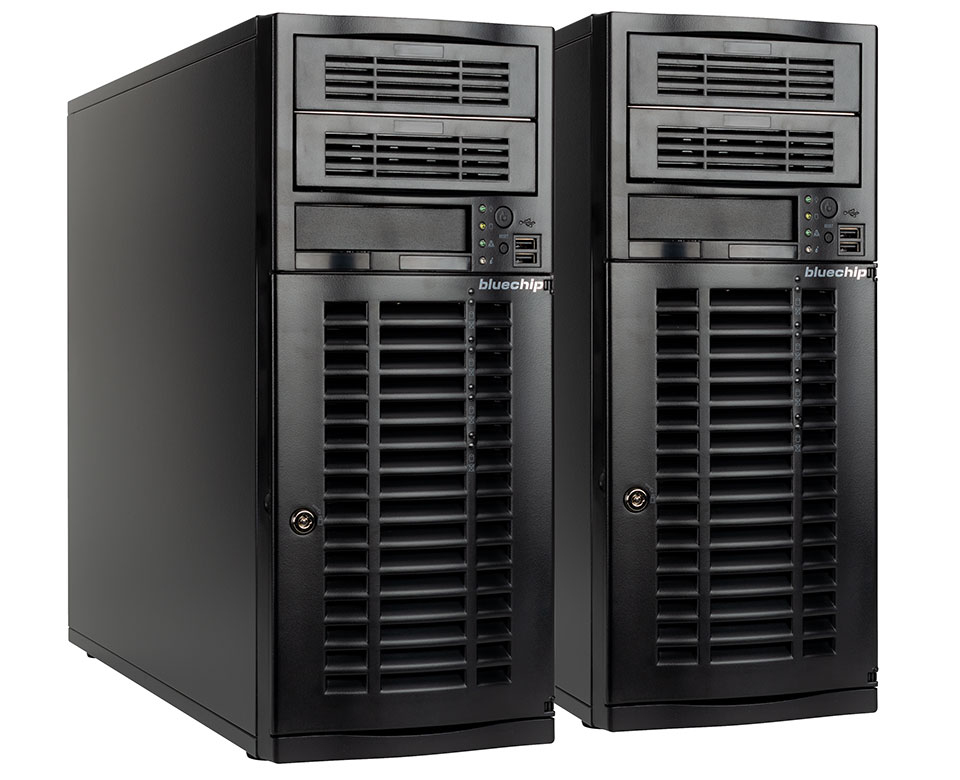

SERVERline T40331s *Collax HA-Edition*
Model SERVERline T40331s *Collax HA-Edition*Part no. 850714EAN 4250749712191
50 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage1.92 TB
- OSCollax V-Bien
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- Collax V-Bien
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T40331s *Collax HA-Edition*
- Part numbers
- 850714, 850605
- EAN / UPC
- 4250749712191, 4250749709160
- Also known as
- bluechip SERVERline T40331s *Collax HA-Edition* Tower, AMD EPYC™ 9124 Prozessor / bis zu 3.70 GHz, 32 GB DDR5, Avago 9560-8i, 2 x 960 GB SSD, 4 x 10 Gigabit Eth
Specifications
50 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYC™ 9004 Series |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Processor socket | Socket SP5 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50, 60, JBOD |
| Supported RAID controllers | Avago 9560-8i |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom BCM57416, Intel® X550 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Collax V-Bien |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 668 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 531 mm |
| Height | 426 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro H13SSL-NT |
