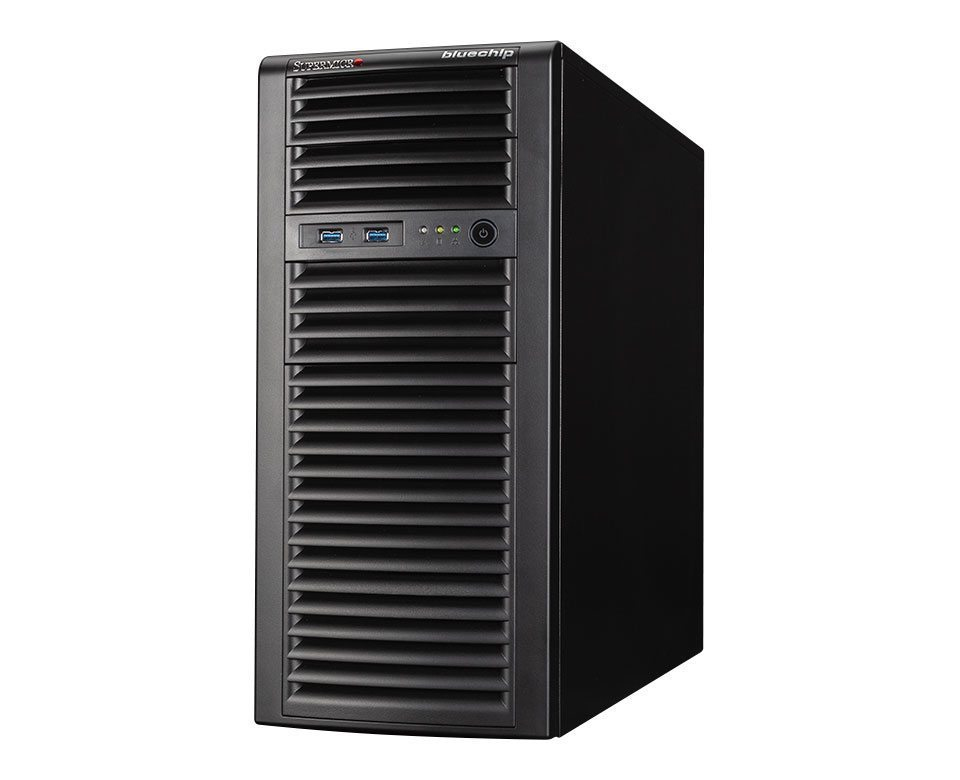

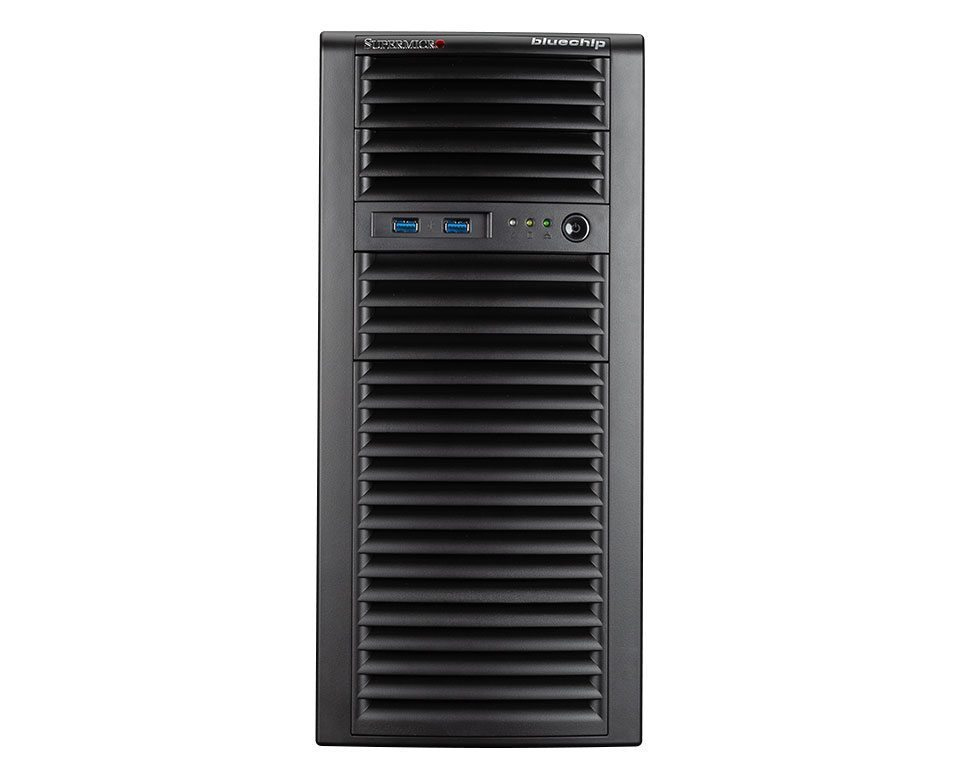

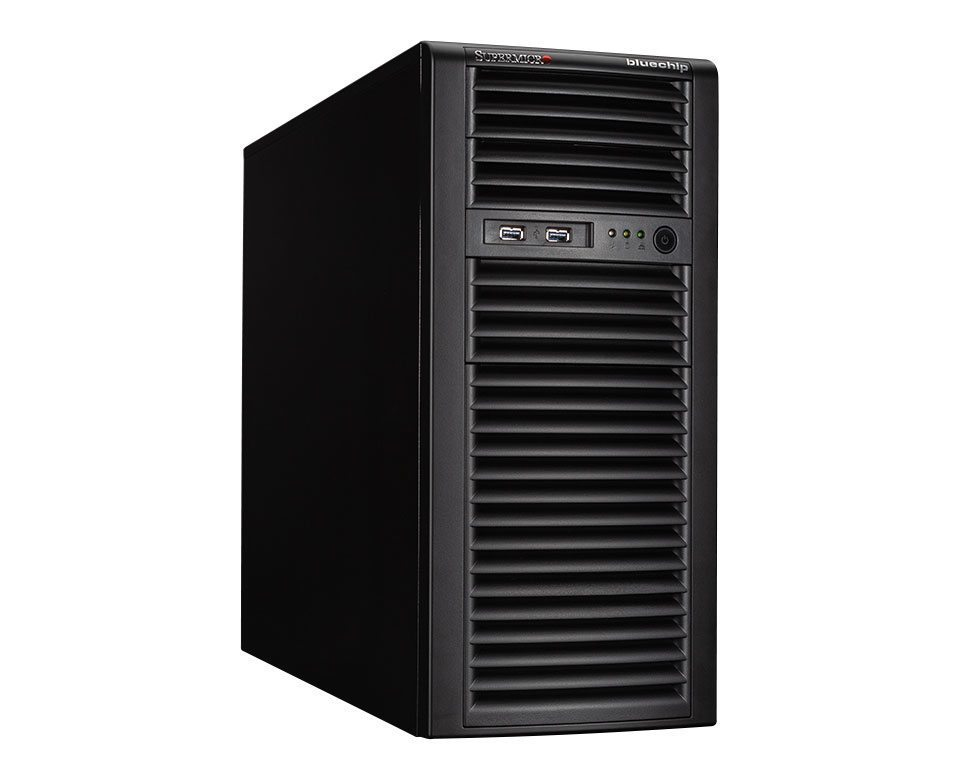

SERVERline T40306s
Model SERVERline T40306sPart no. 850387EAN 4250749703182
45 specifications
- ProcessorAMD EPYC
- Memory16 GB
- Storage480 GB
- ColourBlack
- Processor manufacturerAMD
- On-board graphics cardYes
Overview
- Processor
- AMD EPYC
- Memory
- 16 GB
- Storage
- 480 GB
- Colour
- Black
- Processor manufacturer
- AMD
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T40306s
- Part numbers
- 850387, 850411
- EAN / UPC
- 4250749703182, 4250749704103
- Also known as
- bluechip SERVERline T40306s
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7252 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 64 MB |
| Processor socket | Socket SP3 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 8x DIMM |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50 |
| Hot-swap | No |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 668 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 525 mm |
| Height | 424 mm |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Avago 9440-8i |
| Motherboard manufacturer | Supermicro |
| Number of drive bays | 4 |
