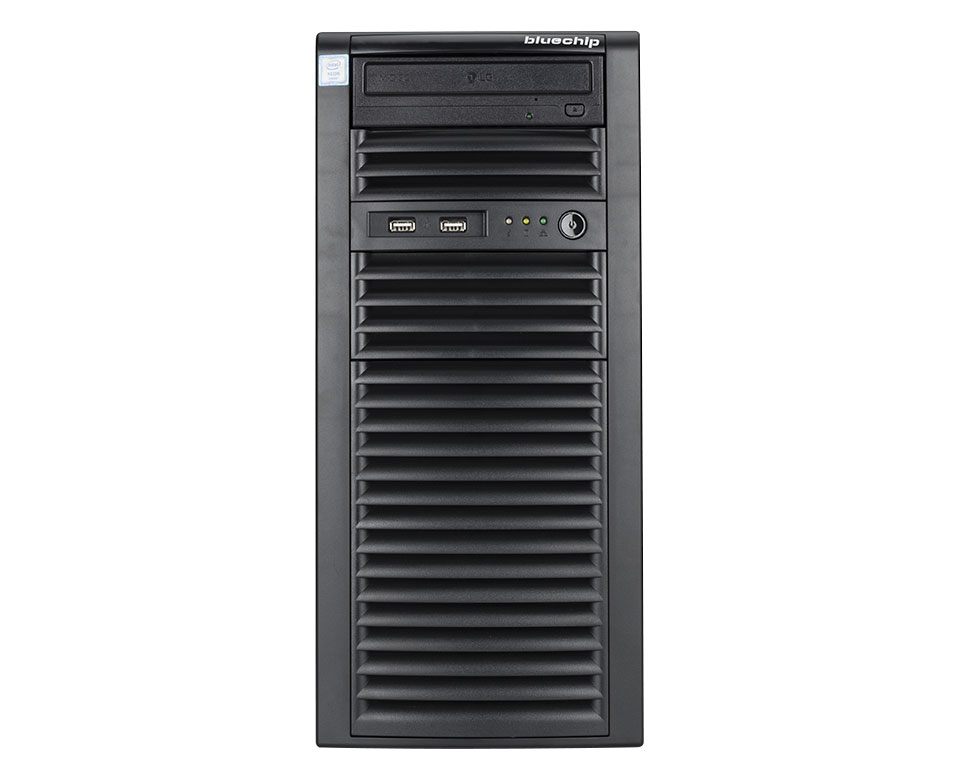

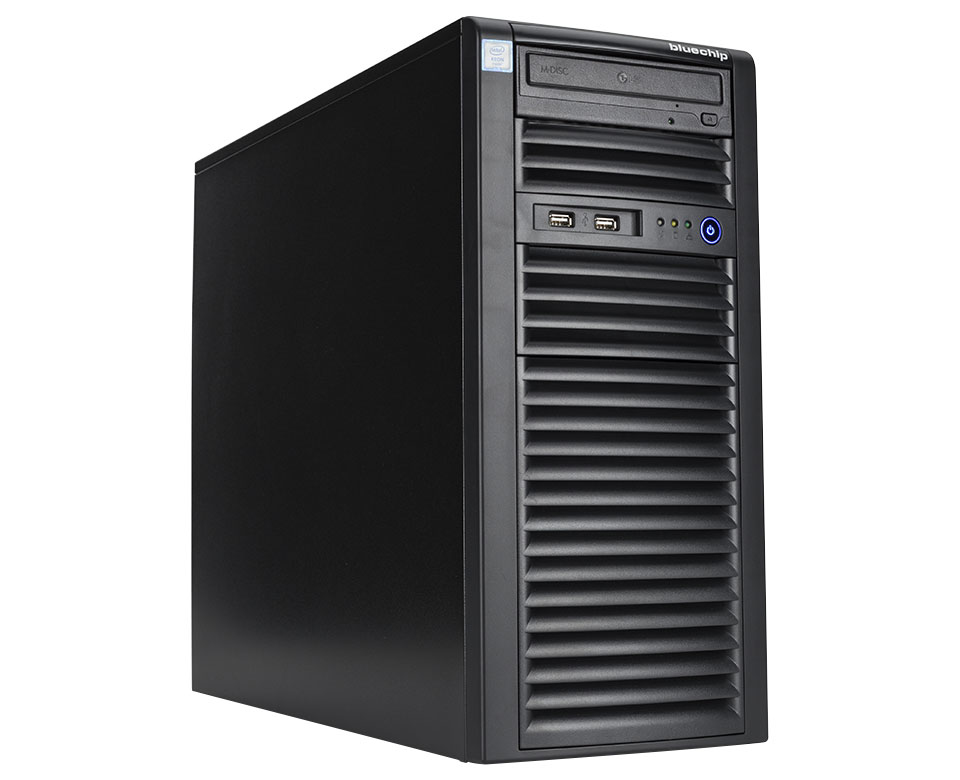

SERVERline T40305s
Model SERVERline T40305sPart no. 850277EAN 4250749700570
102 specifications
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage480 GB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 480 GB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T40305s
- Part number
- 850277
- EAN / UPC
- 4250749700570
- Also known as
- bluechip SERVERline T40305s
Specifications
102 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | W-2123 |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 4 |
| Processor cache | 8.25 MB |
| Motherboard chipset | Intel® C422 |
| Thermal Design Power (TDP) | 120 W |
| System bus rate | 0 GT/s |
| Bus type | QPI |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 512 GB |
| Maximum number of PCI Express lanes | 48 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR3LJ |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor package size | 45 x 52.5 mm |
| Processor socket | LGA 2066 (Socket R4) |
| Processor threads | 8 |
| Scalability | 1S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Supported HDD sizes | 2.5,3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 240 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | No |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 125036 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Certificates
| Specification | Value |
|---|---|
| Certification | 80Plus Bronze |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 525 mm |
| Height | 424 mm |
Technical details
| Specification | Value |
|---|---|
| Number of storage drives supported | 12 |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Intel RSTe |
| Motherboard manufacturer | Supermicro |
