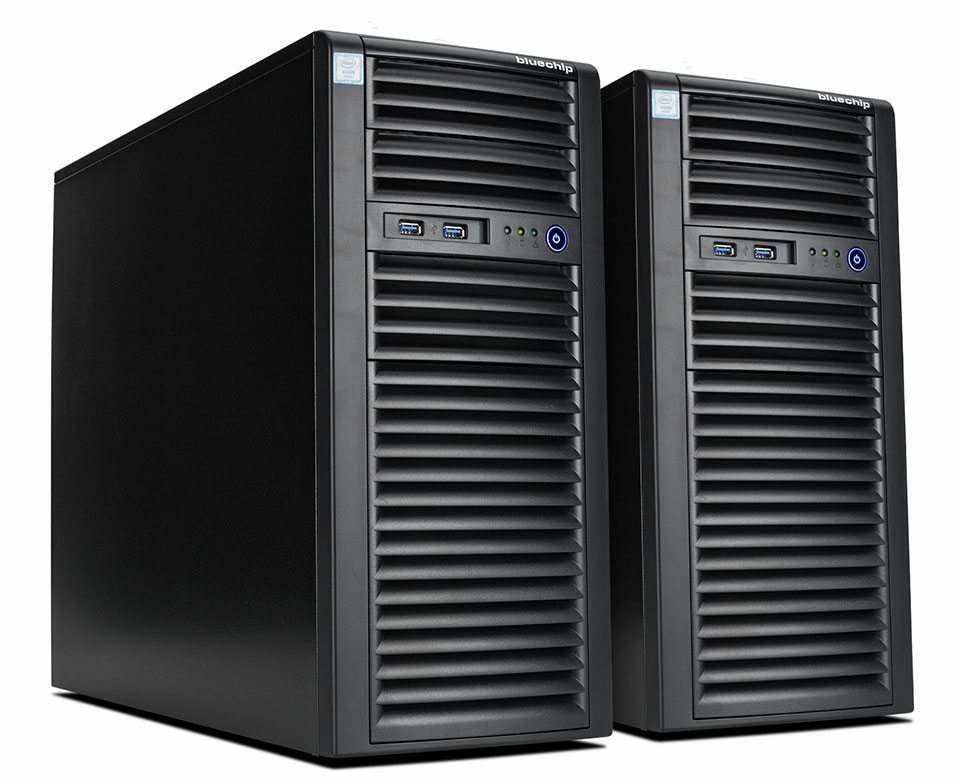

SERVERline T30329s *Collax HA-Edition*
Model SERVERline T30329s *Collax HA-Edition*Part no. 850713EAN 4250749712184
48 specifications
- ProcessorIntel Xeon 6
- Memory32 GB
- Storage1.92 TB
- OSCollax V-Bien
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon 6
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- Collax V-Bien
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T30329s *Collax HA-Edition*
- Part numbers
- 850713, 850561
- EAN / UPC
- 4250749712184, 4250749707968
- Also known as
- bluechip SERVERline T30329s *Collax HA-Edition* Tower, Intel® Xeon® 6333P Prozessor / bis zu 4.60 GHz, 32 GB DDR5, Avago 9560-8i, 2 x 960 GB SSD, 2 x 10 Gb/s Et
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Processor model | 6333P |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 5.2 GHz |
| Processor cores | 6 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported RAID controllers | Avago 9560-8i |
| Hot-swap | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller | Intel I210, Intel® X550 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Collax V-Bien |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 525 mm |
| Height | 424 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro X13SCL-F |
