bluechip SERVERline T30328a: Full Specifications

Overview

Processor: Intel Xeon E
Memory: 32 GB
Storage: 1.92 TB
Colour: Black
Processor manufacturer: Intel
On-board graphics card: Yes

Brand: bluechip
Category: Server
Model: SERVERline T30328a
Part numbers: 850646, 850454, 850505
EAN / UPC: 4250749706756, 4250749710647, 4250749705780
Also known as: bluechip SERVERline T30328a Silent/Quiet-Server, Tower, Intel® Xeon® E-2324G Prozessor / bis zu 4.60 GHz, 32 GB DDR4, 2 x 960 GB SSD, 2 x Gigabit Ethernet, TPM-

Specifications

51 specifications in 13 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2324G
Processor frequency	3.1 GHz
Processor boost frequency	4.6 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel C256
Number of processors installed	1
Processor socket	LGA 1200 (Socket H5)
Intelligent Platform Management Interface (IPMI) support	Yes

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Memory clock speed	3200 MHz
Memory layout (slots x size)	2 x 16 GB
Memory slots	4x DIMM
Maximum internal memory	128 GB

Storage

Specification	Value
Total storage capacity	1.92 TB
Number of SSDs installed	2
SSD capacity	960 GB
SSD interface	SATA III
SSD size	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 10
Supported RAID controllers	Intel RSTe
Hot-swap	Yes
Internal drive bays	8
Supported storage drive interfaces	SAS, Serial ATA

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Aspeed
On-board graphics card model	Aspeed AST2600

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x8 (Gen 3.x) slots	2
PCI Express x8 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1

Design

Specification	Value

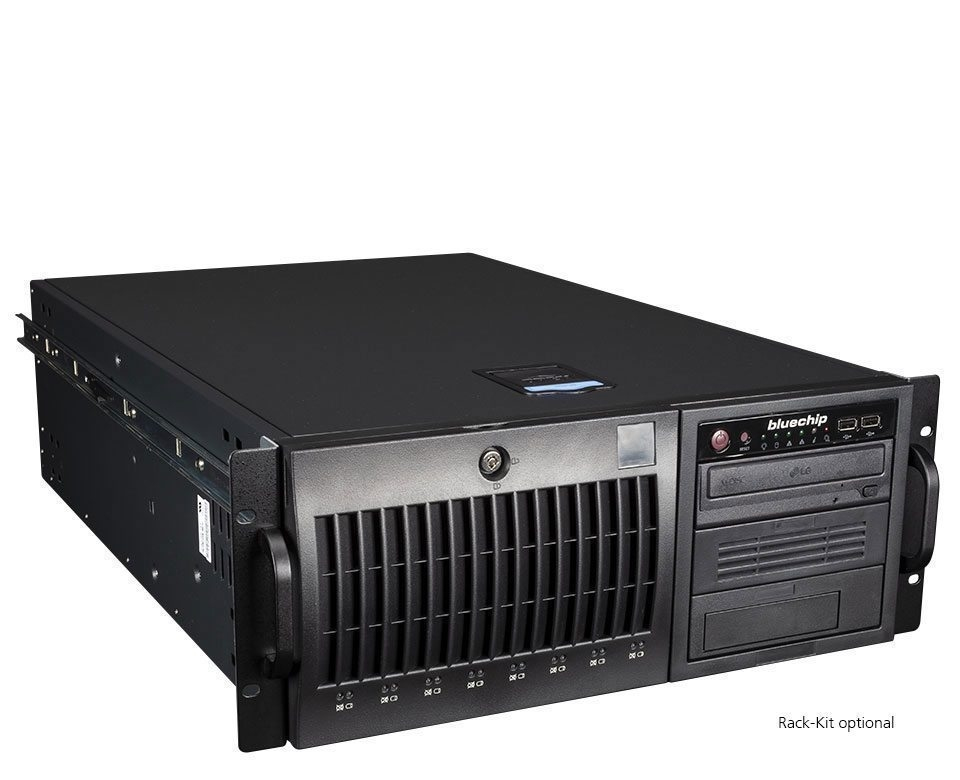

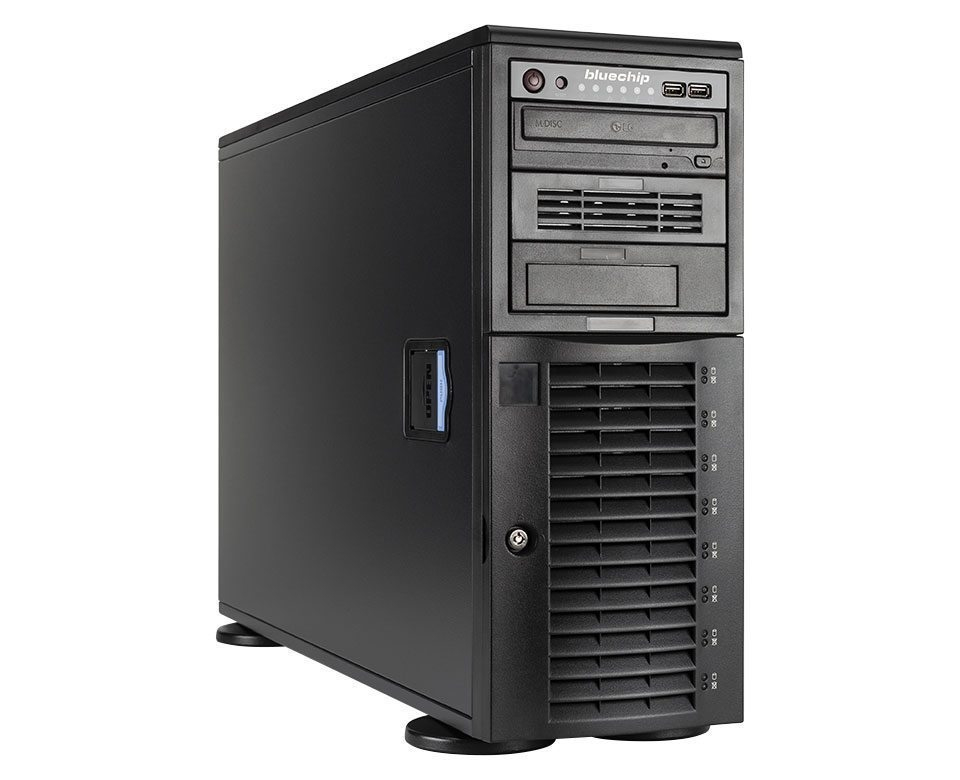

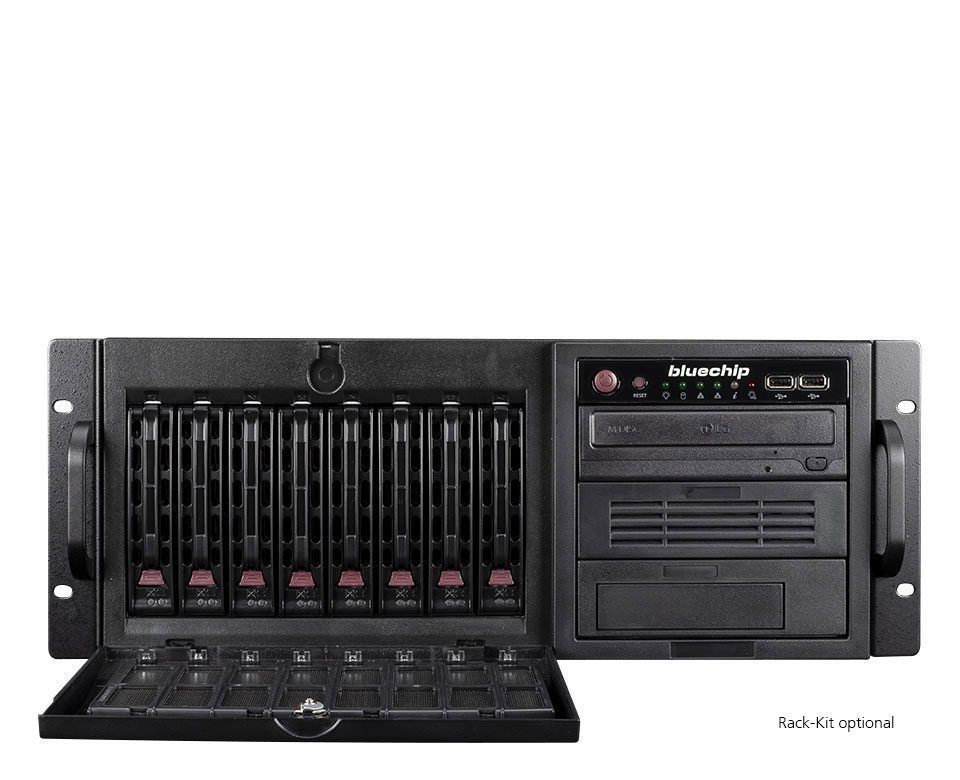

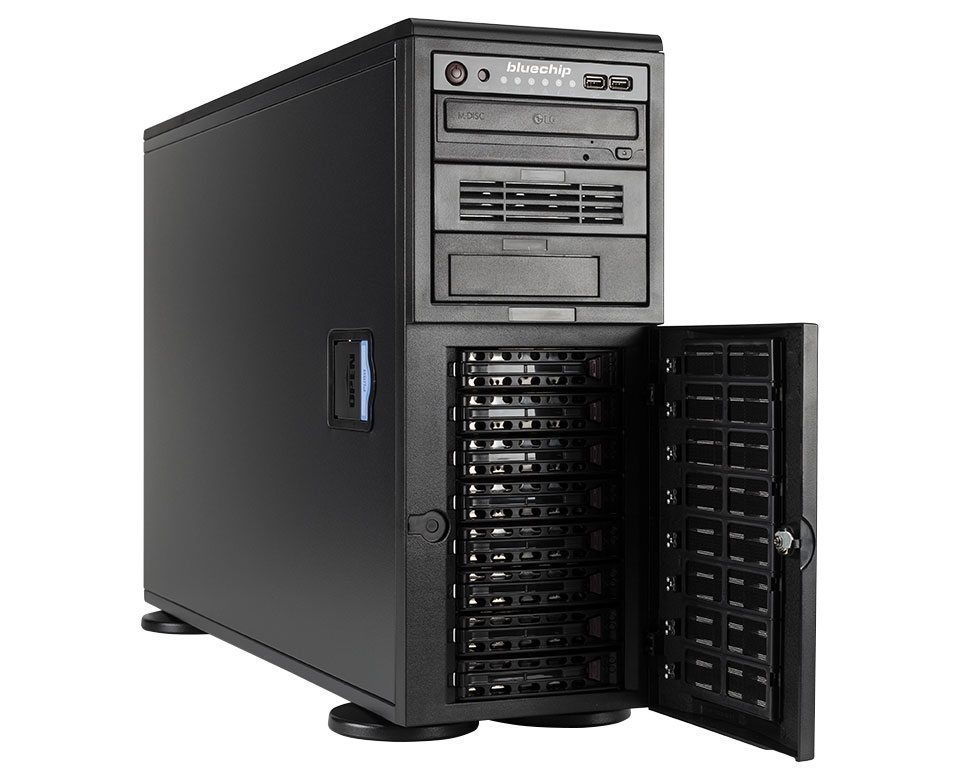

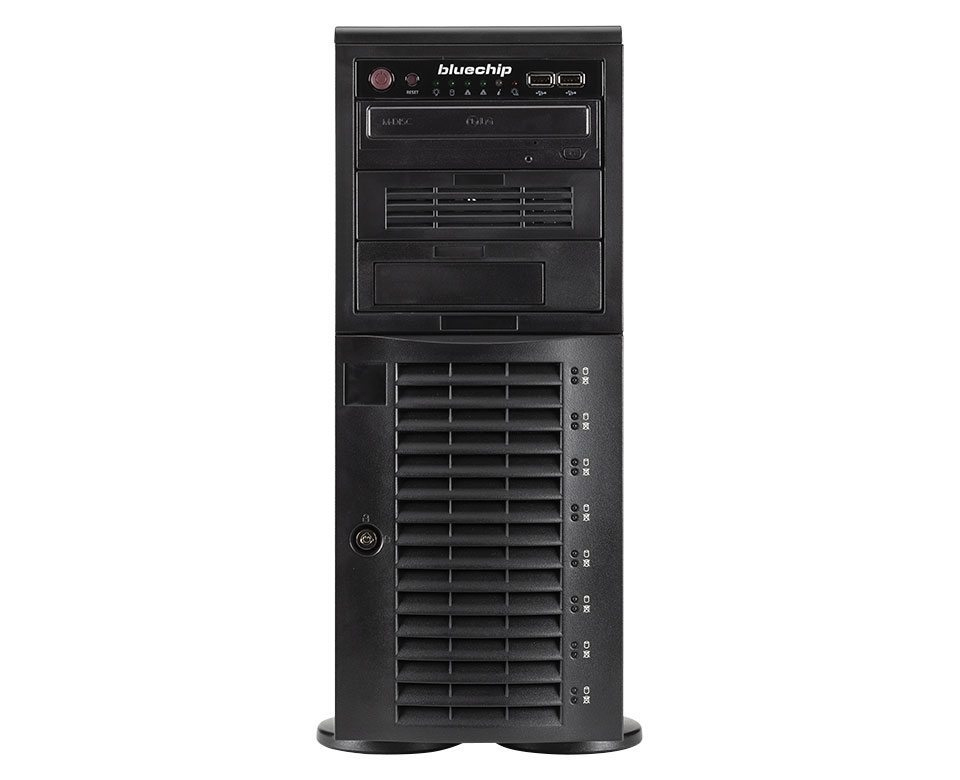

Chassis type	Tower (4U)
Product colour	Black

Performance

Specification	Value
Trusted Platform Module (TPM)	Yes

Power

Specification	Value
Power supply	1280 W

Certificates

Specification	Value
80 PLUS certification	80 PLUS Platinum

Weight & dimensions

Specification	Value
Width	178 mm
Depth	647 mm
Height	452 mm

Technical details

Specification	Value
Supported storage drives form factor (internal)	2.5"/3.5"

Other features

Specification	Value
Motherboard manufacturer	ASUS P12R-E incl. TPM module
