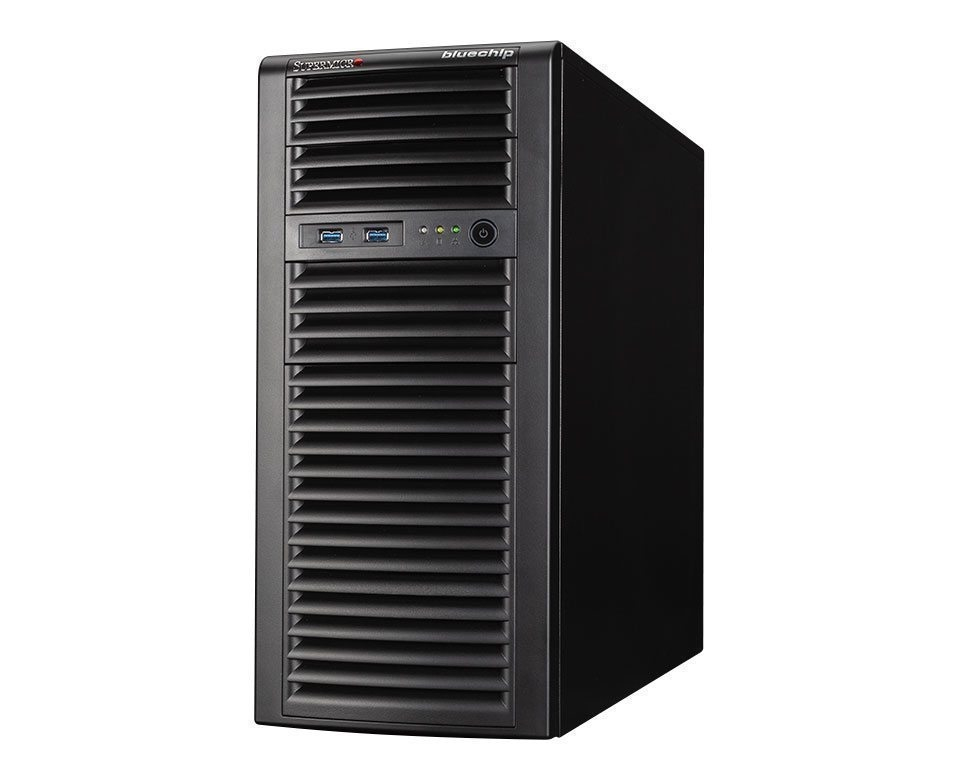

SERVERline T30326a
Model SERVERline T30326aPart no. 850647EAN 4250749706763
53 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- Storage1.92 TB
- Processor manufacturerIntel
- On-board graphics cardYes
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- Storage
- 1.92 TB
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T30326a
- Part numbers
- 850647, 850452, 850506
- EAN / UPC
- 4250749706763, 4250749710654, 4250749705766
- Also known as
- bluechip SERVERline T30326a Silent/Quiet-Server, Tower, Intel® Xeon® E-2324G Prozessor / bis zu 4.60 GHz, 32 GB DDR4, 2 x 960 GB SSD, 2 x Gigabit Ethernet, TPM-
Specifications
53 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2324G |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C256 |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | Intel RSTe |
| Hot-swap | No |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 668 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 193 mm |
| Depth | 425 mm |
| Height | 424 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" / 3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS P12R-E incl. TPM module |
