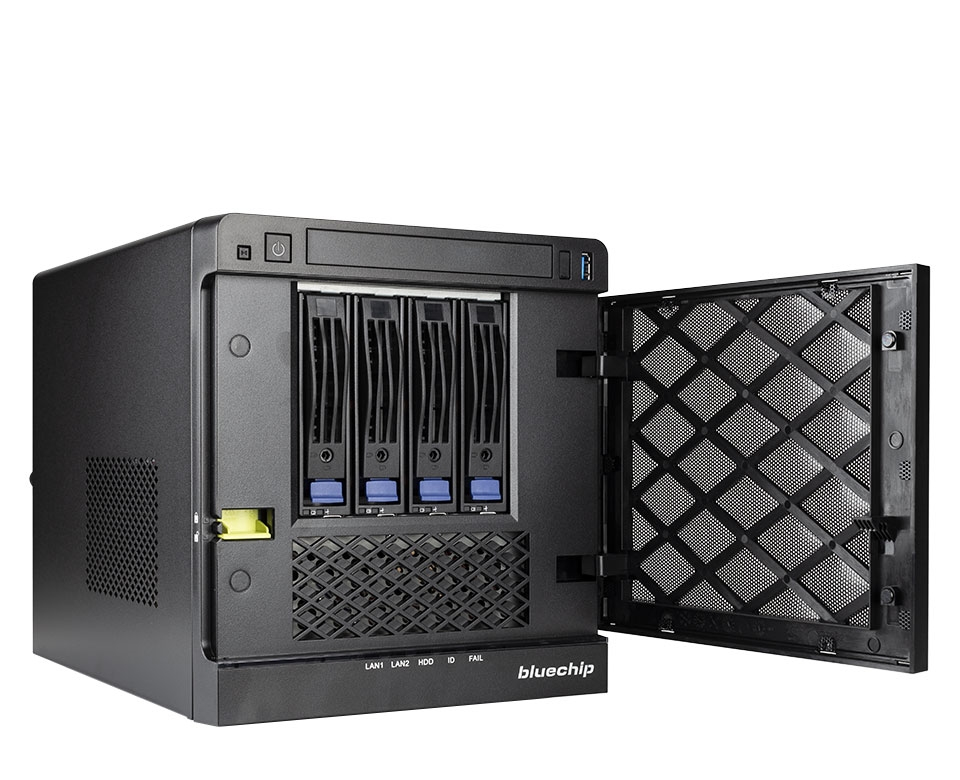

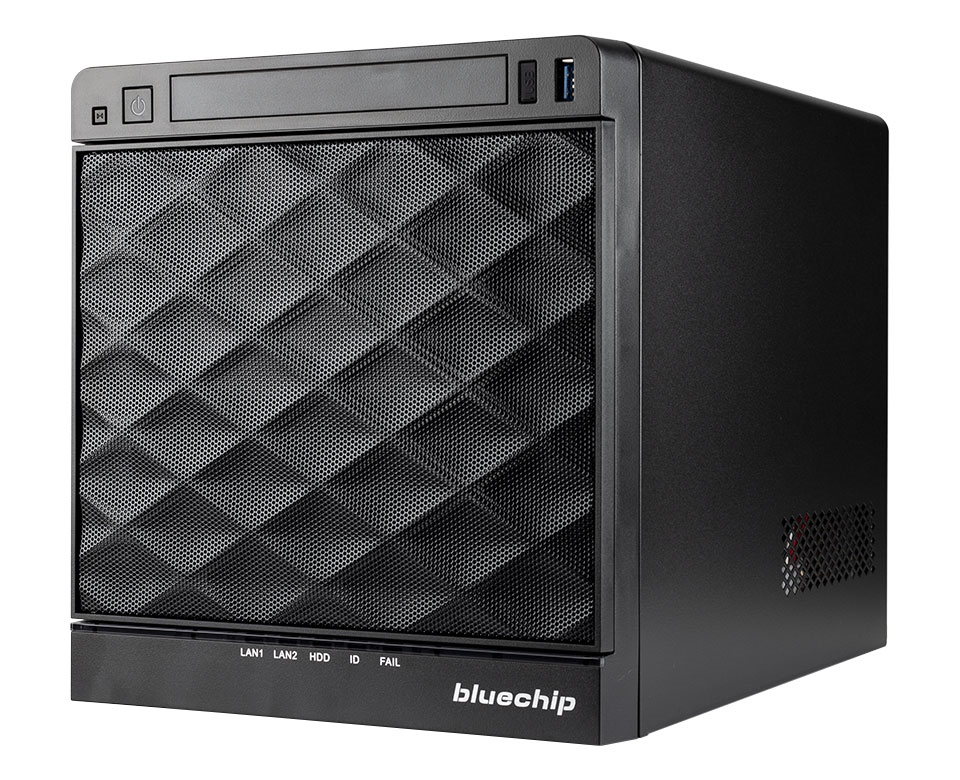

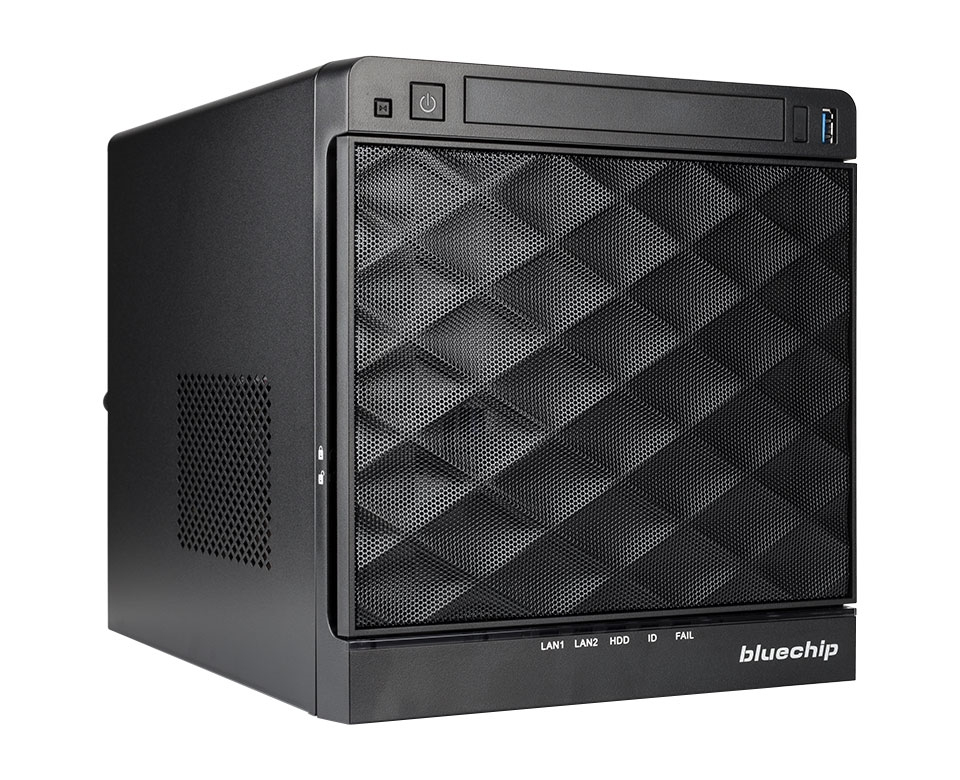

SERVERline T30320a * Mini-Server *
Model SERVERline T30320a * Mini-Server *Part no. 850500EAN 4250749706695
48 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage1.92 TB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 1.92 TB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T30320a * Mini-Server *
- Part number
- 850500
- EAN / UPC
- 4250749706695
- Also known as
- bluechip SERVERline T30320a * Mini-Server *
Specifications
48 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2334 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C252 |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5", 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | Intel RSTe |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 265 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 305 mm |
| Height | 230 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS P12R-I |
