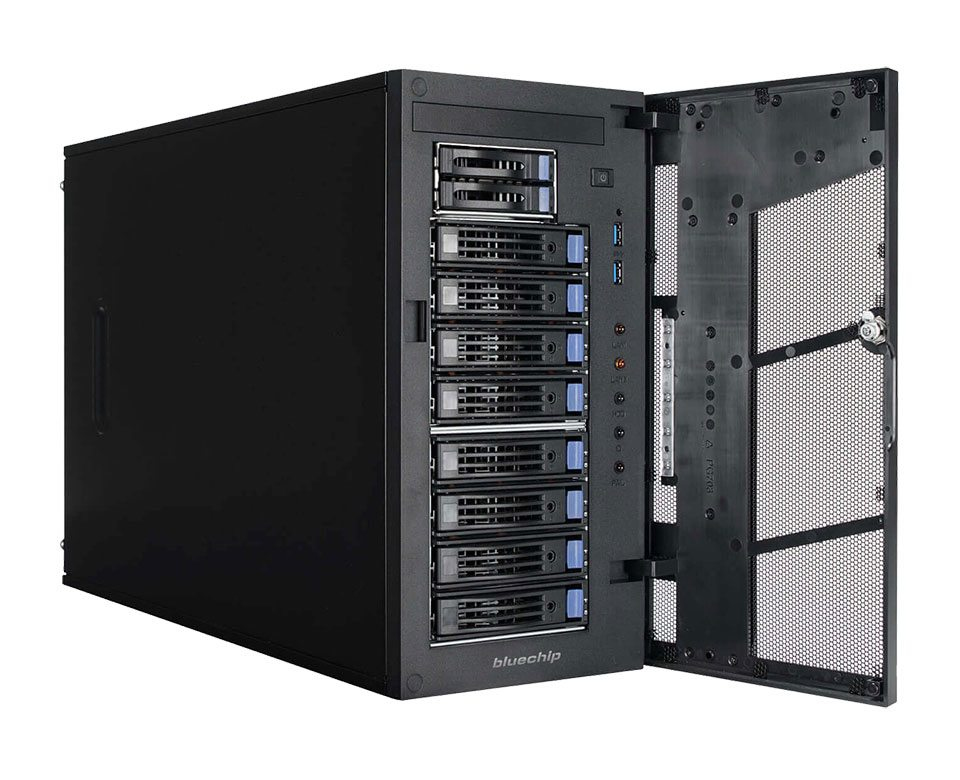

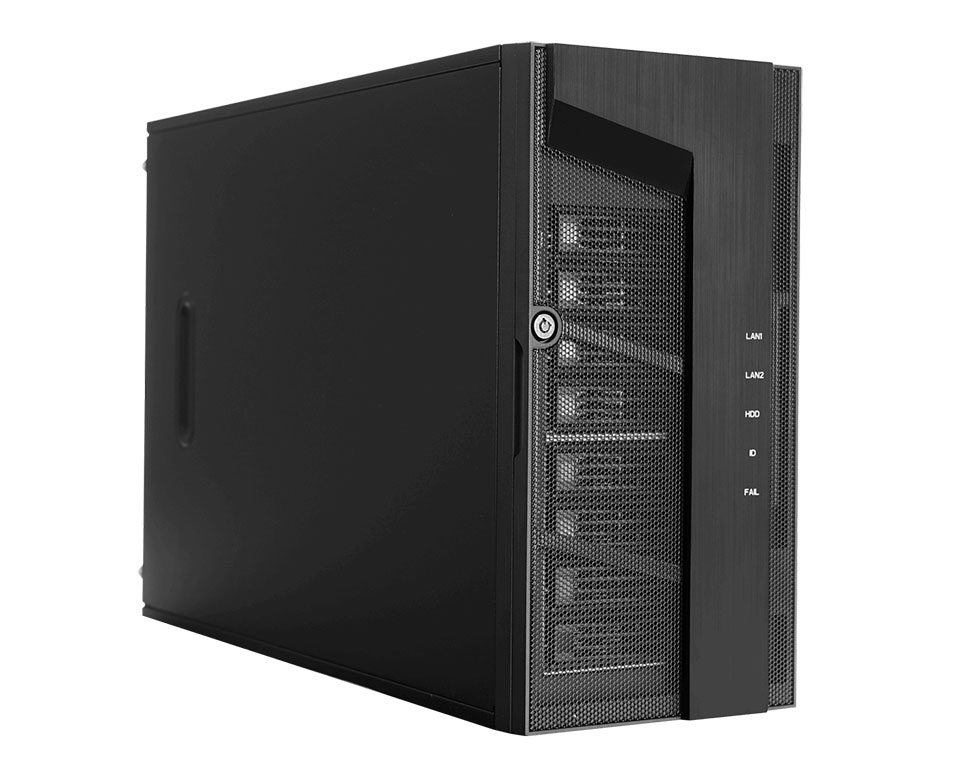

SERVERline T30317a
Model SERVERline T30317aPart no. 850360EAN 4250749701874
101 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage960 GB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 960 GB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T30317a
- Part number
- 850360
- EAN / UPC
- 4250749701874
- Also known as
- bluechip SERVERline T30317a
Specifications
101 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224G |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C246 |
| Thermal Design Power (TDP) | 71 W |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Maximum number of SMP processors | 1 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Tcase | 69.3 °C |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Supported HDD sizes | 2.5,3.5" |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum on-board graphics card memory | 128 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E96 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 191037 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 500 W |
Certificates
| Specification | Value |
|---|---|
| Certification | 80Plus Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 513 mm |
| Height | 340 mm |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 8 |
| Number of storage drives supported | 8 |
Other features
| Specification | Value |
|---|---|
| Storage drive controller | Intel RSTe |
| Motherboard manufacturer | ASUS |
