SERVERline T10302s
Model SERVERline T10302sPart no. 850248EAN 4250749700372
82 specifications
- ProcessorIntel Atom®
- Memory16 GB
- Storage1 TB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Atom®
- Memory
- 16 GB
- Storage
- 1 TB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline T10302s
- Part numbers
- 850248, 850502
- EAN / UPC
- 4250749700372, 4250749706701
- Also known as
- bluechip SERVERline T10302s
Specifications
82 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3558 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Thermal Design Power (TDP) | 16 W |
| Processor cache type | Smart Cache |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 256 GB |
| Maximum number of PCI Express lanes | 12 |
| Maximum number of SMP processors | 1 |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 0 |
| Processor code | SR388 |
| Processor codename | Denverton |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 34 x 28 mm |
| Processor socket | BGA 1310 |
| Processor threads | 4 |
| Stepping | B1 |
| Tcase | 83 °C |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Supported HDD sizes | 2.5,3.5" |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Supported storage drive interfaces | Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2400 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |

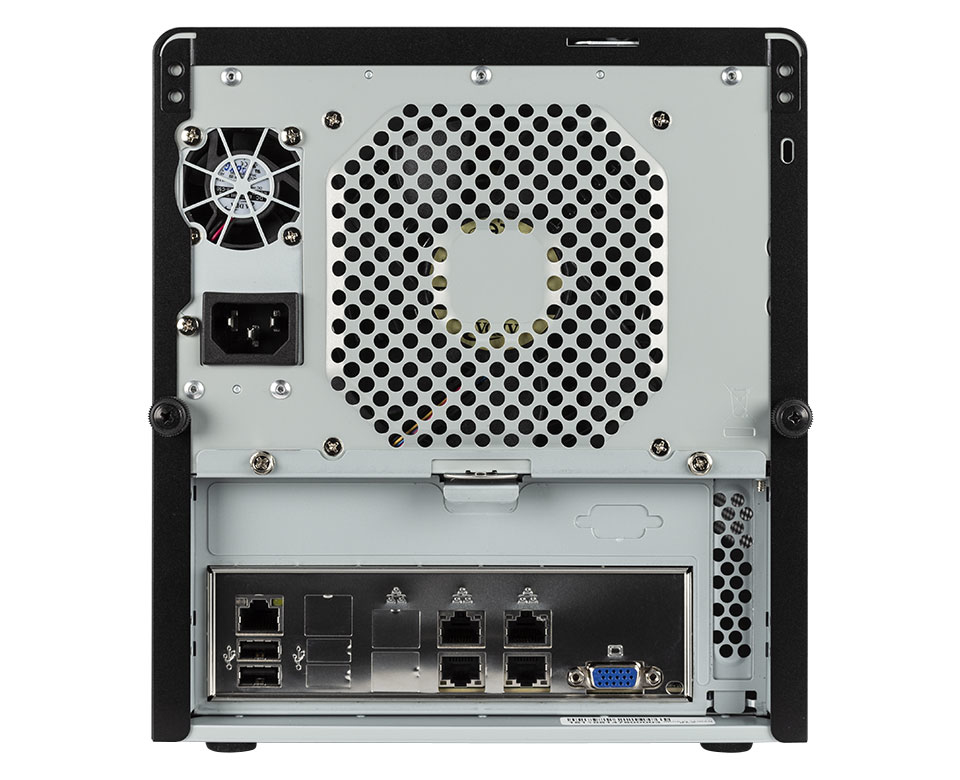

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 0 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Product colour | Black |
| Rack mounting | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Intel QuickAssist Technology | Yes |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 97937 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 265 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 275 mm |
| Height | 230 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro |
