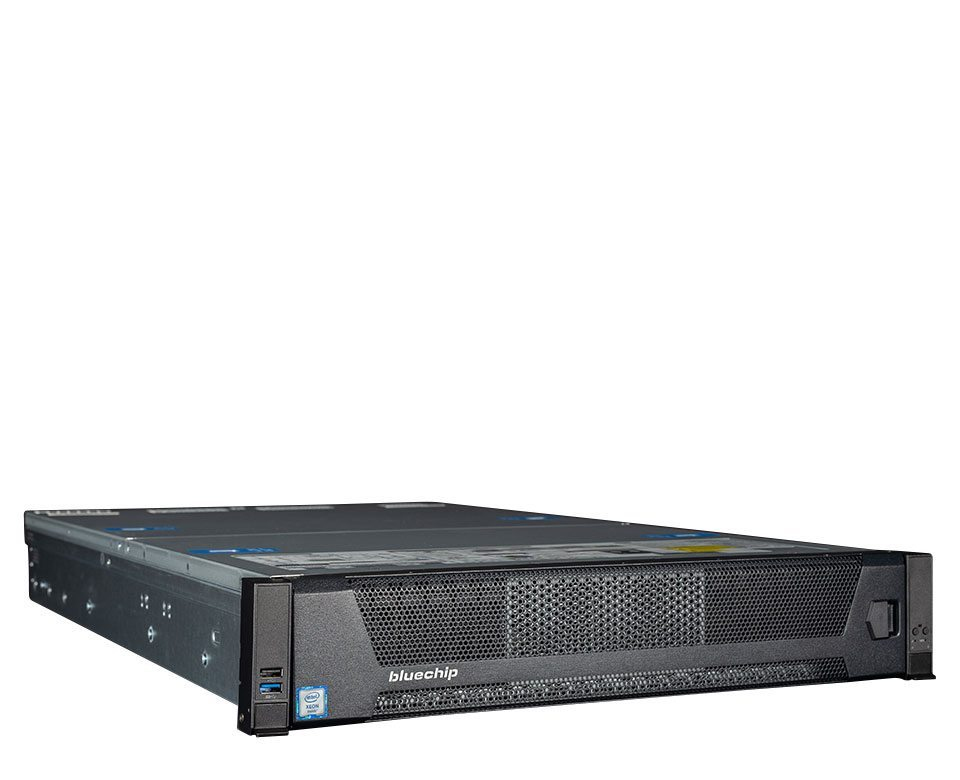

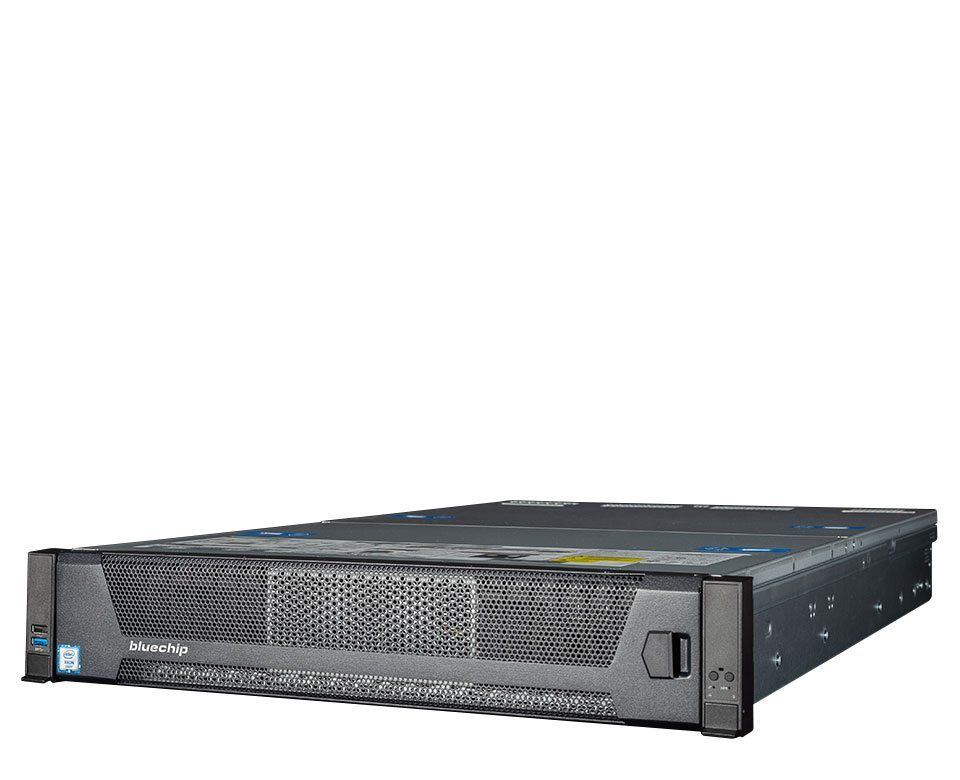

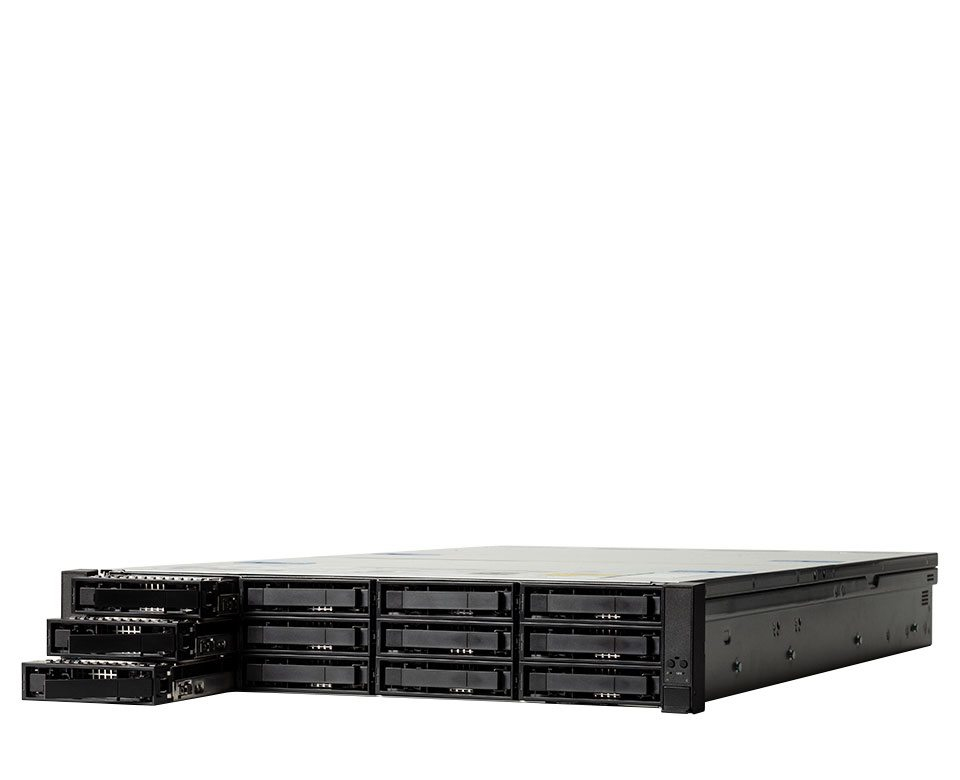

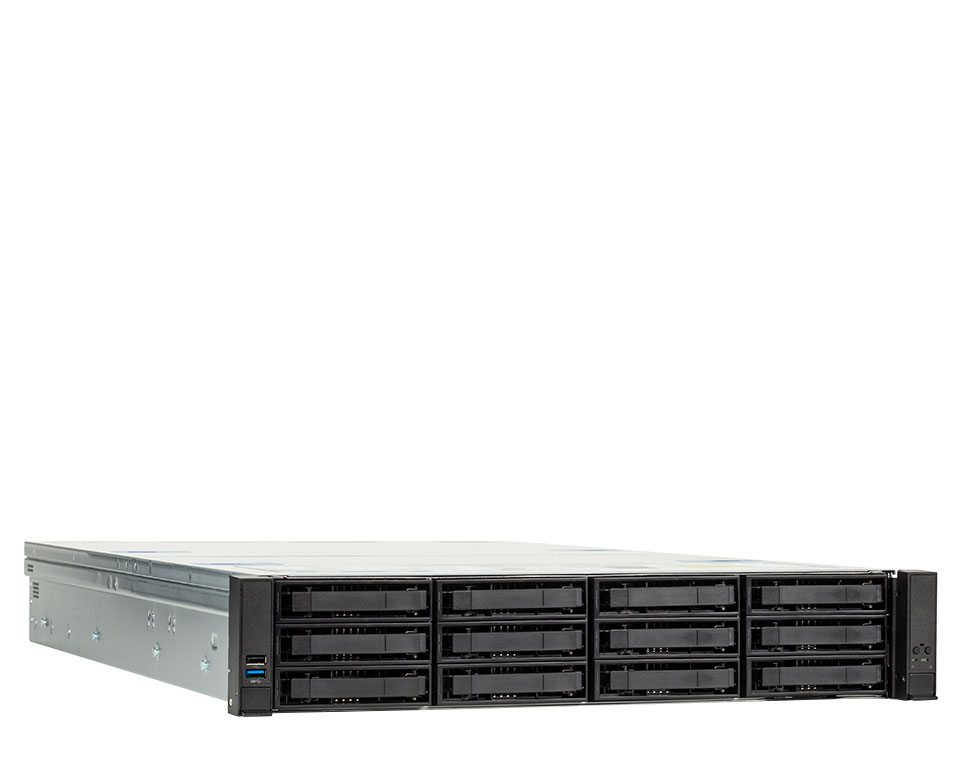

SERVERline R72318i+
Model SERVERline R72318i+Part no. 850390EAN 4250749703526
44 specifications
- ProcessorIntel Xeon Silver
- Memory64 GB
- Storage480 GB
- ColourBlack, Silver
- Processor manufacturerIntel
- Ethernet LANYes
Overview
- Processor
- Intel Xeon Silver
- Memory
- 64 GB
- Storage
- 480 GB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R72318i+
- Part number
- 850390
- EAN / UPC
- 4250749703526
- Also known as
- bluechip SERVERline R72318i+
Specifications
44 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 12 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 2 |
| Processor socket | LGA 4189 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 32x DIMM |
| Maximum internal memory | 12 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 240 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-T2L |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 4.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446 mm |
| Depth | 770 mm |
| Height | 87 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Intel |
| Storage drive type | SAS, SATA |
