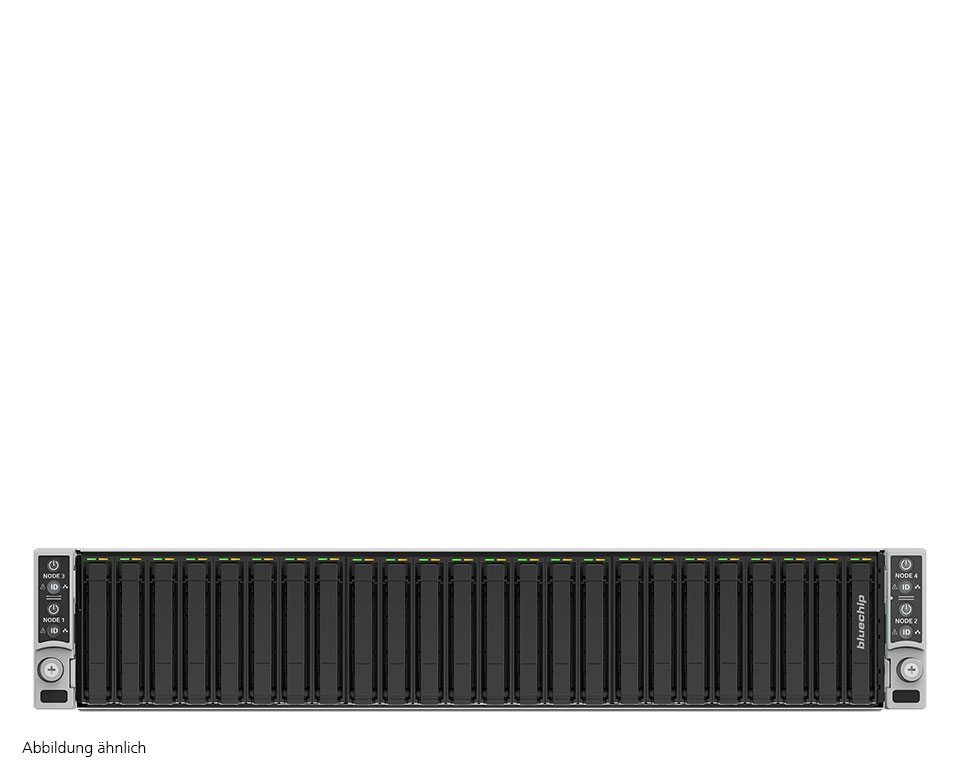

SERVERline R72205i for Azure Stack HCI
Model SERVERline R72205i for Azure Stack HCIPart no. 850295
64 specifications
- ProcessorIntel® Xeon® Gold
- Memory128 GB
- Storage8.7 TB
- Processor manufacturerIntel
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 128 GB
- Storage
- 8.7 TB
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R72205i for Azure Stack HCI
- Part number
- 850295
- Also known as
- bluechip SERVERline R72205i for Azure Stack HCI
Specifications
64 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 5115 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Motherboard chipset | Intel C622 |
| Number of processors installed | 8 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GB |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 20 |
| Scalability | 4S |
| Stepping | H0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 76 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 16x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8.7 TB |
| SSD capacity | 8.7 TB |
| SSD interface | SATA III |
| SSD size | 2.5", M.2 |
| RAID support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express slots version | 3.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120484 |
Power
| Specification | Value |
|---|---|
| Power supply | 2130 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 733 mm |
| Height | 88 mm |
