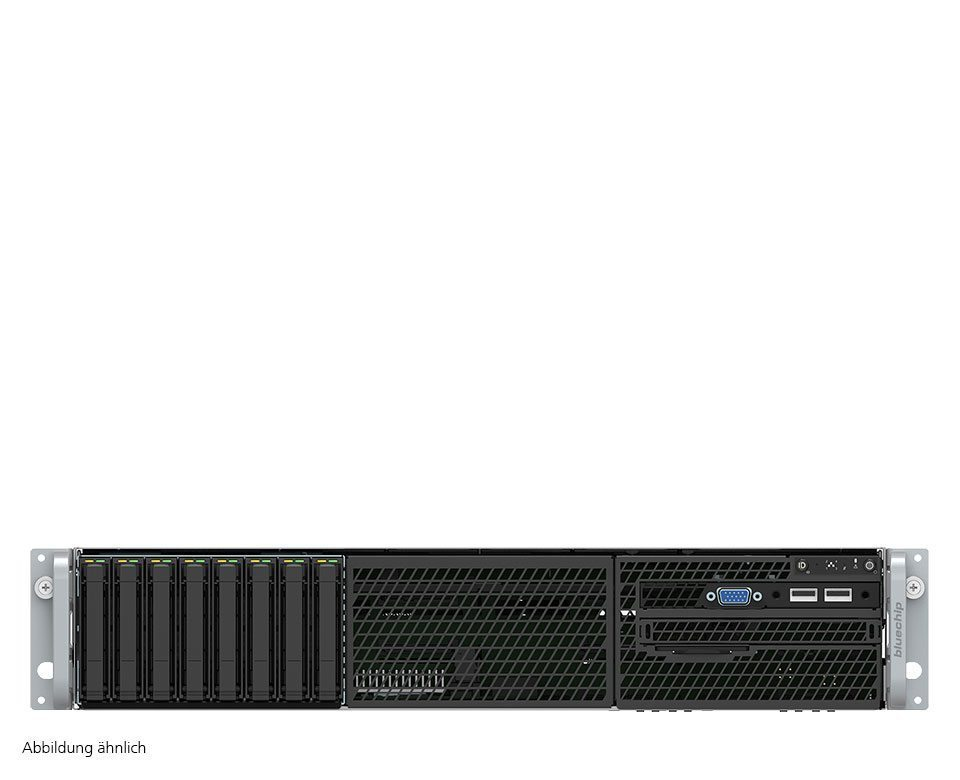

SERVERline R72202i for Azure Stack HCI
Model SERVERline R72202i for Azure Stack HCIPart no. 850292
67 specifications
- ProcessorIntel® Xeon® Gold
- Memory384 GB
- Storage15 TB
- Processor manufacturerIntel
- Cabling technology10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports4
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 384 GB
- Storage
- 15 TB
- Processor manufacturer
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R72202i for Azure Stack HCI
- Part number
- 850292
- Also known as
- bluechip SERVERline R72202i for Azure Stack HCI
Specifications
67 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 5118 |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Motherboard chipset | Intel® C624 |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | L3 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GF |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 24 |
| Scalability | 4S |
| Stepping | M0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 81 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 384 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 12 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 1.46 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 15 TB |
| SSD capacity | 15 TB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD size | 2.5", M.2 |
| RAID support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120473 |
Power
| Specification | Value |
|---|---|
| Power supply | 1300 W |
