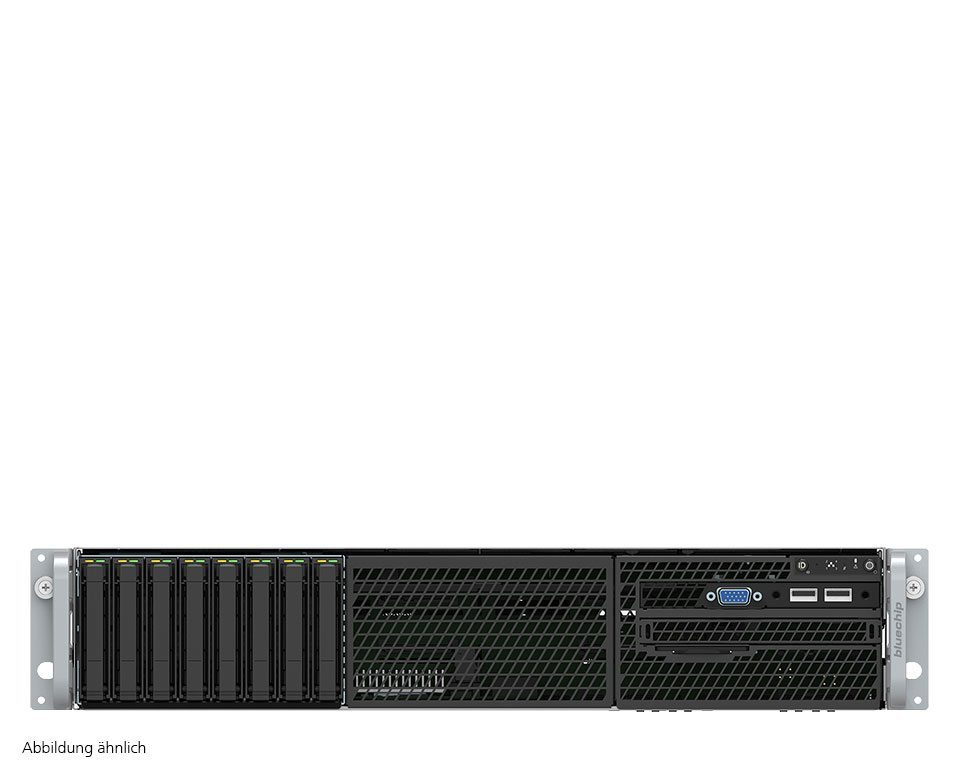

SERVERline R72201i for Azure Stack HCI
Model SERVERline R72201i for Azure Stack HCIPart no. 850291
87 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory384 GB
- Storage15.68 TB
- OSNo
- ColourBlack, Silver
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 384 GB
- Storage
- 15.68 TB
- OS
- No
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R72201i for Azure Stack HCI
- Part number
- 850291
- Also known as
- bluechip SERVERline R72201i for Azure Stack HCI
Specifications
87 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5120 |
| Processor frequency | 1.86 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Motherboard chipset | Intel® C624 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 7 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 2 |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 384 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Maximum internal memory | 768 MB |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 12 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 1.46 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 15.68 TB |
| Number of HDDs installed | 0 |
| SSD capacity | 15.68 TB |
| NVMe | Yes |
| SSD interface | M.2, NVMe 3.0 |
| RAID support | Yes |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Supported protocols | Ethernet Network Connection OCP X527-DA4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 6 |
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express x16 slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black, Silver |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 27215 |
Power
| Specification | Value |
|---|---|
| Power supply | 1300 W |
Certificates
| Specification | Value |
|---|---|
| Safety | 80Plus Titanium |
| Certification | CE, RoHS, DIN EN ISO 14001, DIN EN ISO 9001 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 710 mm |
| Height | 88 mm |
