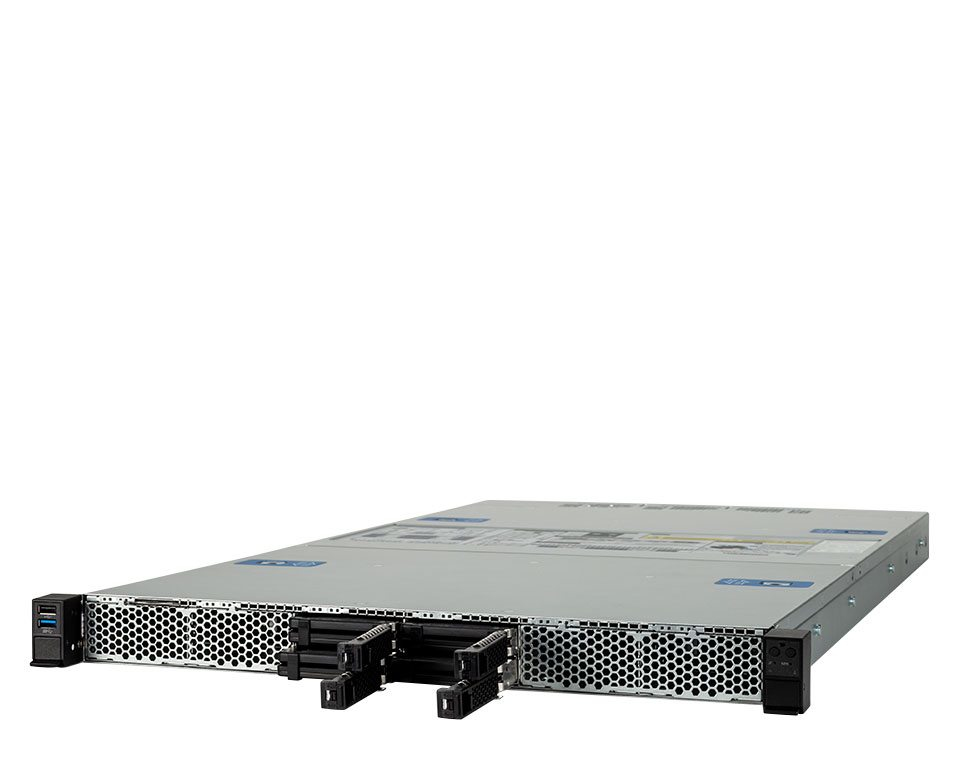

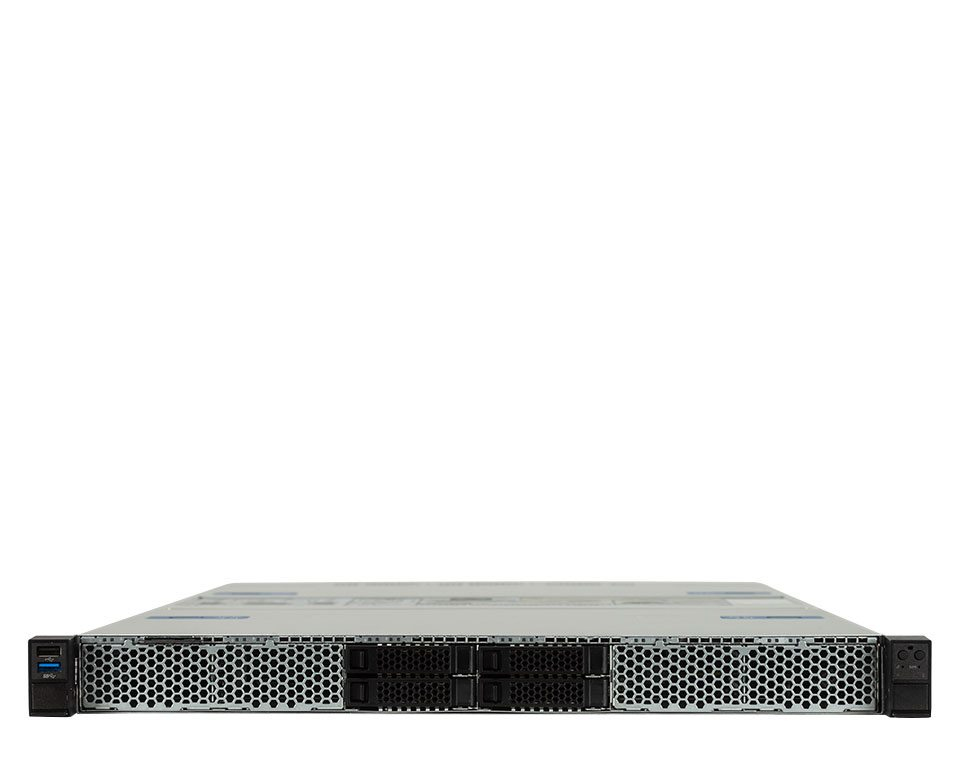

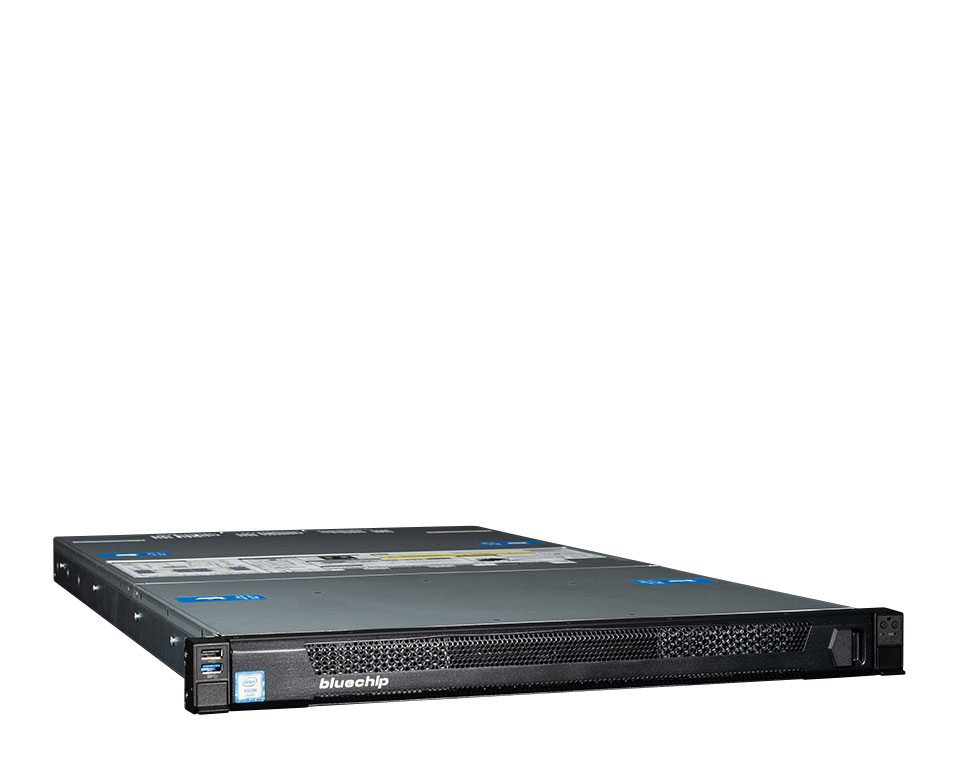

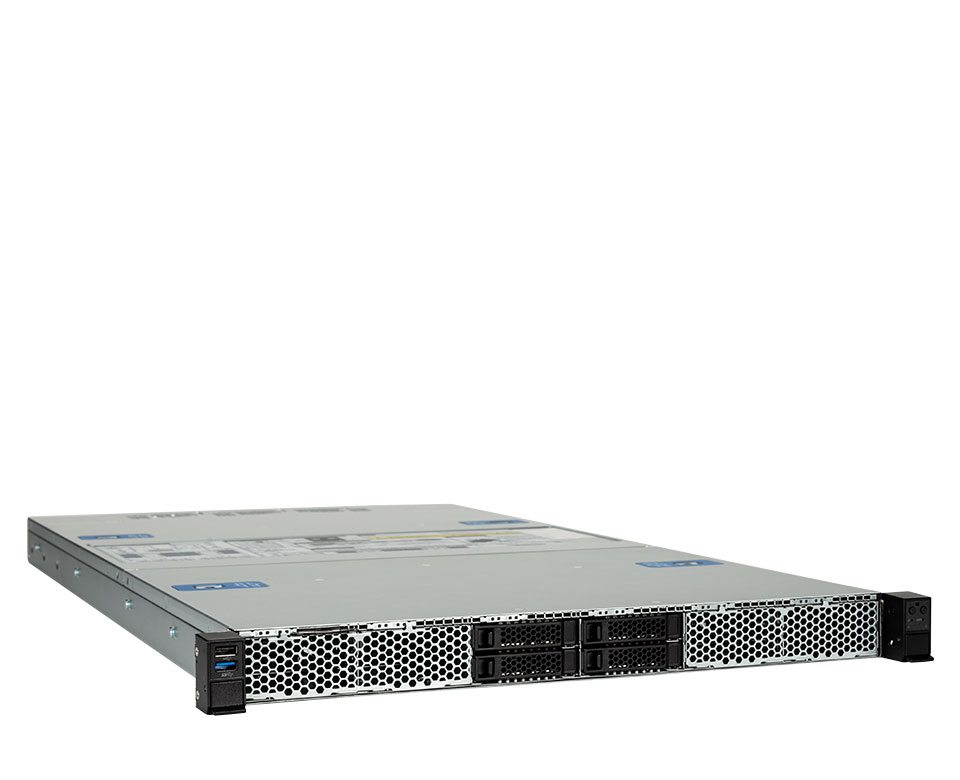

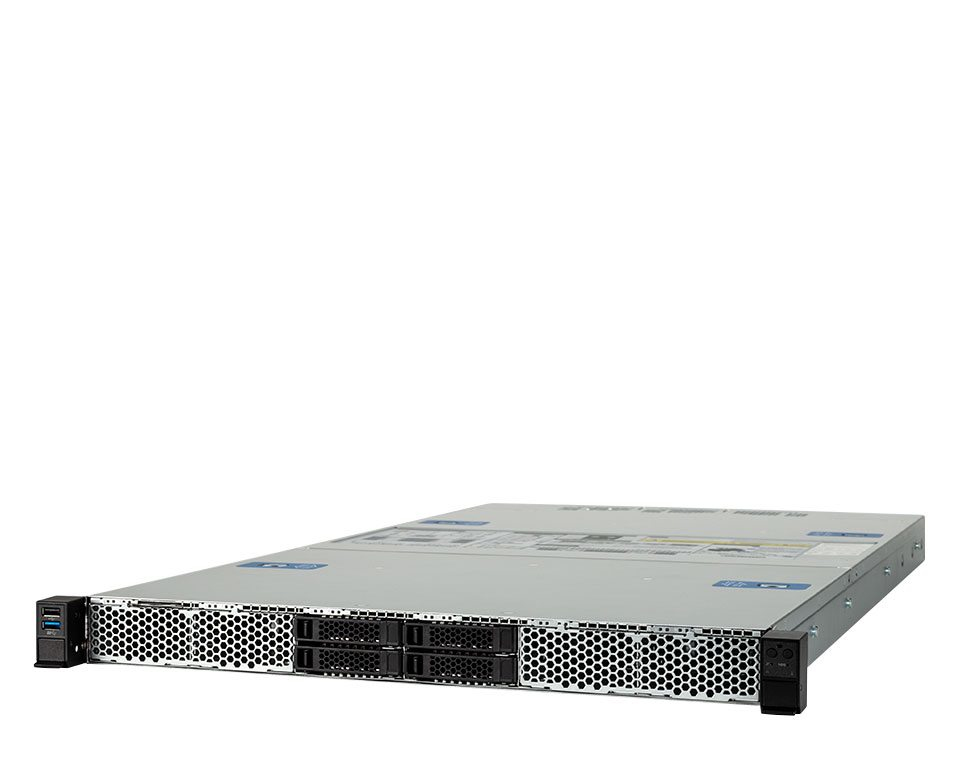

SERVERline R71202i+
Model SERVERline R71202i+Part no. 850392EAN 4250749703540
50 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R71202i+
- Part number
- 850392
- EAN / UPC
- 4250749703540
- Also known as
- bluechip SERVERline R71202i+
Specifications
50 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 2 |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 4189 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 32x DIMM |
| Maximum internal memory | 12 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-T2L |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 22 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 4.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1300 W |
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 781 mm |
| Height | 43 mm |
Technical details
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Intel M50CYP2SB1U |
