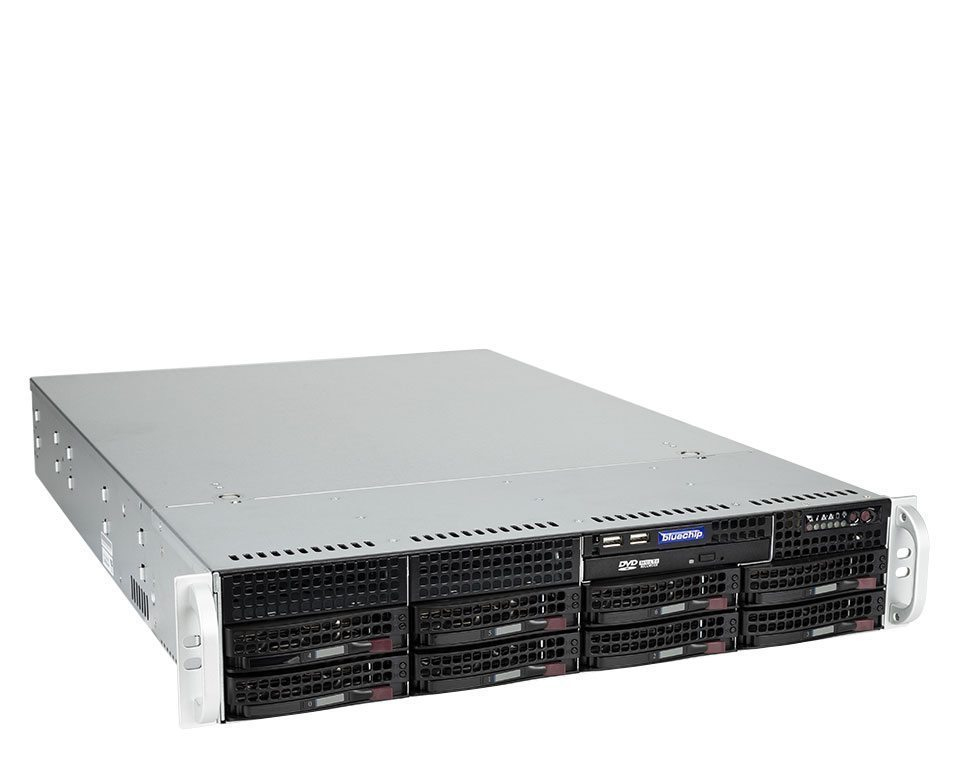

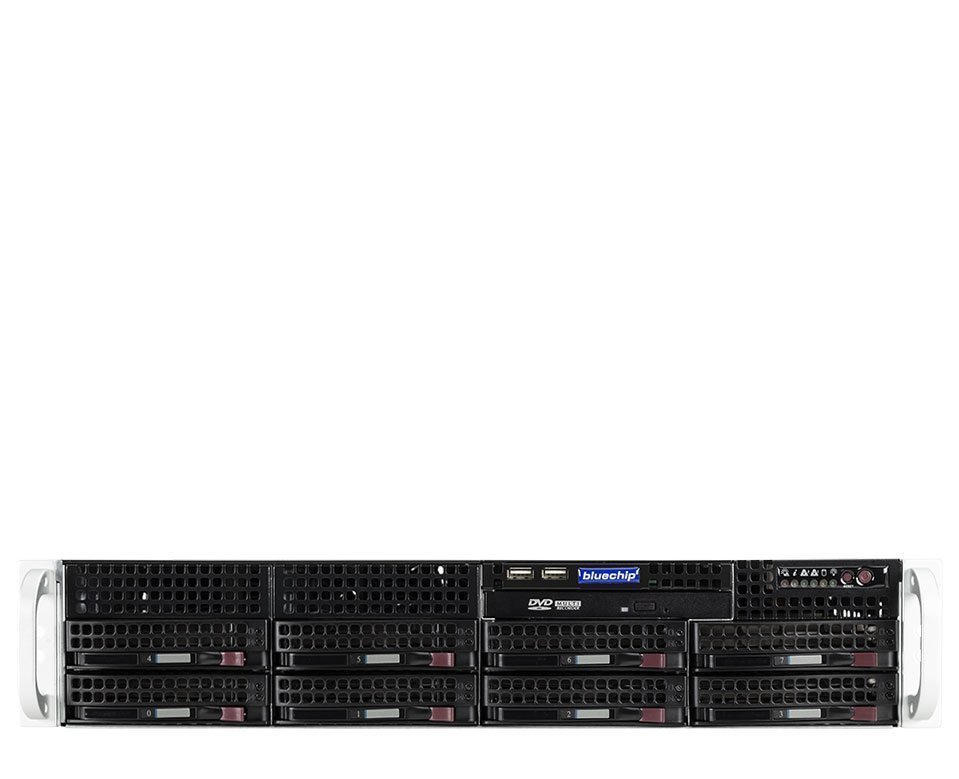

SERVERline R52305s
Model SERVERline R52305sPart no. 850289EAN 4250749709719
47 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage2 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 2 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R52305s
- Part numbers
- 850289, 850498, 850609
- EAN / UPC
- 4250749709719, 4250749705537, 4250749706671
- Also known as
- bluechip SERVERline R52305s
Specifications
47 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 12 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 1 |
| Processor socket | LGA 4189 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory slots | 16x DIMM |
| Maximum internal memory | 4 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Supported storage drive interfaces | Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 4 |
| PCI Express slots version | 4.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 89 mm |
| Height | 647 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro |
