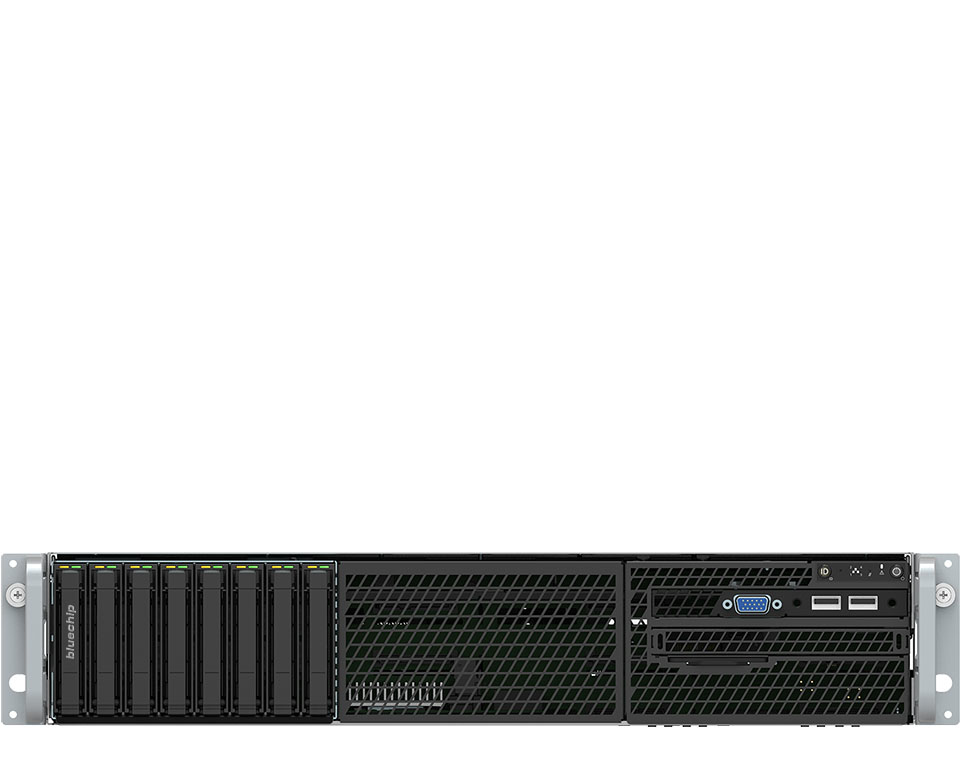

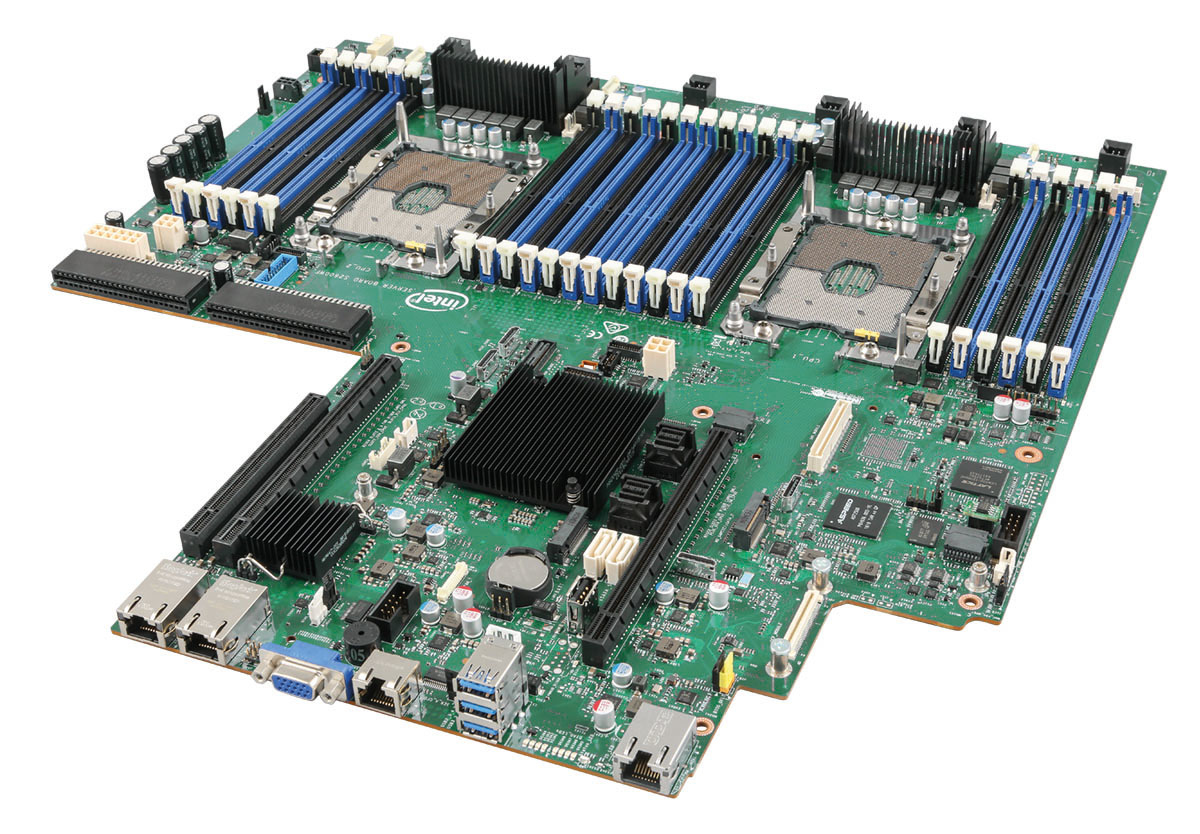

bluechip SERVERline R52206i

bluechip SERVERline R52206i

Model SERVERline R52206iPart no. 850229

65 specifications
  • ProcessorIntel® Xeon®
  • Memory192 GB
  • Storage480 GB
  • Processor manufacturerIntel
  • Ethernet LANYes
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Processor
Intel® Xeon®
Memory
192 GB
Storage
480 GB
Processor manufacturer
Intel
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Brand
bluechip
Category
Server
Model
SERVERline R52206i
Part number
850229
Also known as
bluechip SERVERline R52206i

Specifications

65 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon®
Processor generation1st Generation Intel® Xeon® Scalable
Processor model6130
Processor frequency2.1 GHz
Processor boost frequency3.7 GHz
Processor cores16
Processor cache22 MB
Memory channels supported by processorHepta
Number of processors installed2
Thermal Design Power (TDP)125 W
Processor cache typeL3
ECC supported by processorYes
Embedded options availableYes
Execute Disable BitYes
Maximum internal memory supported by processor768 GB
Maximum number of PCI Express lanes48
Memory clock speeds supported by processor2666 MHz
Memory types supported by processorDDR4-SDRAM
Number of QPI links3
Processor codenameSkylake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size76.0 x 56.5 mm
Processor socketLGA 3647 (Socket P)
Processor threads32
ScalabilityS4S
Supported instruction setsAVX, AVX 2.0, AVX-512, SSE4.2
Tcase87 °C
Conflict-Free processorYes

Memory

Internal memory192 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz

Storage

Total storage capacity480 GB
Number of SSDs installed2
SSD capacity240 GB
RAID supportYes
RAID levels0, 1, 10
Supported storage drive interfacesSerial ATA

Network

Ethernet LANYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
VGA (D-Sub) ports quantity2

Expansion slots

PCI Express x8 (Gen 3.x) slots4
PCI Express x16 (Gen 3.x) slots4
PCI Express slots version3.0

Design

Chassis typeRack (2U)
Rack mountingYes

Processor special features

Enhanced Intel SpeedStep TechnologyYes
Intel 64Yes
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Processor ARK ID120492

Power

Power supply1300 W

Weight & dimensions

Width577 mm
Depth983 mm
Height87.3 mm
