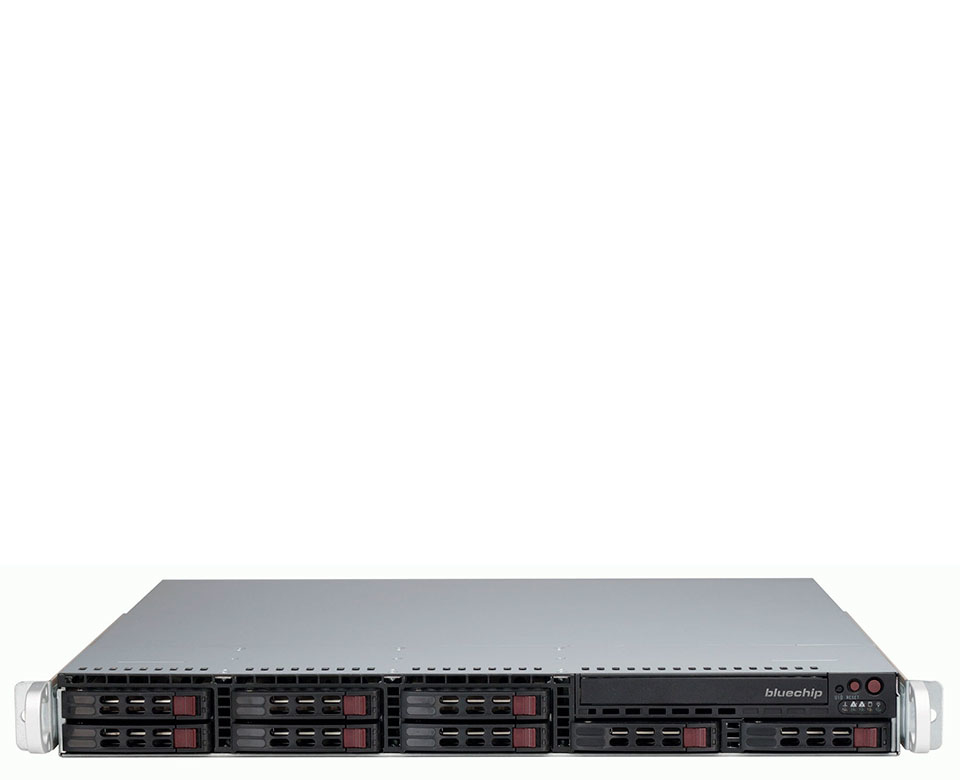

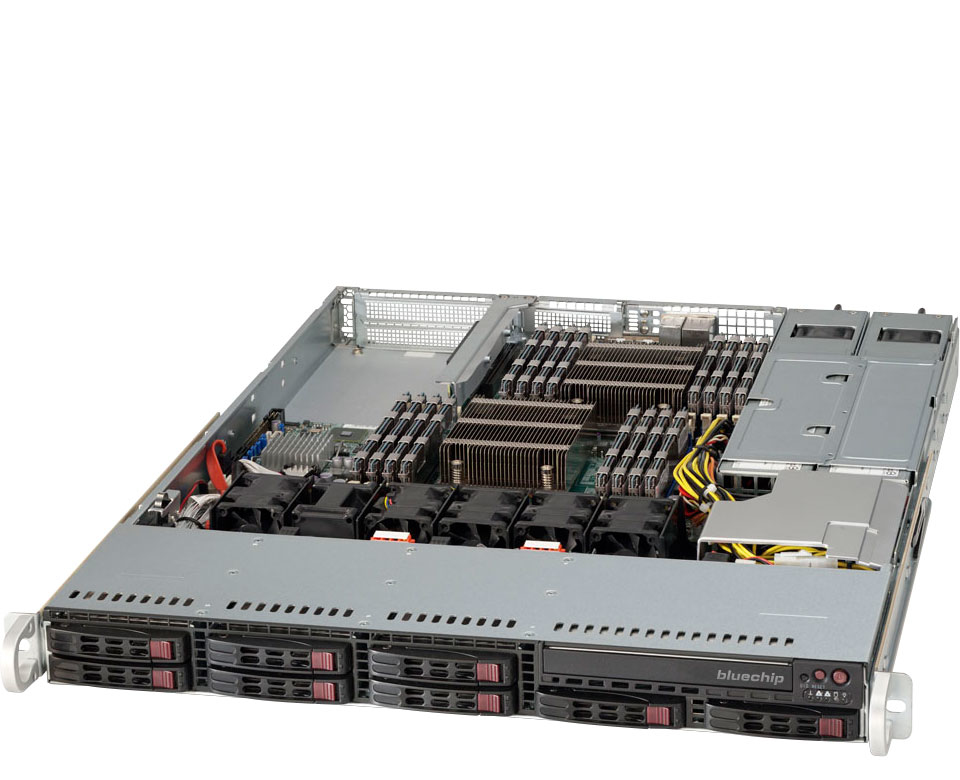

bluechip SERVERline R51201s

Model SERVERline R51201sPart no. 850202

90 specifications

Overview

90 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2603V4
Processor frequency	1.7 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C612
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	6.4 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	1.53 TB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	59.7 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR2P0
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	45 x 52.5 mm
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	6
Scalability	2S
Stepping	R0
Supported instruction sets	AVX 2.0
Tcase	73 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Specification	Value
Total storage capacity	600 GB
Number of HDDs installed	2
HDD capacity	600 GB
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
HDD speed	10000 RPM
HDD size	2.5"
Number of HDDs supported	8
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60
Hot-swap	Yes

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Aspeed AST2400

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Rack

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	92993

Specification	Value
Power supply	700 W
