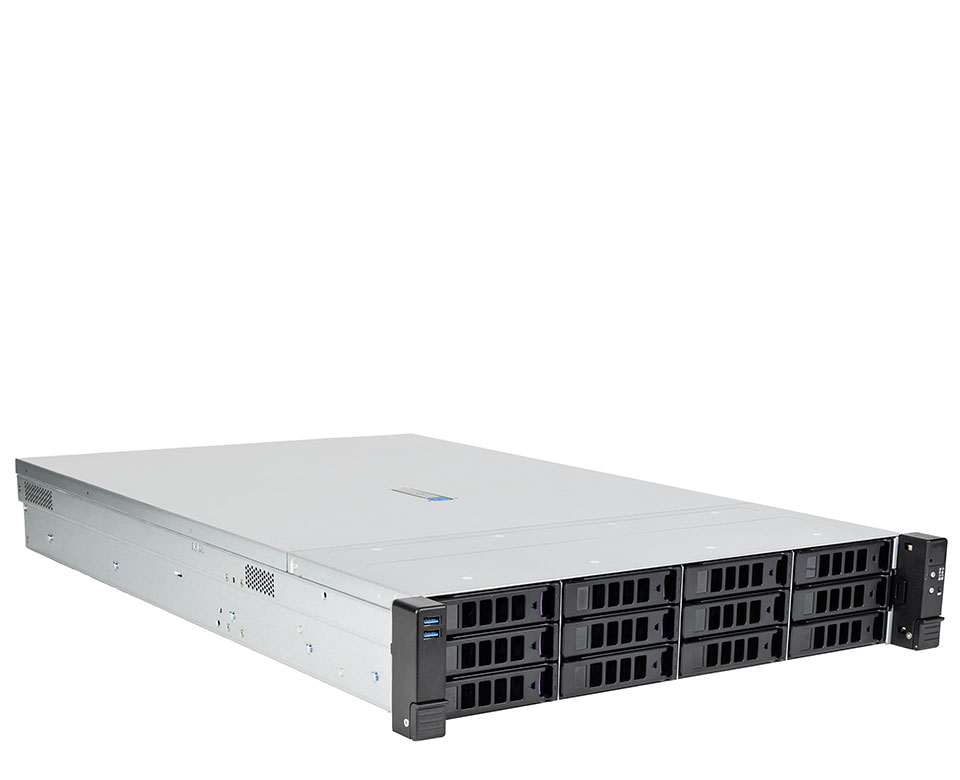

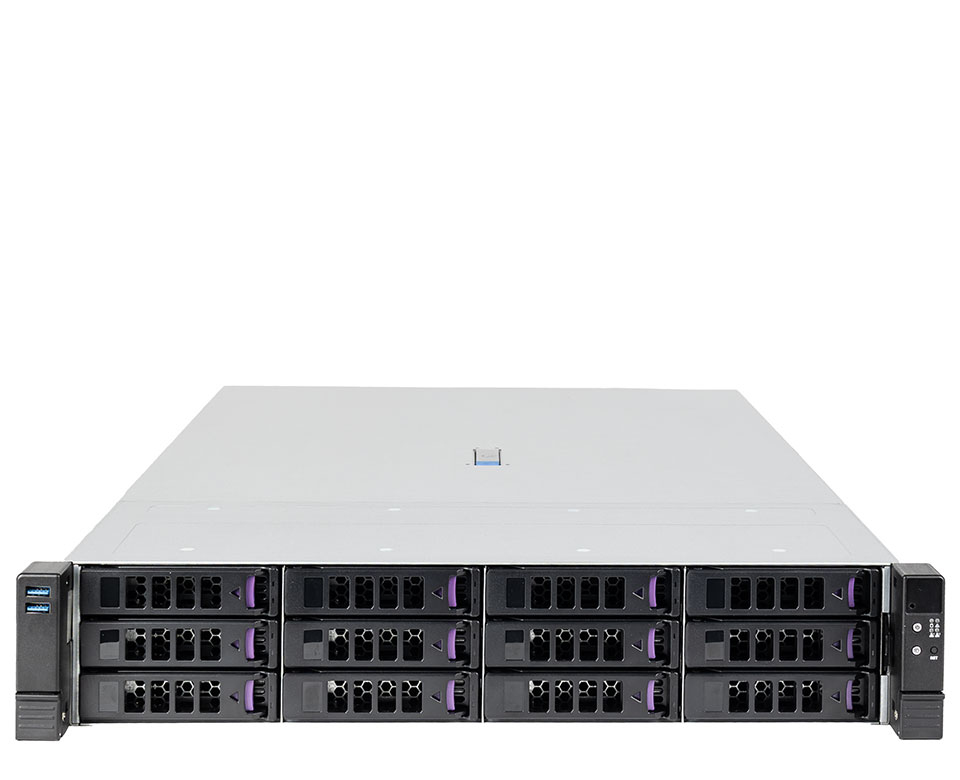

SERVERline R42319r
Model SERVERline R42319rPart no. 850673EAN 4250749711552
48 specifications
- ProcessorIntel Xeon 6
- Memory16 GB
- Storage1.92 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon 6
- Memory
- 16 GB
- Storage
- 1.92 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R42319r
- Part number
- 850673
- EAN / UPC
- 4250749711552
- Also known as
- bluechip SERVERline R42319r 2HE Rack, Intel® Xeon® 6511P Prozessor / bis zu 4.20 GHz, 32 GB DDR5, 2 × 480 GB 2,5" SSD, Avago 9600-16i, TPM-Modul, 4 x RJ45 (2 ×
Specifications
48 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Processor model | 6511P |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor cores | 16 |
| Processor cache | 72 MB |
| Thermal Design Power (TDP) | 150 W |
| Processor socket | LGA 4710 |
| Processor threads | 32 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 6400 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 8x DIMM |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | No |
| Hot-swap | Yes |
| Internal drive bays | 12 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel I210, Intel I710-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 7 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 720 mm |
| Height | 87 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" / 3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASRock Rack GNRD8-2L2T incl. TPM module |
