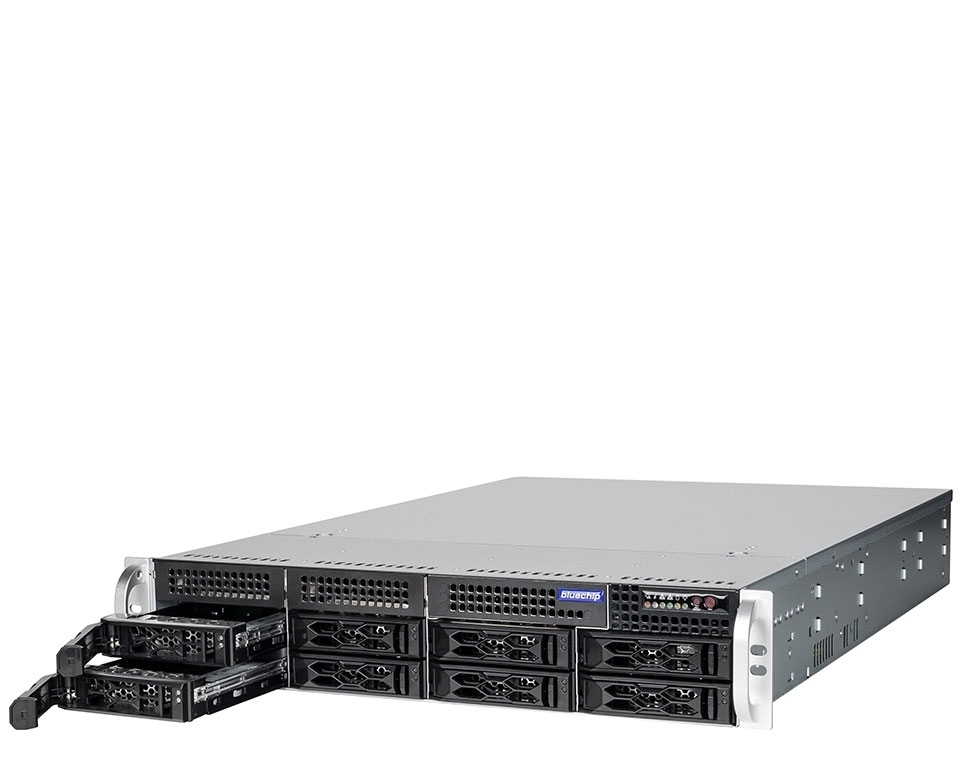

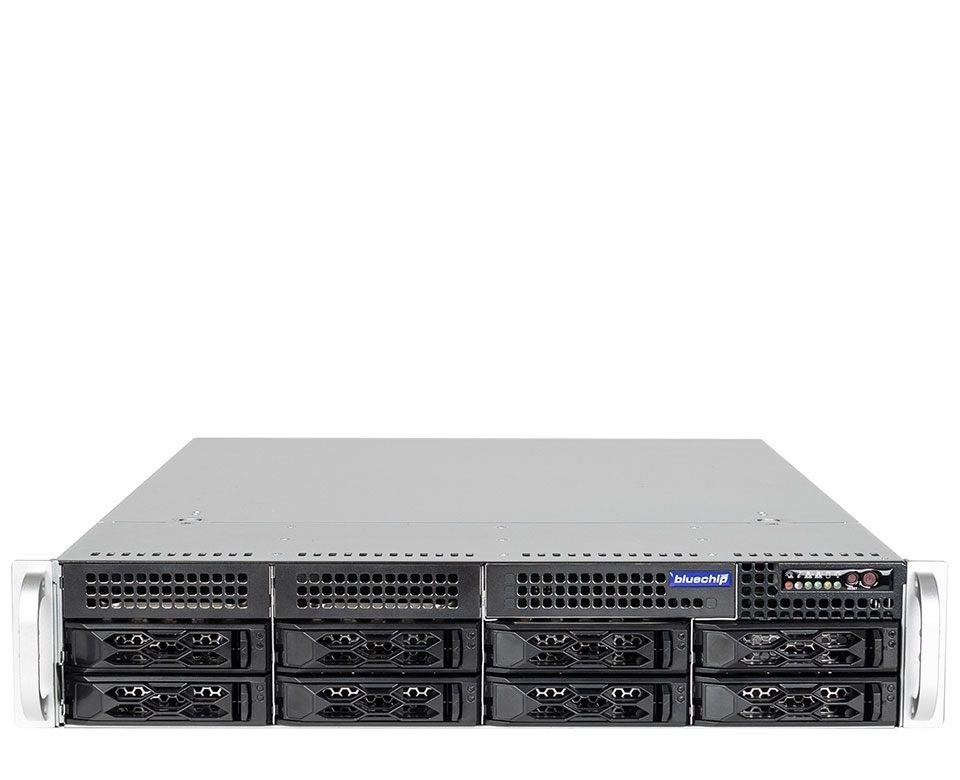

SERVERline R42316s
Model SERVERline R42316sPart no. 850619EAN 4250749709887
55 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage1.92 TB
- OSNo
- ColourBlack, Silver
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 1.92 TB
- OS
- No
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R42316s
- Part number
- 850619
- EAN / UPC
- 4250749709887
- Also known as
- bluechip SERVERline R42316s 2 HE Rack, Intel® Xeon® Silver 4410Y Prozessor / 2.00 GHz, TPM-Modul, 32 GB DDR5, 2 x 960 GB SSD, 2 x 10 Gigabit Ethernet
Specifications
55 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor model | 4410Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Processor socket | LGA 4677 (Socket E) |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4000 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 8x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | Intel RSTe |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 650 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 647 mm |
| Height | 89 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (rear) | 2,5"/3,5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro X13SEI-TF incl. TPM module |
