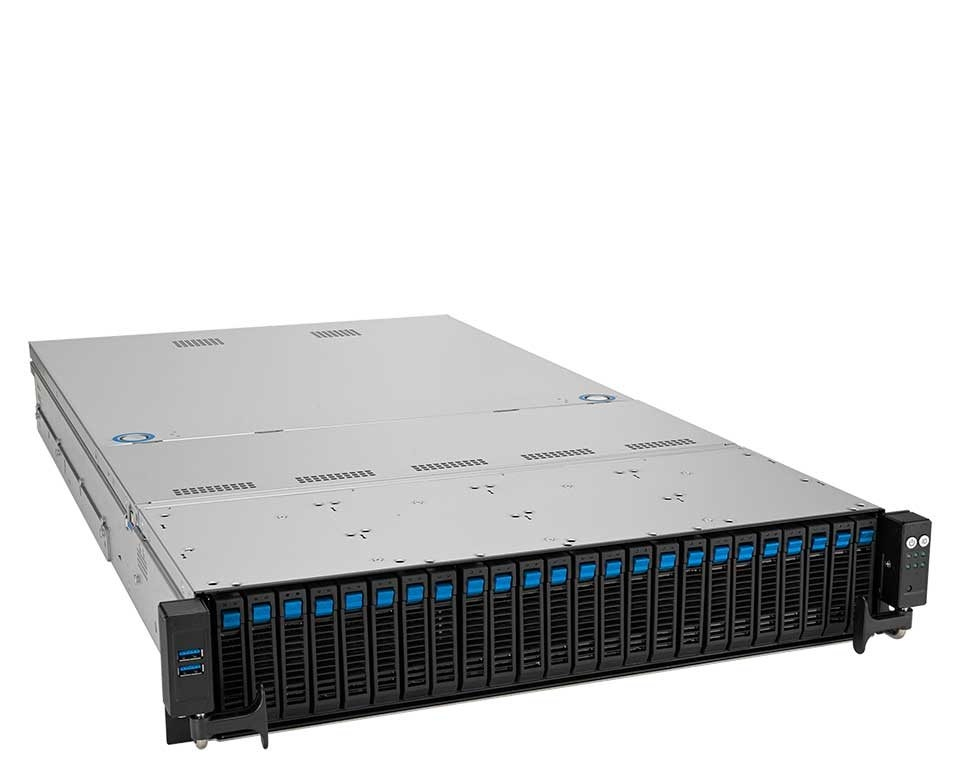

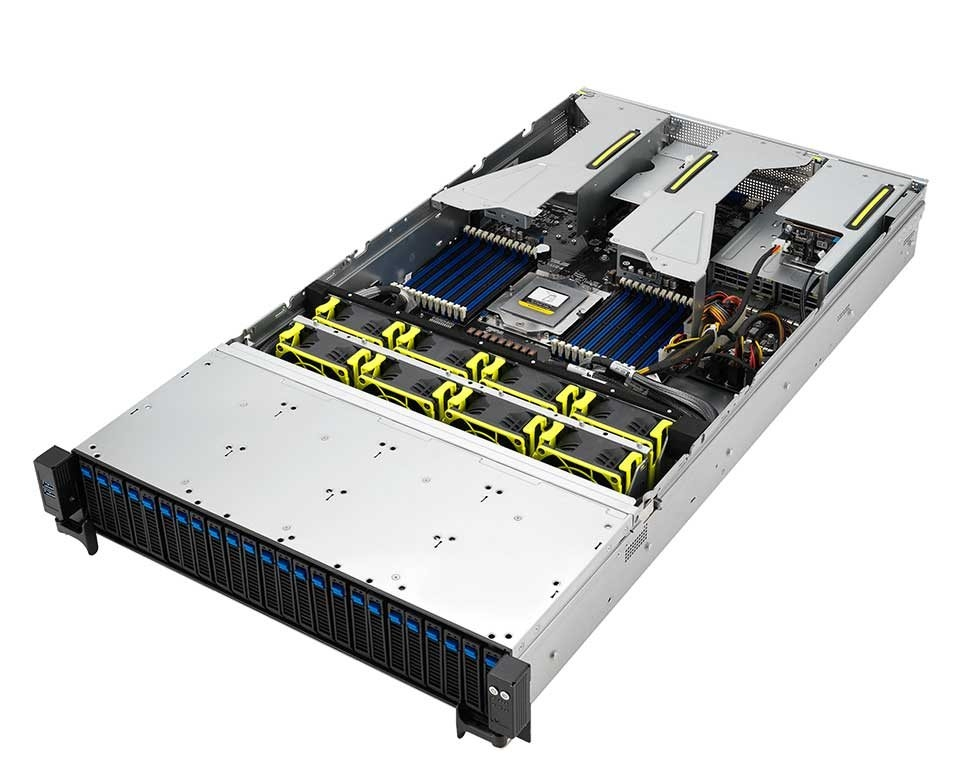

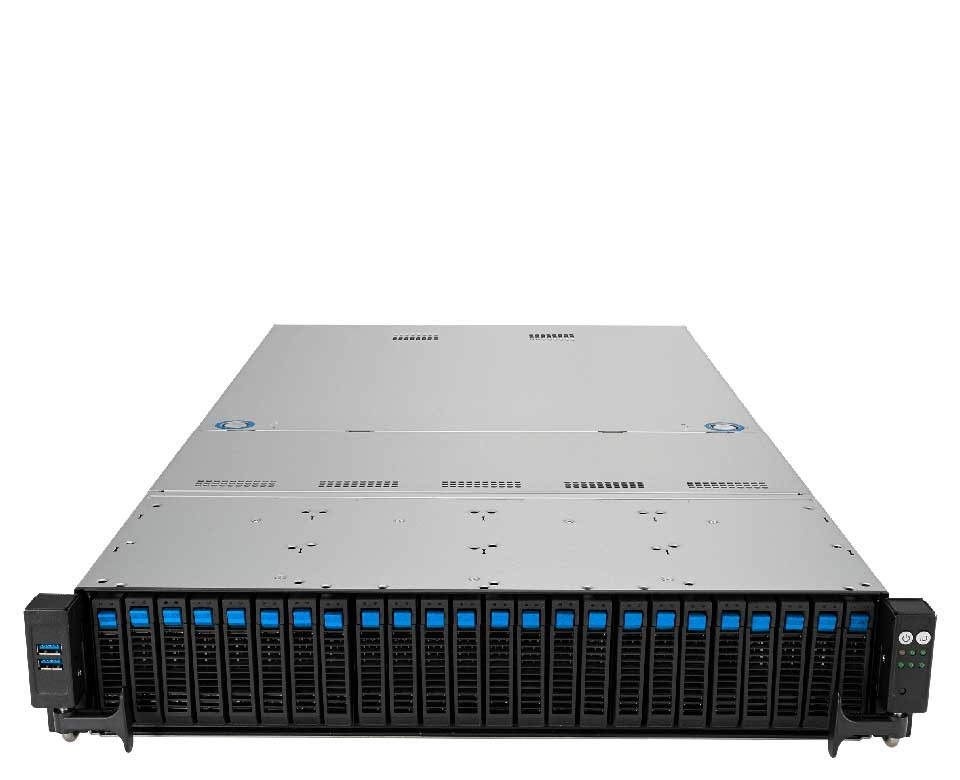

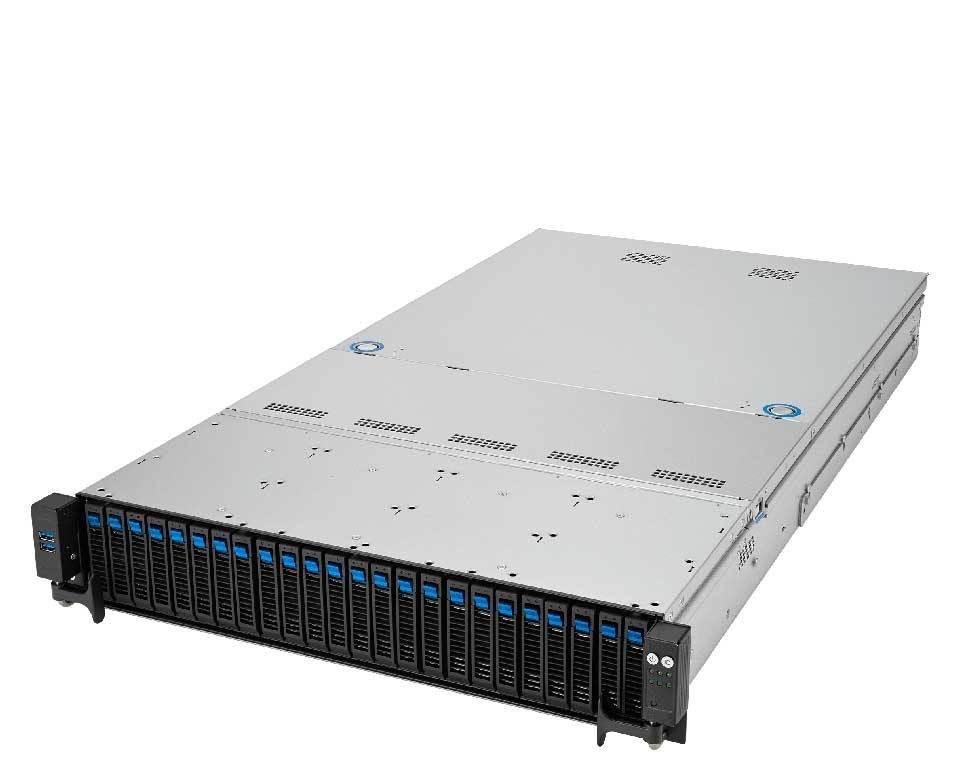

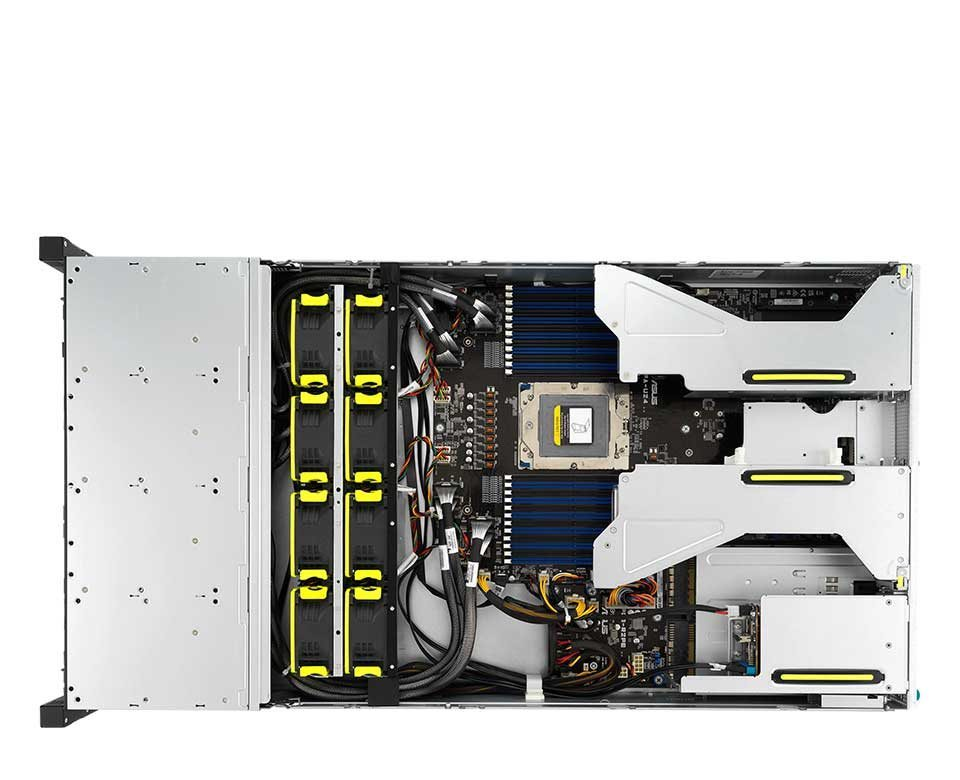

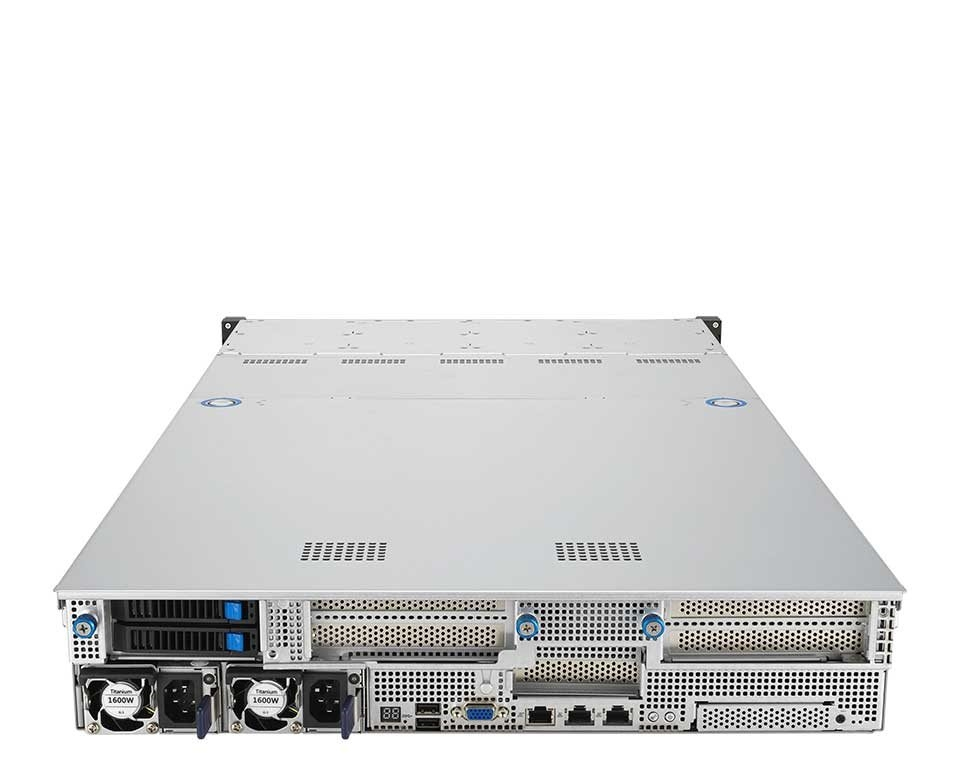

SERVERline R42203a *ASHCI*
Model SERVERline R42203a *ASHCI*Part no. 850492EAN 4250749706466
56 specifications
- ProcessorAMD EPYC
- Memory64 GB
- Storage8.64 TB
- OSWindows Server 2022 Datacenter
- ColourBlack, Silver
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 64 GB
- Storage
- 8.64 TB
- OS
- Windows Server 2022 Datacenter
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R42203a *ASHCI*
- Part number
- 850492
- EAN / UPC
- 4250749706466
- Also known as
- bluechip SERVERline R42203a *ASHCI* 2HE Rack, Windows Server 2022 Datacenter, AMD EPYC™ 9124 Prozessor / 3.00 GHz, 64 GB DDR5, Broadcom® MegaRAID™ 9540-2M2, 2 x
Specifications
56 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
| Processor socket | Socket SP5 |
| Processor threads | 32 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 6 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 8.64 TB |
| Number of SSDs installed | 6 |
| SSD capacity | 8.64 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD size | 2.5", M.2 |
| RAID support | Yes |
| Supported RAID controllers | Broadcom MegaRAID 9540-2M2 |
| Hot-swap | Yes |
| Internal drive bays | 26 |
| Optical drive type | No |
| Supported storage drive interfaces | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I350, Broadcom P225p |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| SFP/SFP+ slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Datacenter |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449 mm |
| Depth | 840 mm |
| Height | 88 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (rear) | 2.5"/3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS KMPA-U16 |
