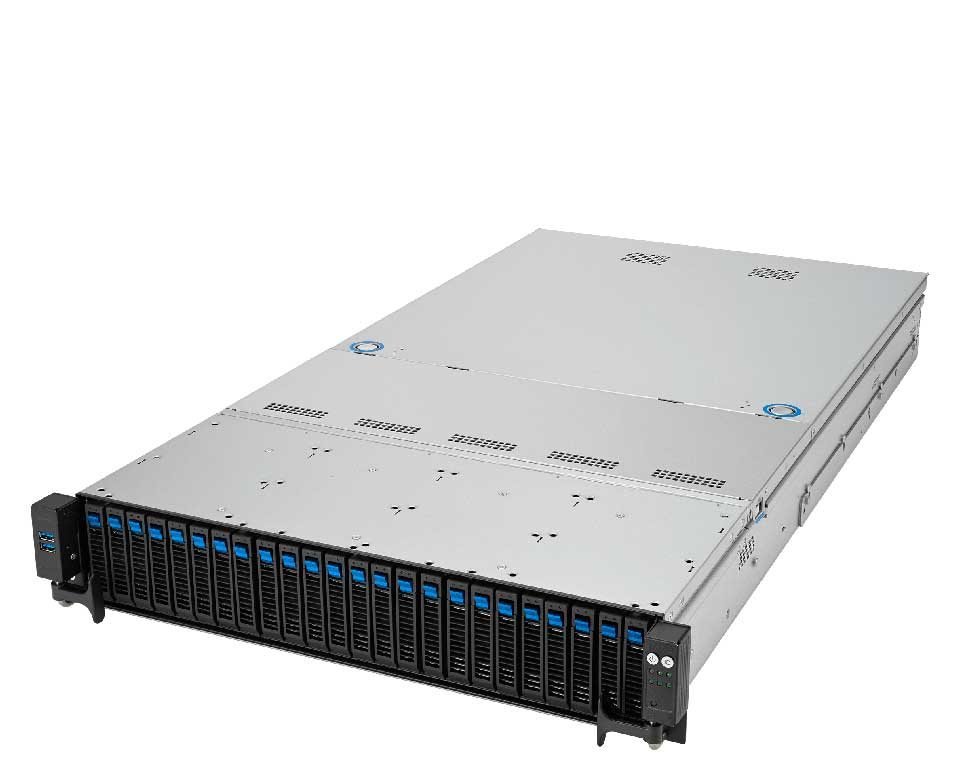

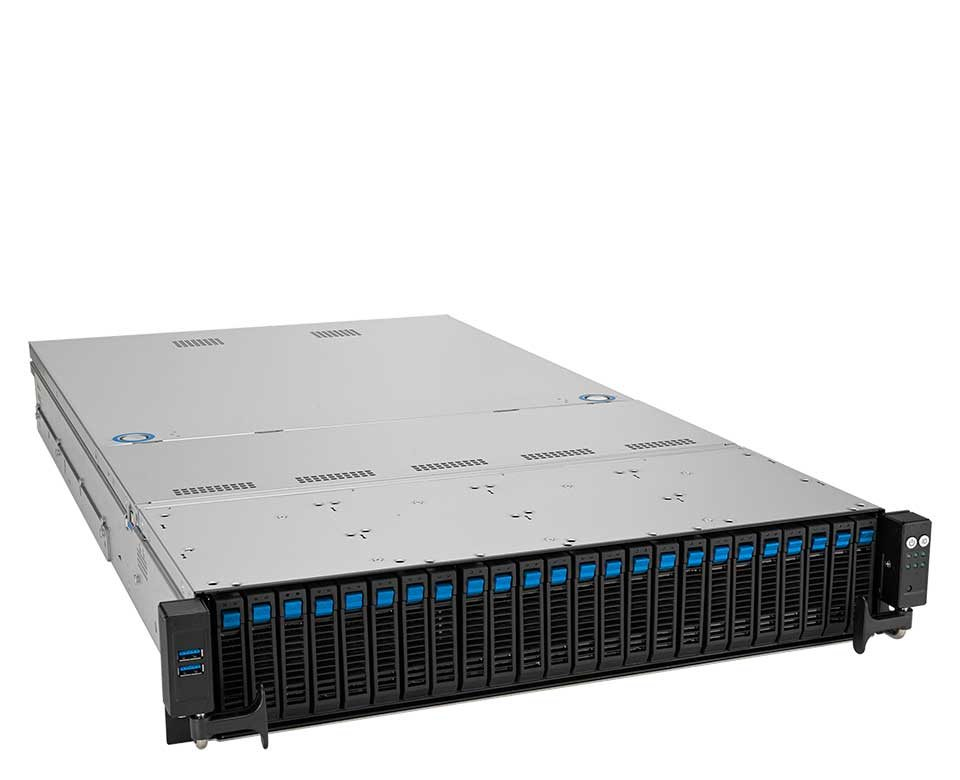

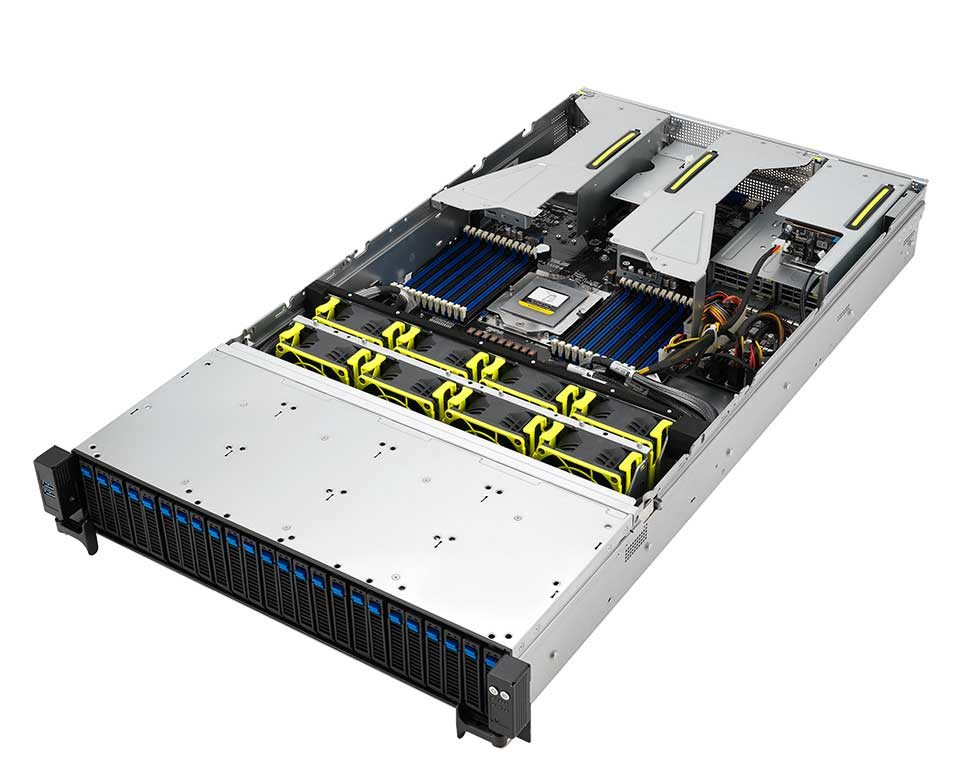

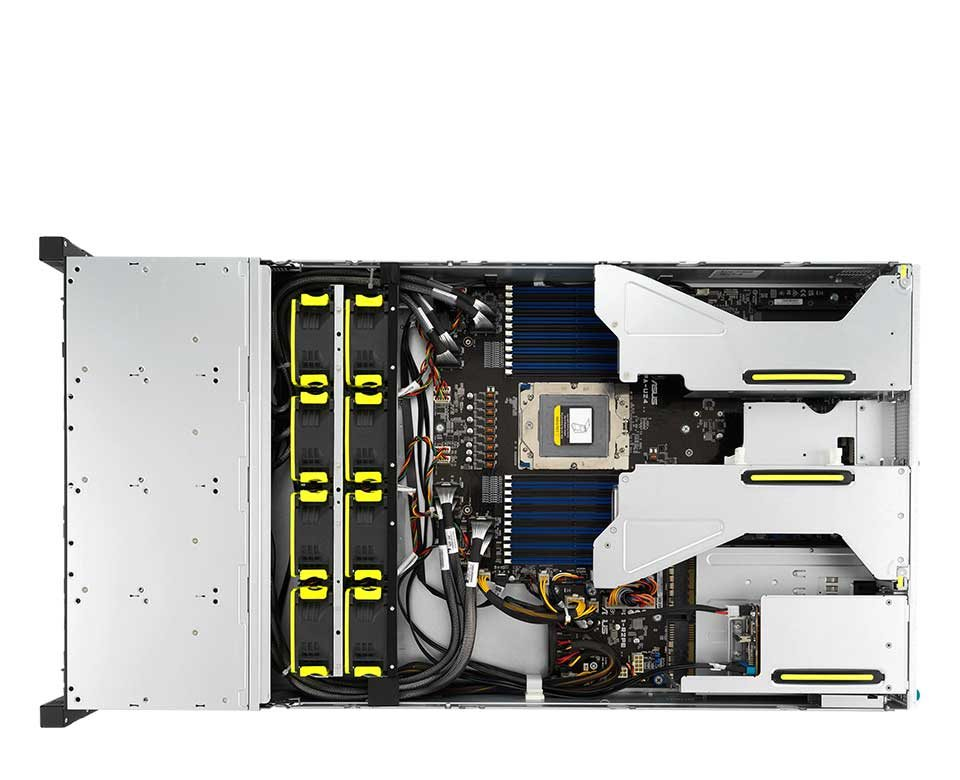

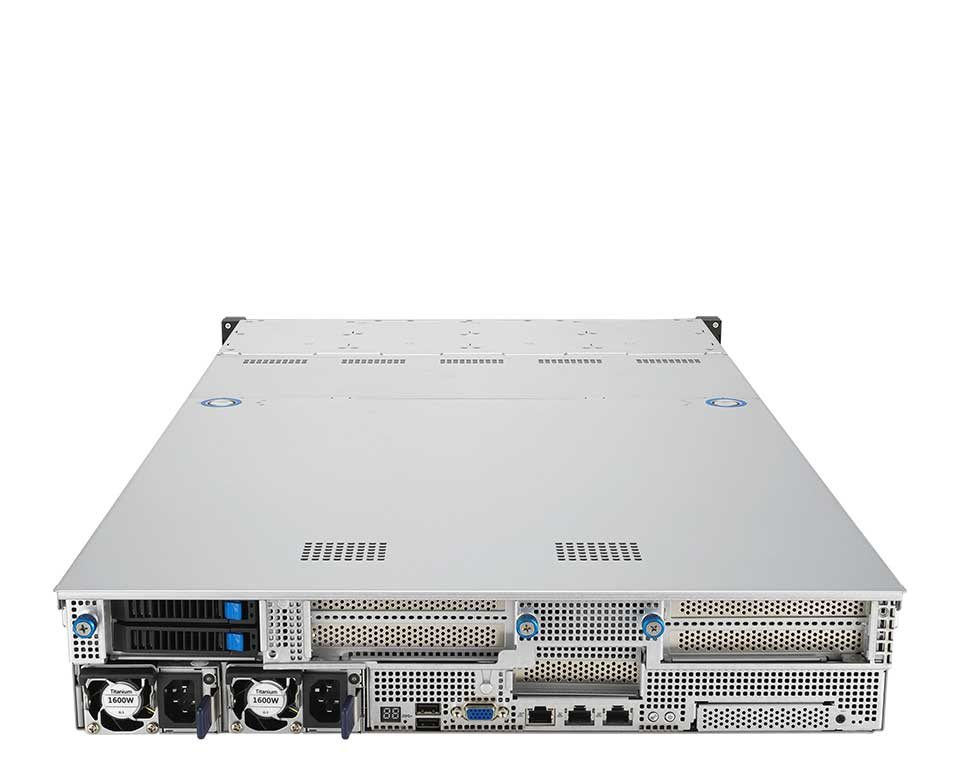

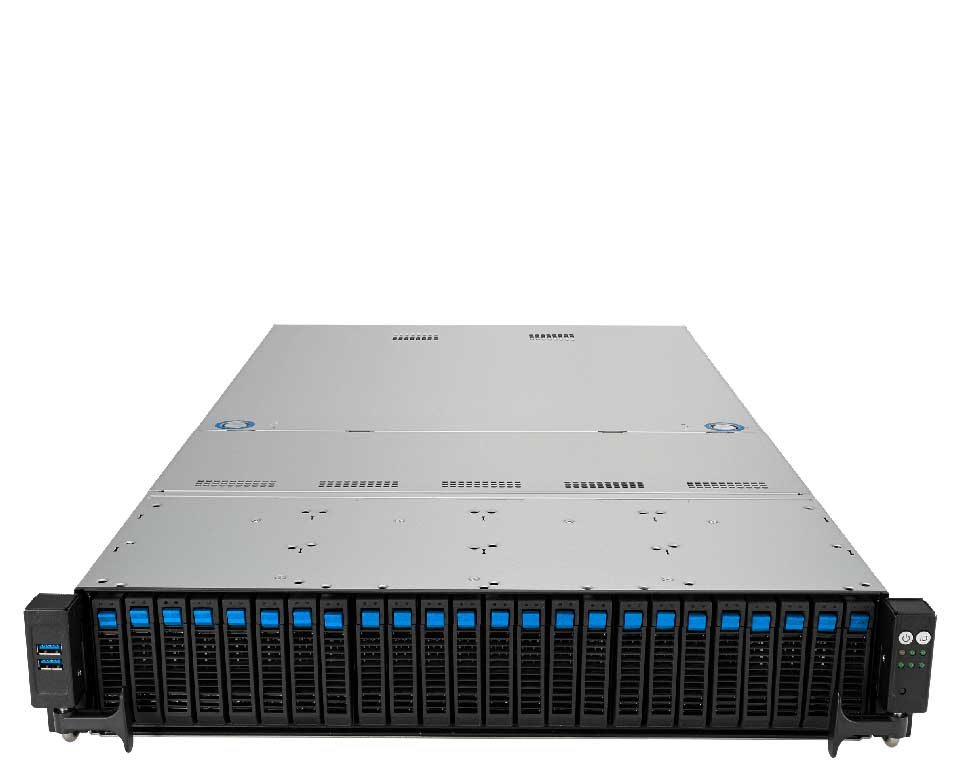

SERVERline R42203a
Model SERVERline R42203aPart no. 850491EAN 4250749706381
48 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage480 GB
- ColourBlack, Silver
- Processor manufacturerAMD
- On-board graphics cardYes
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 480 GB
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R42203a
- Part number
- 850491
- EAN / UPC
- 4250749706381
- Also known as
- bluechip SERVERline R42203a
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
| Processor socket | Socket SP5 |
| Processor threads | 32 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 6 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs supported | 24 |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 26 |
| RAID support | No |
| Hot-swap | Yes |
| Optical drive type | No |
| Supported storage drive interfaces | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
| Number of redundant power supplies installed | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449 mm |
| Depth | 840 mm |
| Height | 88 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASUS |
