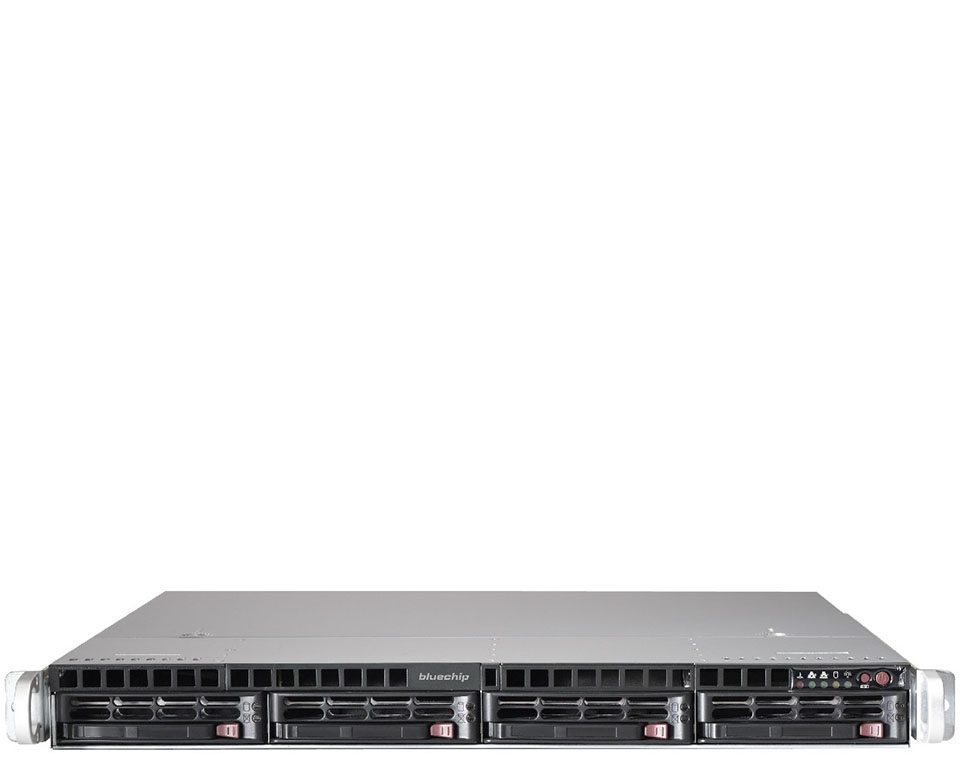

SERVERline R41308s
Model SERVERline R41308sPart no. 850589EAN 4250749708743
47 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage960 GB
- ColourBlack, Silver
- Processor manufacturerAMD
- On-board graphics cardYes
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 960 GB
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R41308s
- Part number
- 850589
- EAN / UPC
- 4250749708743
- Also known as
- bluechip SERVERline R41308s 1HE Rack, AMD EPYC™ 9124 Prozessor / bis zu 3.70 GHz, 32 GB DDR5, 2 x 480 GB SSD, 2 x 10 Gigabit Ethernet
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
| Processor socket | Socket FP5 |
| Processor threads | 32 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom BCM57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (rear) | 2.5"/3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro H13SSL-NT |
