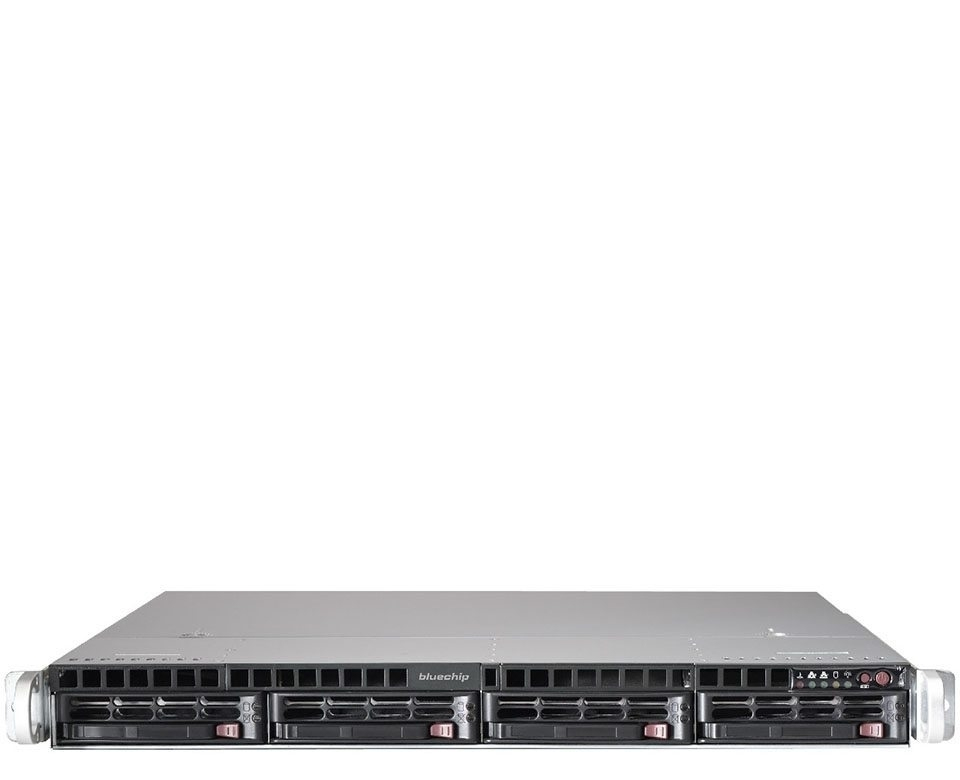

SERVERline R41306s
Model SERVERline R41306sPart no. 850478EAN 4250749706251
57 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage2 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 2 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R41306s
- Part numbers
- 850478, 850517
- EAN / UPC
- 4250749706251, 4250749706916
- Also known as
- bluechip SERVERline R41306s
Specifications
57 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4410Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Configurable TDP-down | 4.5 W |
| Bus type | OPI |
| Processor socket | LGA 4677 (Socket E) |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 1, 5, 10 |
| Supported RAID controllers | Intel RSTe |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X550 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI version | 0.00 |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro |
