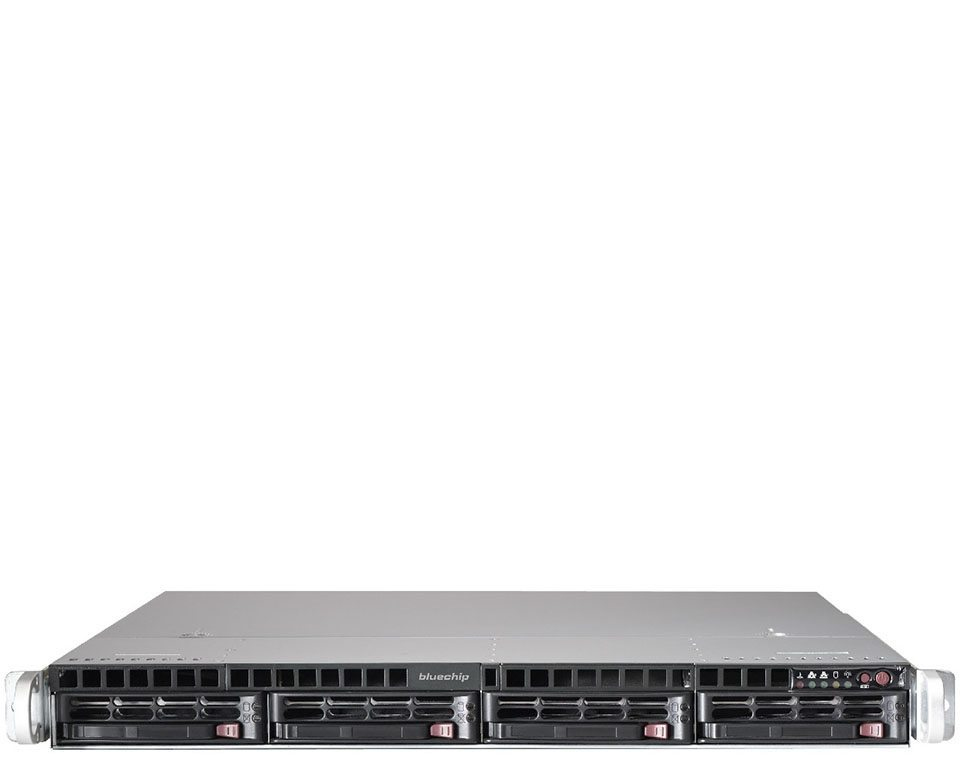

SERVERline R41303s
Model SERVERline R41303sPart no. 850640EAN 4250749707104
53 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage1.92 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 1.92 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R41303s
- Part numbers
- 850640, 850418, 850530
- EAN / UPC
- 4250749707104, 4250749710517, 4250749704271
- Also known as
- bluechip SERVERline R41303s 1 HE Rack, Intel® Xeon® Silver 4310 Prozessor / bis zu 3.30 GHz, 32 GB DDR4, 2 x 960 GB SSD, 2 x Gigabit Ethernet, DVD±RW
Specifications
53 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 12 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel C621A |
| Number of processors installed | 1 |
| Processor socket | LGA 4189 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported RAID controllers | Intel RSTe |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 3 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5"/3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro X12SPL-F |
